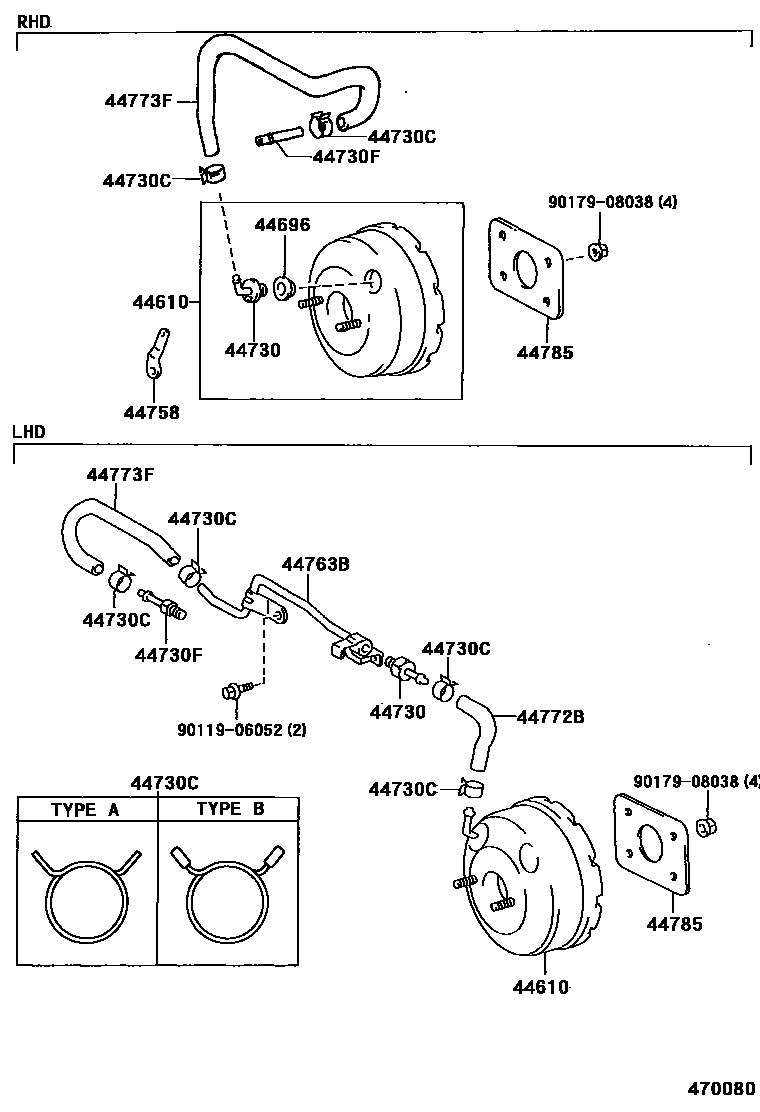

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-10370iEL54..RHD199605-199705

main44610-16510iEL54..LHD..EUR199512-199705

main44610-16550iEL54..RHD199508-199605

main44610-16580iEL54..GEN199508-199702

main44610-16620iEL54..RHD..EUR199705

main44610-16630iEL54..LHD199705

44696GROMMET, CHECK VALVE

main90480-24439iEL54..RHD199508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iEL54..LHD199508

main44730-42010iEL54..RHD199508

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iEL54..GEN199508-199512

main90467-16024iEL54..LHD199512

TYPE B:REFER TO ILLUSTRATION

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90406-09006iEL54199508

44758BRACKET, VACUUM CHECK VALVE

main44758-16090iEL54..RHD199508

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-16050iEL54..LHD199508

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16150iEL54..LHD199508

44773FHOSE, UNION TO CHECK VALVE

main44773-16150iEL54..RHD199508

main44773-16160iEL54..LHD199508

44785GASKET, BRAKE BOOSTER

main44785-16020iEL54199508

9011906052

main90119-06052

9017908038

main90179-08038

12 parts on this diagram · 1 diagram in section
