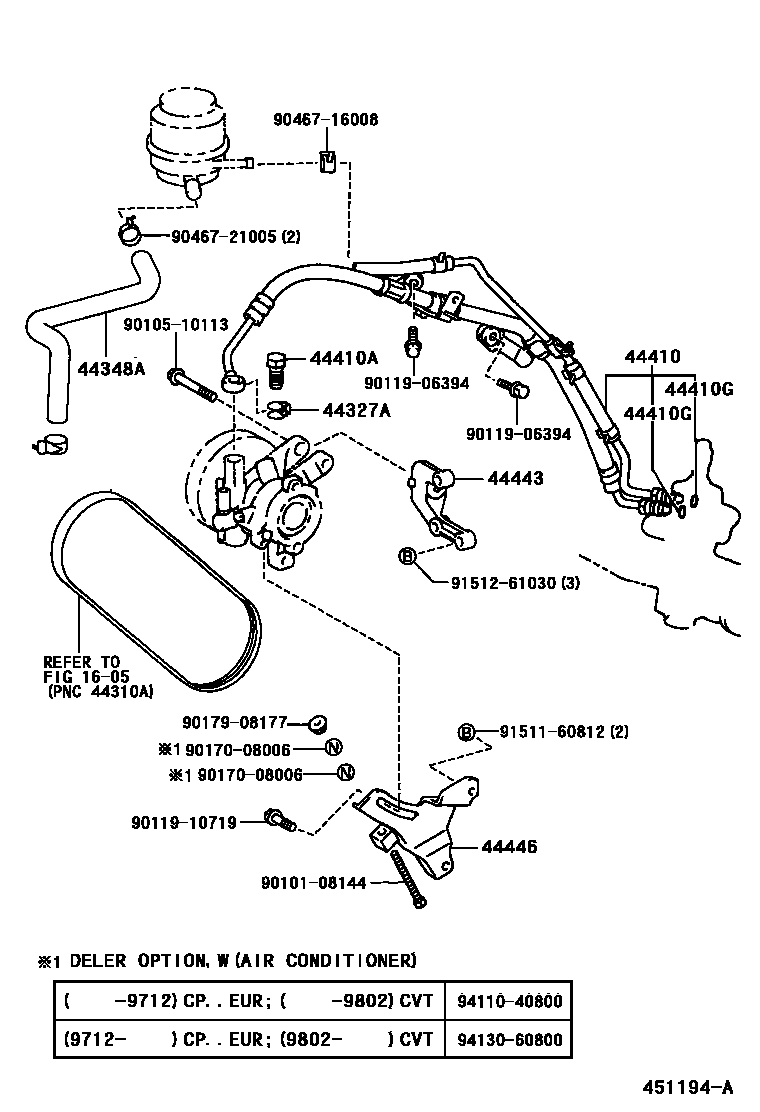

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL54199508

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10051iEL54..RHD199508-199704

main44348-16150iEL54..LHD199508

main44348-46010iEL54..RHD199704

44410TUBE ASSY, PRESSURE FEED

main44410-16250iEL54..RHD199508-199704

main44410-16260iEL54..LHD..MTM199508-199610

main44410-16270iEL54..ATM..GEN199508-199610

main44410-16330iEL54..ATM..GEN199610-199702

main44410-16360iEL54..LHD..MTM199610-199712

main44410-16400iEL54..LHD..CP199712-199802

main44410-46010iEL54..RHD199704

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iEL54199508

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEL54..RHD199508

44443BRACKET, PUMP

main44443-10030iEL54199508

44446STRUT, ADJUSTING

main44446-16051iEL54199508

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721005

main90467-21005

9151160812

main91511-60812

9151261030

main91512-61030

9411040800

main94110-40800

9413060800

main94130-60800

20 parts on this diagram · 3 diagrams in section
