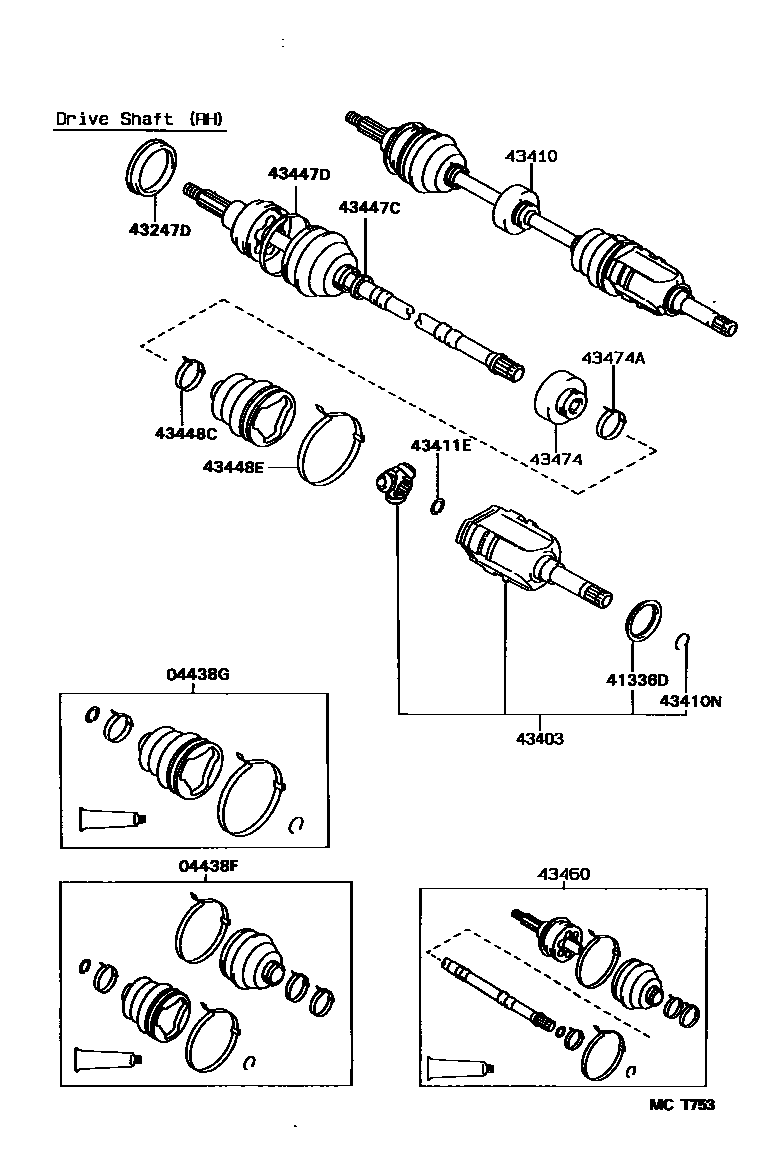

FRONT DRIVE SHAFT

0001 1W/O(ABS) 0002 1W(ABS) 0003 1W/O(ABS) 0004 1W(ABS)

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-16080iEL54199508-199907

sub04438-16081

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-16070iEL54199508-199907

sub04438-16071

main04438-16090iEL54..ARL,EUR199508-199608

W(ABS)

sub04438-16091

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iEL54199508-199802

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-16040iEL54199508

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEL54199508-199903

sub43403-10011

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16190iEL54199508-199709

sub43410-16191

sub90178-22001

main43410-16191iEL54199709

sub43410-16290

main43410-16200iEL54..ARL,EUR199508-199709

W(ABS)

sub43410-16201

sub90178-22001

main43410-16201iEL54199709

W(ABS)

sub43410-16300

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iEL54199508

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iEL54199508

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16010iEL54..CVT199508-199802

ID=32.7

main42345-16010iEL54199802

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020iEL54199508

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iEL54199508-199802

ID=32.7

main42345-16010iEL54199802

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16080iEL54199508

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19615iEL54..ARL,EUR199508-199709

W(ABS)

sub43460-19616

sub90178-22001

main43460-19616iEL54199709

W(ABS)

sub43460-80078

sub43474-52030

main43460-19625iEL54199508-199709

sub43460-19626

sub90178-22001

main43460-19626iEL54199709

sub43460-80077

43474DAMPER, DRIVE SHAFT

main43474-20050iEL54199508

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iEL54199508

15 parts on this diagram · 4 diagrams in section
