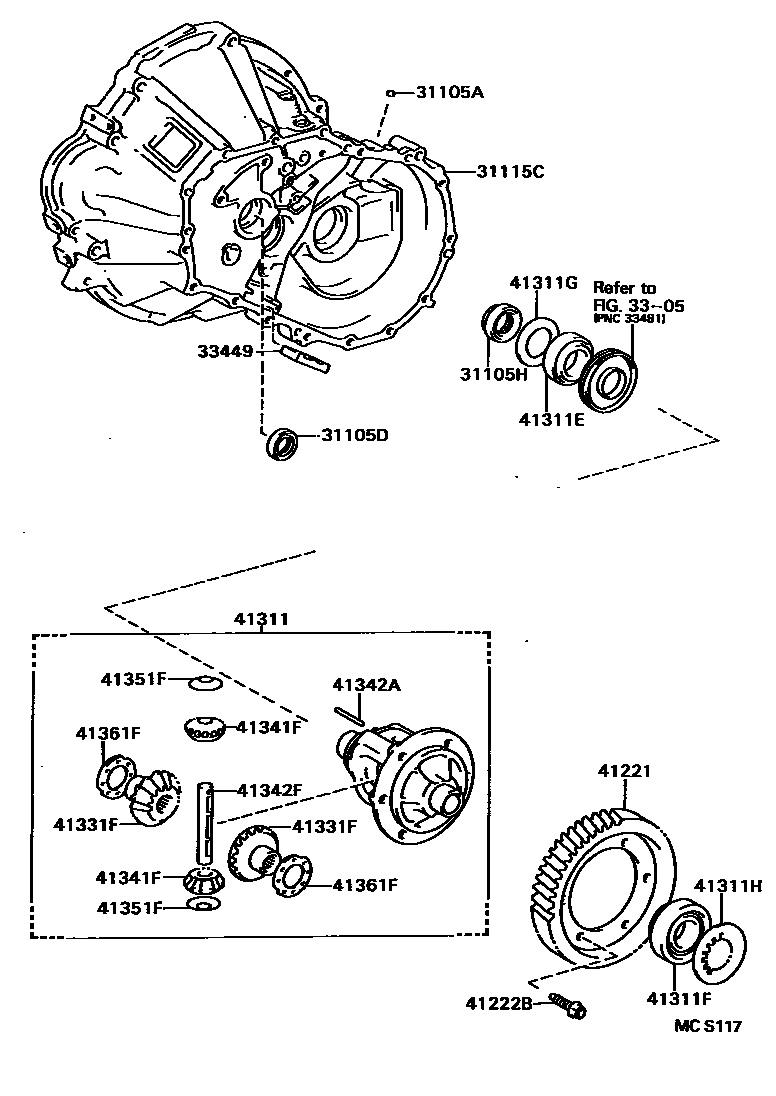

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3305TRANSMISSION GEAR (MTM)
33449MAGNET, TRANSMISSION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.00
T=2.10
T=1.2
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
T=2.45,MARK H
T=2.50,MARK J
T=2.55,MARK K
T=2.60,MARK L
T=2.65,MARK M
T=2.70,MARK N
T=2.75,MARK P
T=2.80,MARK Q
T=2.85,MARK R
T=2.90,MARK S
T=2.95,MARK T
T=3.00,MARK U
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
19 parts on this diagram · 2 diagrams in section
