TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

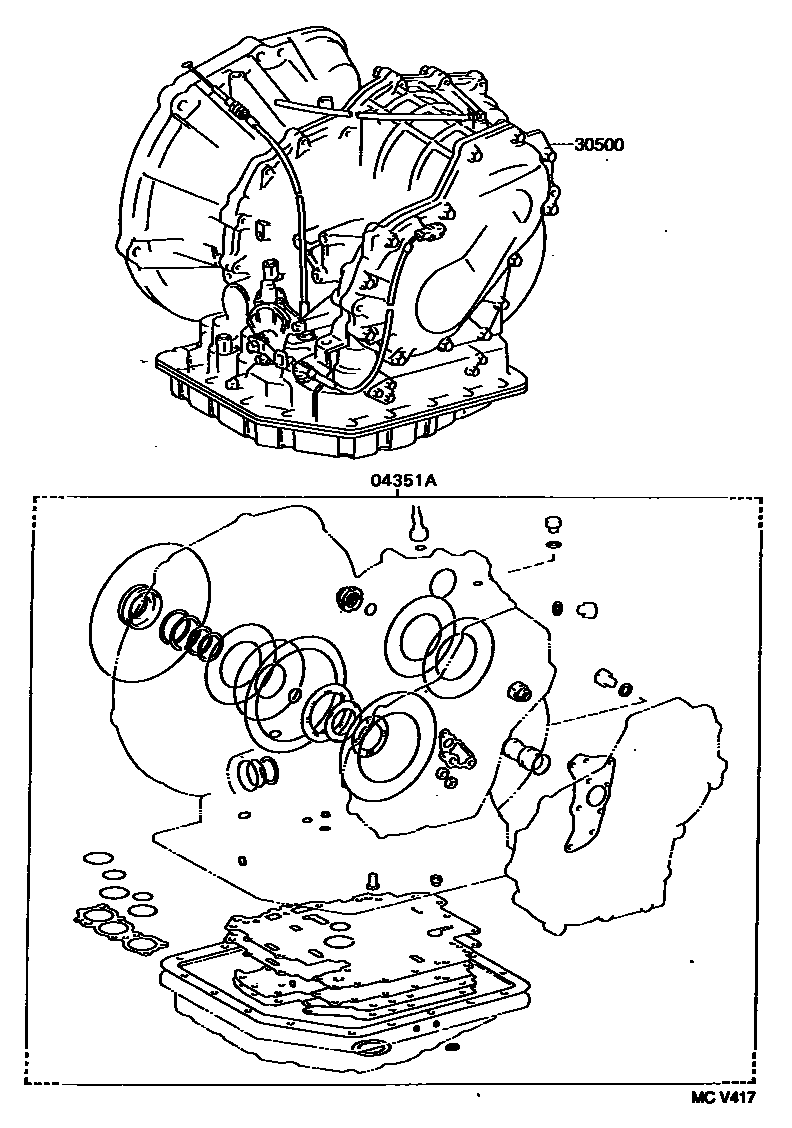

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-16090i199508-199712

main04351-16110i199712

30500TRANSAXLE ASSY, AUTOMATIC

main30500-16570i199508-199712

main30500-16690i199712

2 parts on this diagram · 1 diagram in section
