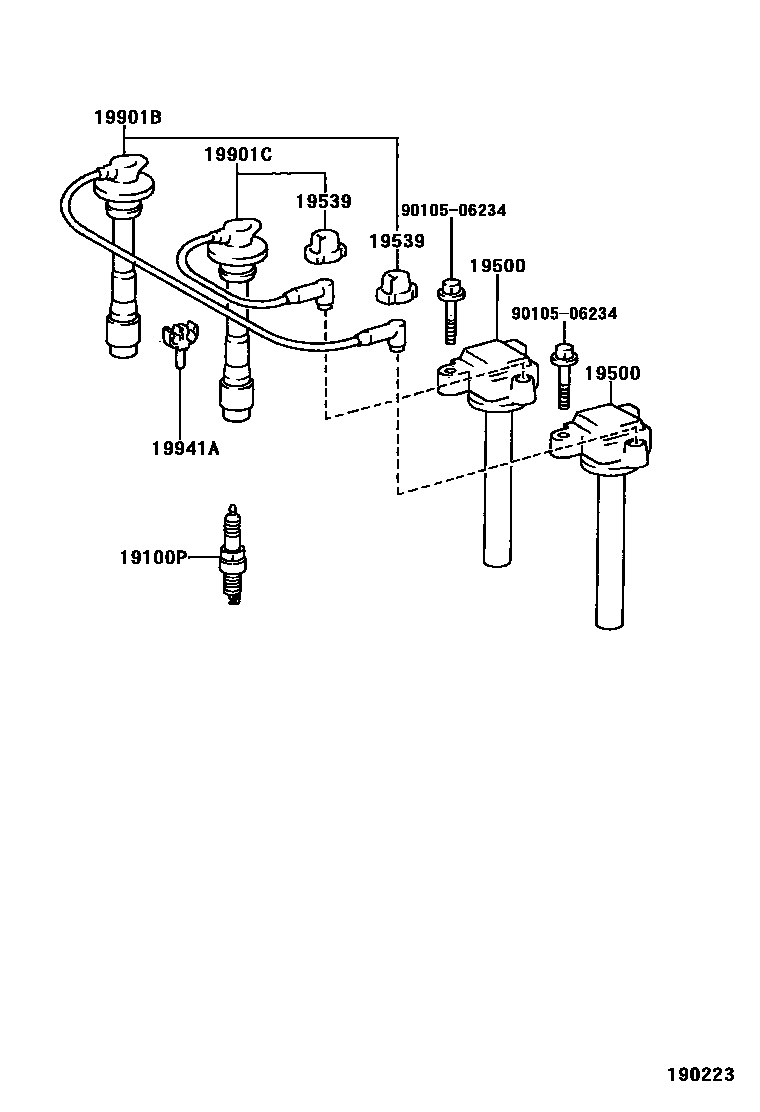

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01168i5EFE..EL54..EUR199608

PK16R11

sub90919-01217

main90919-01192i5EFE..EL54..ARL,GEN199508

K16TR11

main90919-01205i5EFE..EL54..EUR199512-199608

PK16R8

19500COIL ASSY, IGNITION

main90919-02213i5EFE..EL54..ARL,GEN199508

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11020i5EFE..EL54..EUR199512

NO.1,2

main19539-11030i5EFE..EL54..ARL,GEN199508

main19539-11030i5EFE..EL54..EUR199512

NO.3,4

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-22373i5EFE..EL54..EUR199512

sub90919-22420

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15423i5EFE..EL54..EUR199512

sub90919-15594

main90919-15428i5EFE..EL54..ARL,GEN199508

sub90919-15566

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15424i5EFE..EL54..EUR199512

sub90919-15595

main90919-15429i5EFE..EL54..ARL,GEN199508

sub90919-15567

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01258i5EFE..EL54..EUR199512

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00559i5EFE..EL54..EUR199512

main90469-05006i5EFE..EL54..ARL,GEN199508

9010506234

main90105-06234

9 parts on this diagram · 2 diagrams in section
