V-BELT

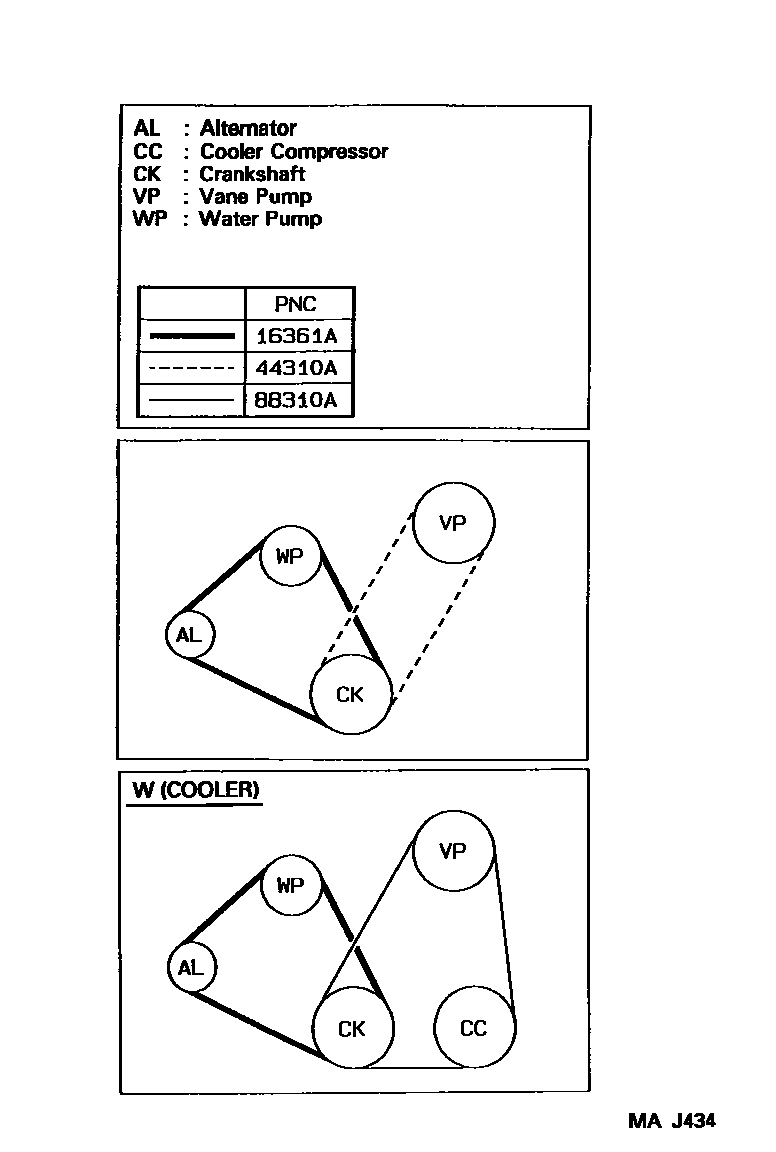

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main99364-20820i199508

L=820

44310ABELT, V(FOR VANE PUMP)

main99364-20940i199508

L=940

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91101i199508-199608

GOOD YEAR

main99364-21110i199802

L=1110

main99364-21120i199508-199608

MITSUBOSHI

main99364-81100i199608-199712

L=1100,BANDO

main99364-81120i199508-199608

BANDO

main99364-91080i199608-199610

BANDO

3 parts on this diagram · 1 diagram in section
