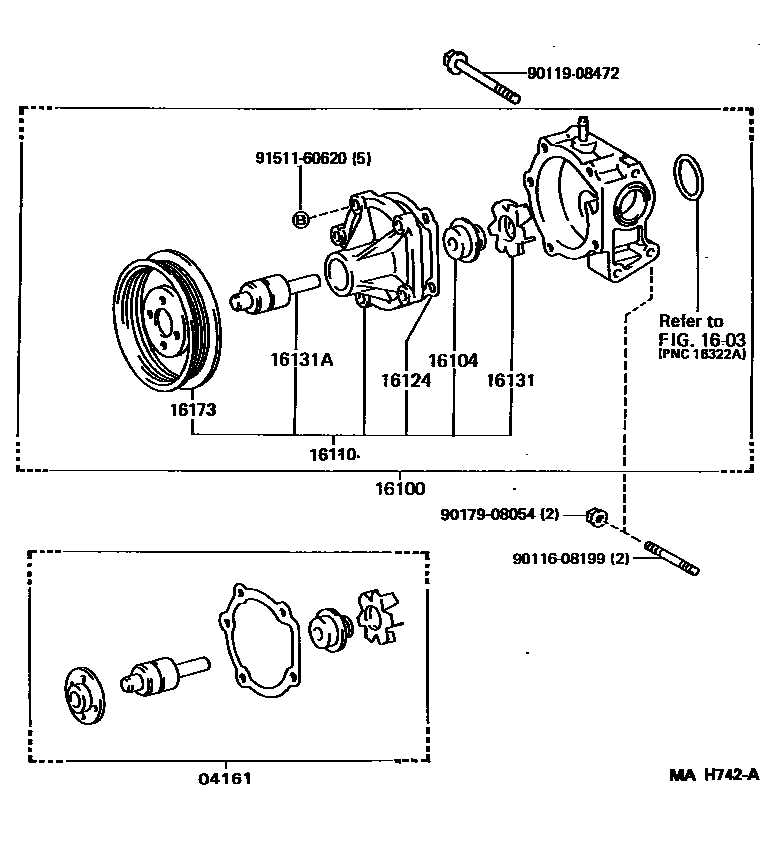

WATER PUMP

04161PUMP KIT, WATER

main04161-10022i5EFE..EL54199508-199611

main04161-10023i5EFE..EL54199611

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19226i5EFE..EL54199508

16104SEAL SET, WATER PUMP

main16104-46060i5EFE..EL54199611

main16104-74010i5EFE..EL54199508-199611

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19106i5EFE..EL54199508-199611

main16110-19107i5EFE..EL54199611

16124GASKET, WATER PUMP COVER

main16124-10013i5EFE..EL54199508

16131ROTOR, WATER PUMP

main16131-10013i5EFE..EL54199611

main16131-15080i5EFE..EL54199508-199611

16131ABEARING, WATER PUMP

main90029-36809i5EFE..EL54199508-199611

main90029-36850i5EFE..EL54199611

16173PULLEY, WATER PUMP

main16173-10013i5EFE..EL54199508

9011608199

main90116-08199

9011908472

main90119-08472

9017908054

main90179-08054

9151160620

main91511-60620

13 parts on this diagram · 1 diagram in section
