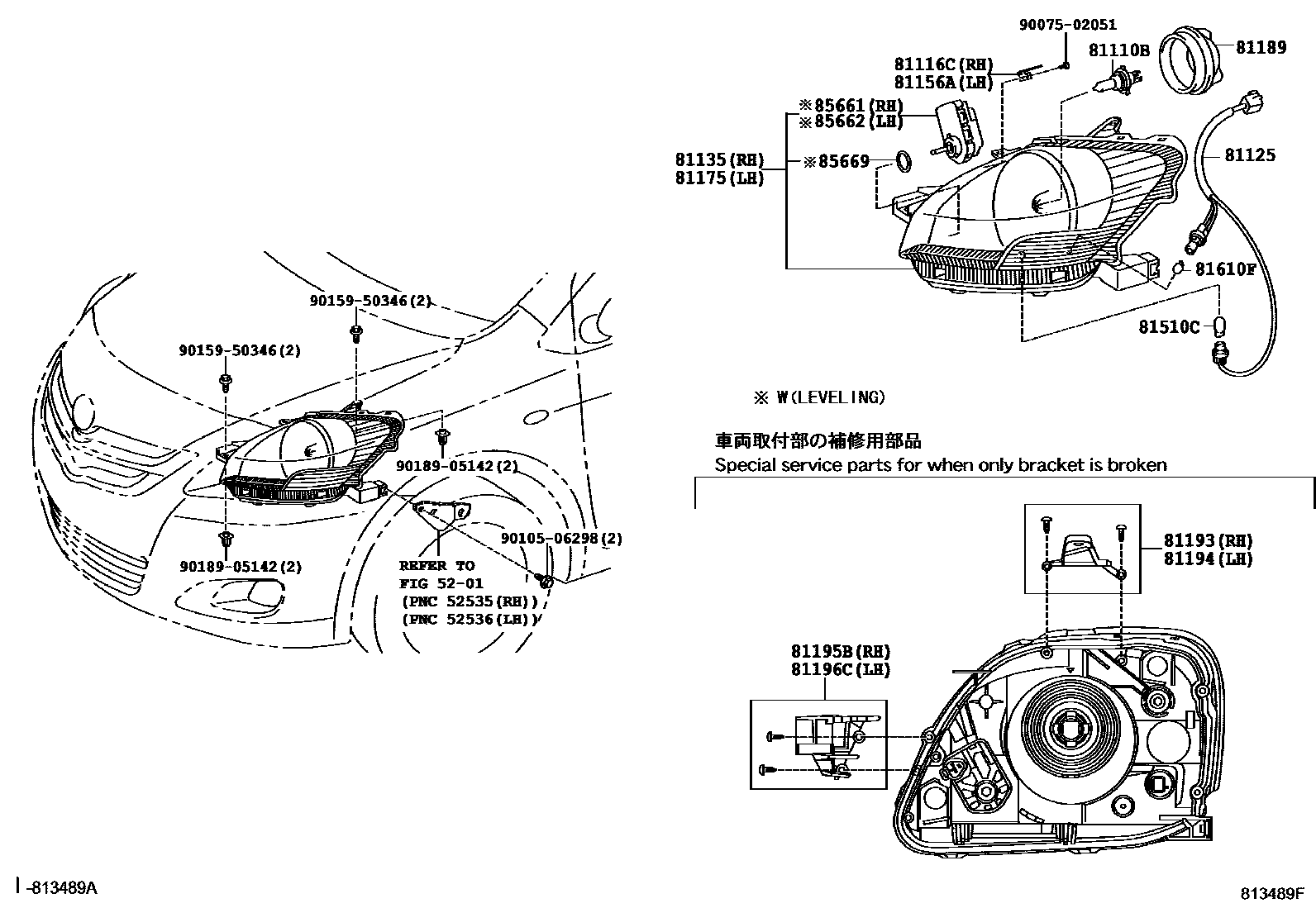

HEADLAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP9#200808

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-52730iNCP9#200601-200808

81125CORD, HEADLAMP

main81125-52730×2iNCP9#200601-200808

81135UNIT ASSY, HEADLAMP, RH

main81130-52760iNCP9#..RHD; NCP92..LHD..GEN200601-200808

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81130-52770iNCP9#..LHD200601-200808

main81130-52780iNCP92..RHD200601-200808

SOUTH AFRICA SPEC

main81130-52790iNCP9#..GCC200808-201307

SAUDI ARABIA SPEC

81156ABRACKET, HEADLAMP, LH

main81116-52730iNCP9#200601-200808

81175UNIT ASSY, HEADLAMP, LH

main81170-52750iNCP9#..RHD; NCP92..LHD..GEN200601-200808

HEAD LAMP-LH AIMING(FOR RHD CAR)

main81170-52760iNCP9#..LHD200601-200808

main81170-52770iNCP92..RHD200601-200808

SOUTH AFRICA SPEC

main81170-52780iNCP9#..GCC200601-200808

SAUDI ARABIA SPEC

81189COVER, HEADLAMP

main90075-65002×2iNCP9#200601-200808

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52120iNCP9#200601-200808

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52120iNCP9#200601-200808

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-52080iNCP9#200601-200808

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-52080iNCP9#200601-200808

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNCP9#200601-200808

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP9#200808

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNCP9#..GCC; NCP92..RHD200808-201307

SAUDI ARABIA SPEC; SOUTH AFRICA SPEC

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNCP9#..GCC; NCP92..RHD200601-200808

SAUDI ARABIA SPEC; SOUTH AFRICA SPEC

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNCP9#..GCC; NCP92..RHD200601-200808

SAUDI ARABIA SPEC; SOUTH AFRICA SPEC

9007502051

main90075-02051

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

21 parts on this diagram · 1 diagram in section
