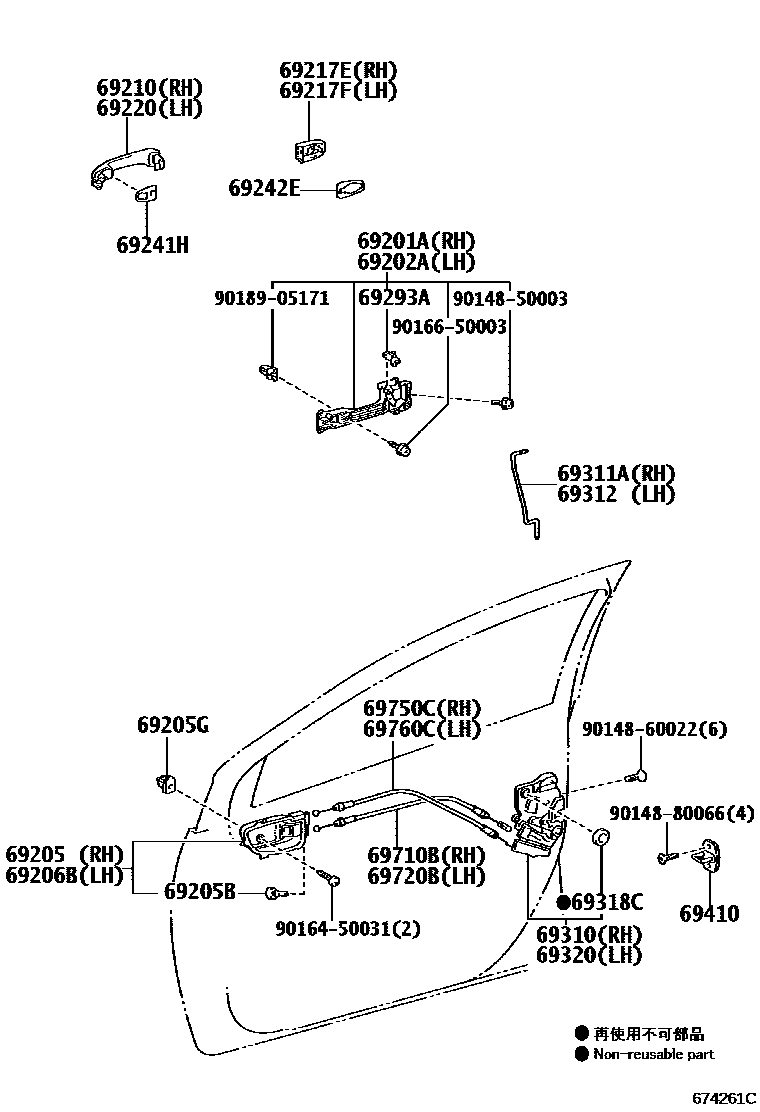

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69205GGROMMET(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK MATERIAL
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK MATERIAL
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9016650003
main90166-50003
9018905171
main90189-05171
29 parts on this diagram · 1 diagram in section
