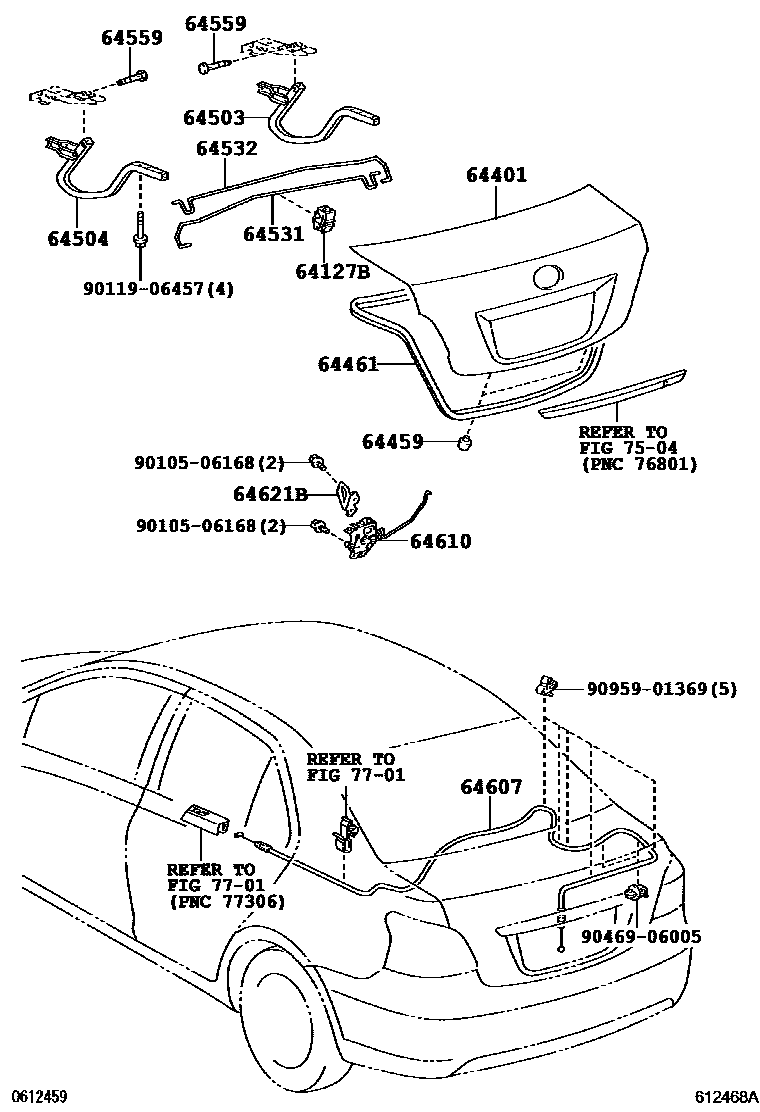

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-16070i200601-200808

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-52160supersedes 64401-52120i200601-200808

REAR SPOILER-WITH

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2i200808

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-52030i200601-200808

main64461-52031i200808-200908

main64461-52032i200909

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12150i200601-200808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12150i200601-200808

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-52060supersedes 64531-52050i200601-200708

REAR SPOILER-WITH

main64531-52061supersedes 64531-52051i200808-201607

REAR SPOILER-WITH

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-52060supersedes 64532-52050i200601-200708

REAR SPOILER-WITH

main64532-52061supersedes 64532-52051i200709-200808

REAR SPOILER-WITH

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2i200808-201607

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-52070i200601-200808

LUGGAGE & BACK DOOR RELEASE-WITH(WIRE TYPE)

main64607-52090i200601-200808

LUGGAGE & BACK DOOR RELEASE-WITH(WIRE TYPE & DOOR OPEN CANCEL); LUGGAGE & BACK DOOR RELEASE-WITH(WIRE TYPE)

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-52090i200601-200808

main64610-52110i200601-200808

LUGGAGE & BACK DOOR RELEASE-WITH(WIRE TYPE & DOOR OPEN CANCEL)

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-33010i200808

7504REAR MOULDING

→ Go to FIG 75-04

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010506168

main90105-06168

9011906457

main90119-06457

9046906005

main90469-06005

9095901369

main90959-01369

18 parts on this diagram · 2 diagrams in section
