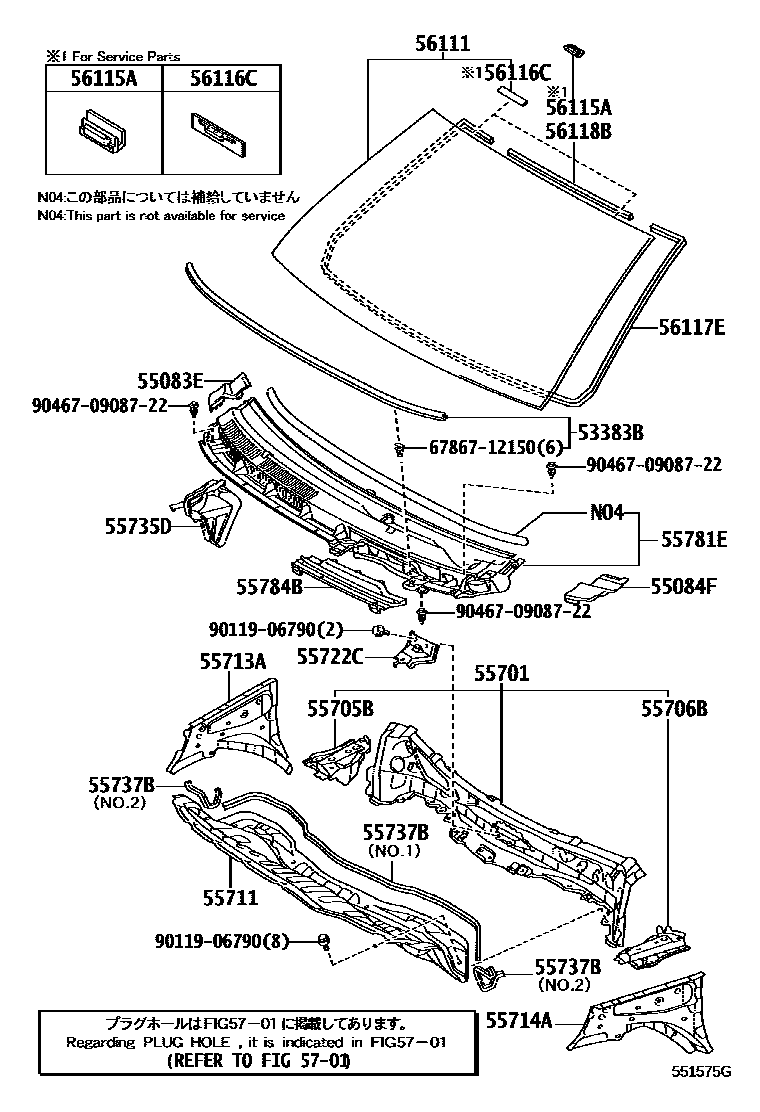

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55735DSEAL, FRONT AIR SHUTTER, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
NO.1
NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117EDAM, WINDOW GLASS ADHESIVE
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
5701
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906790
main90119-06790
904670908722
main90467-0908722
23 parts on this diagram · 2 diagrams in section
