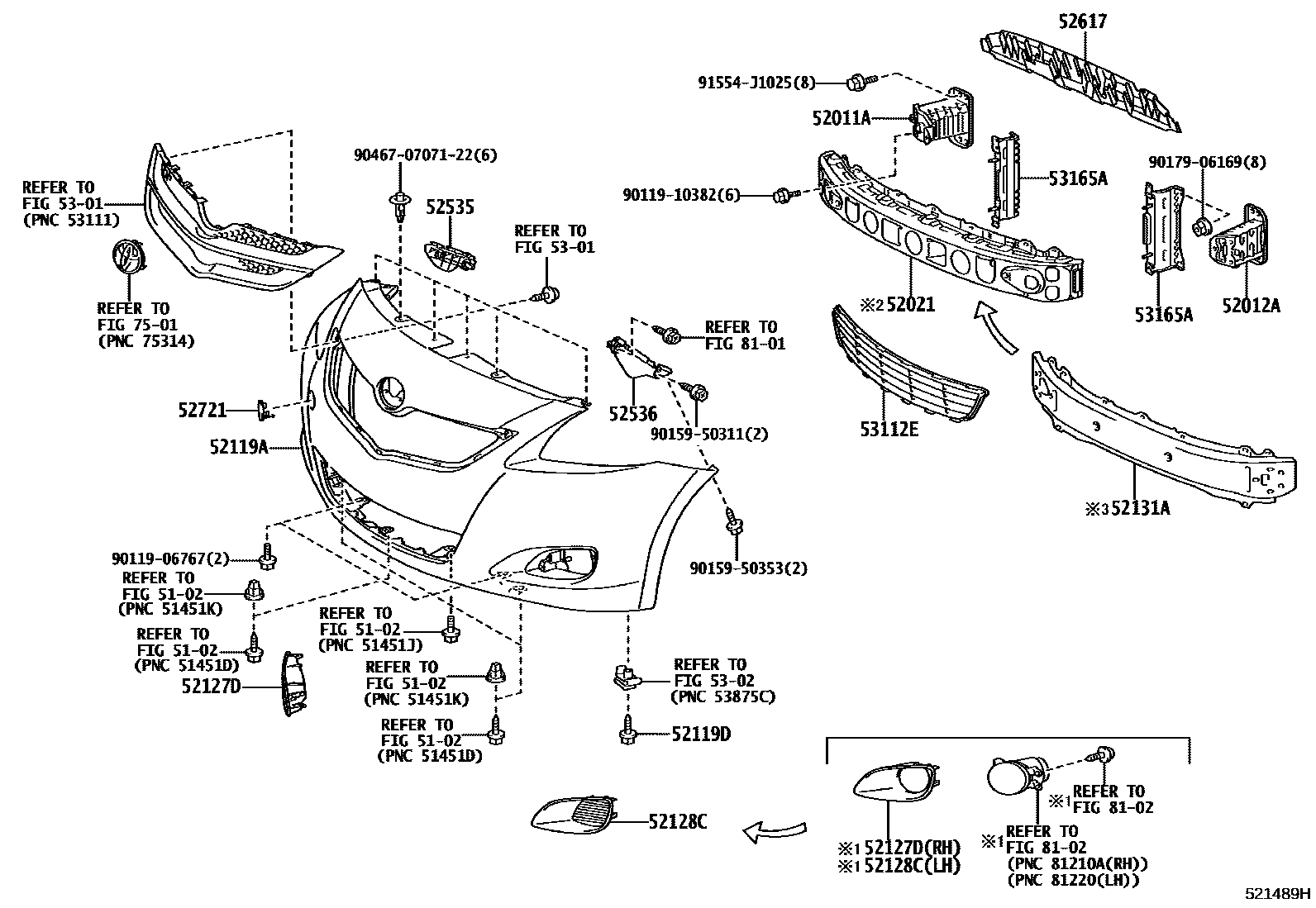

FRONT BUMPER & BUMPER STAY

0001 1 0002 1W(FRONT SPOILER)

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-52020iNCP9#200601-201207

main52011-52021iNCP9#201208

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-52020iNCP9#200601-200808

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-52050iNCP9#..ARL,GEN200601-200808

52119ACOVER, FRONT BUMPER

main52119-52934iNCP9#200601-200808

PAINT RERQ.

52119DSCREW, NO.1

main90159-60590iNCP9#200601-201607

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-52390iNCP9#200601-200808

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-52100iNCP9#200601-200808

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNCP9#..GCC200601-201307

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52130iNCP9#200601-201204

main52535-52131iNCP9#201205

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52140iNCP9#200601-201204

main52536-52141iNCP9#201205

52617ABSORBER, RADIATOR SUPPORT, UPPER

main52617-52030iNCP9#200601-200808

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-52906iNCP9#200601-201607

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-52240iNCP9#200601-200808

NO PAINT REQ.

main53112-52360iNCP9#200808

NO PAINT REQ.

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52020iNCP9#200601-200808

RH

main53165-52030iNCP9#200601-200808

LH

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

9011906767

main90119-06767

9011910382

main90119-10382

9015950311

main90159-50311

9015950353

main90159-50353

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

27 parts on this diagram · 2 diagrams in section
