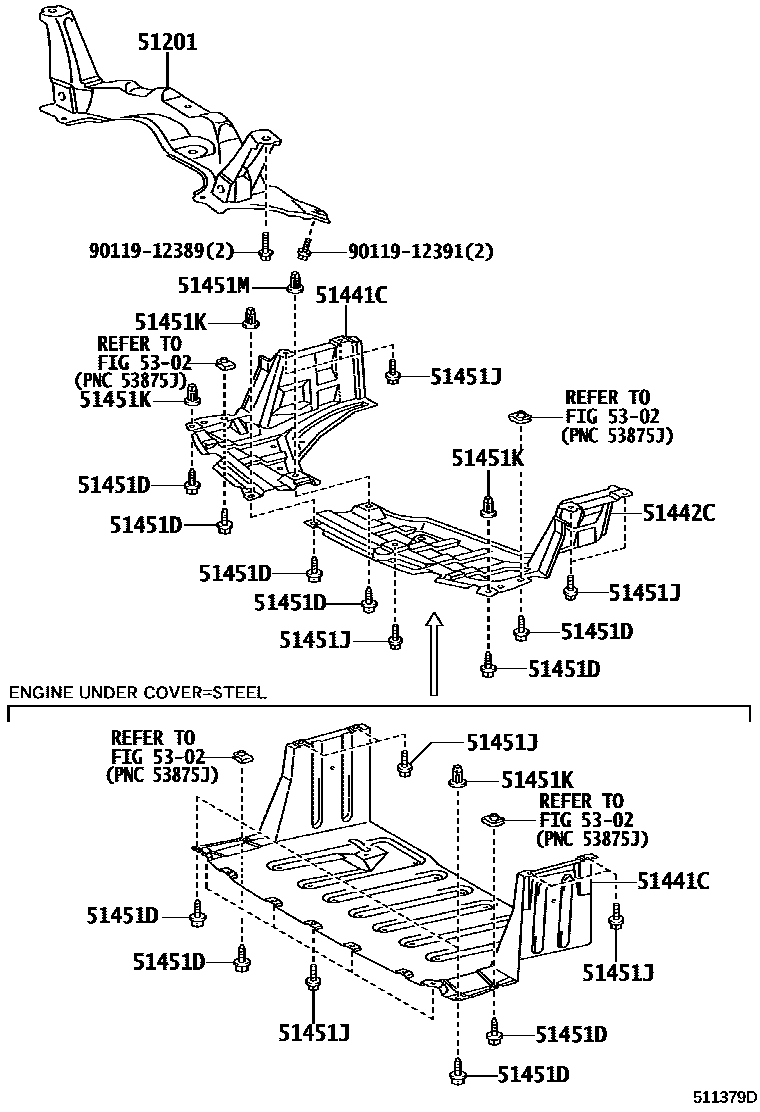

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iNCP9#..GCC,GEN200601-200808

main51201-52083iNCP9#201102-201112

main51201-52084iNCP9#201201-201204

main51201-52085iNCP9#201205-201206

main51201-52086iNCP9#201208-201210

main51201-52087iNCP9#201211

main51201-52090iNCP93..ARL; NCP93..GEN200601-200604

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W/O(HIGHT UP)

51441CCOVER, ENGINE UNDER, RH

main51408-52010iNCP9#..GCC200601-200808

main51408-52020iNCP9#..GCC200808-201307

main51441-52140iNCP9#..ARL,GEN200601-200612

main51441-52141iNCP9#..ARL,GEN200701-200808

main51441-52250iNCP9#..ARL,GEN200808

main51405-52050iNCP92..MTM..GEN200601-200808

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

51442CCOVER, ENGINE UNDER, LH

main51409-52010iNCP9#..GCC200601-200808

main51409-52020iNCP9#..GCC200808-201307

main51442-52080iNCP9#..ARL,GEN200601-200608

main51442-52081iNCP9#..ARL,GEN200609-200612

main51442-52082iNCP9#..ARL,GEN200701-200808

main51442-52110iNCP9#..ARL,GEN200808

51451DSCREW, NO.1

main90159-60383×6iNCP9#200808-201607

51451JBOLT, NO.1

main90119-06767×5iNCP9#200601-200808

51451KGROMMET, SCREW, NO.1

main90189-06076×3iNCP9#; NCP92..MTM..GEN200601-200808

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

51451MGROMMET, SCREW, NO.2

main90189-06076iNCP9#200808-201607

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011912389

main90119-12389

9011912391

main90119-12391

10 parts on this diagram · 1 diagram in section
