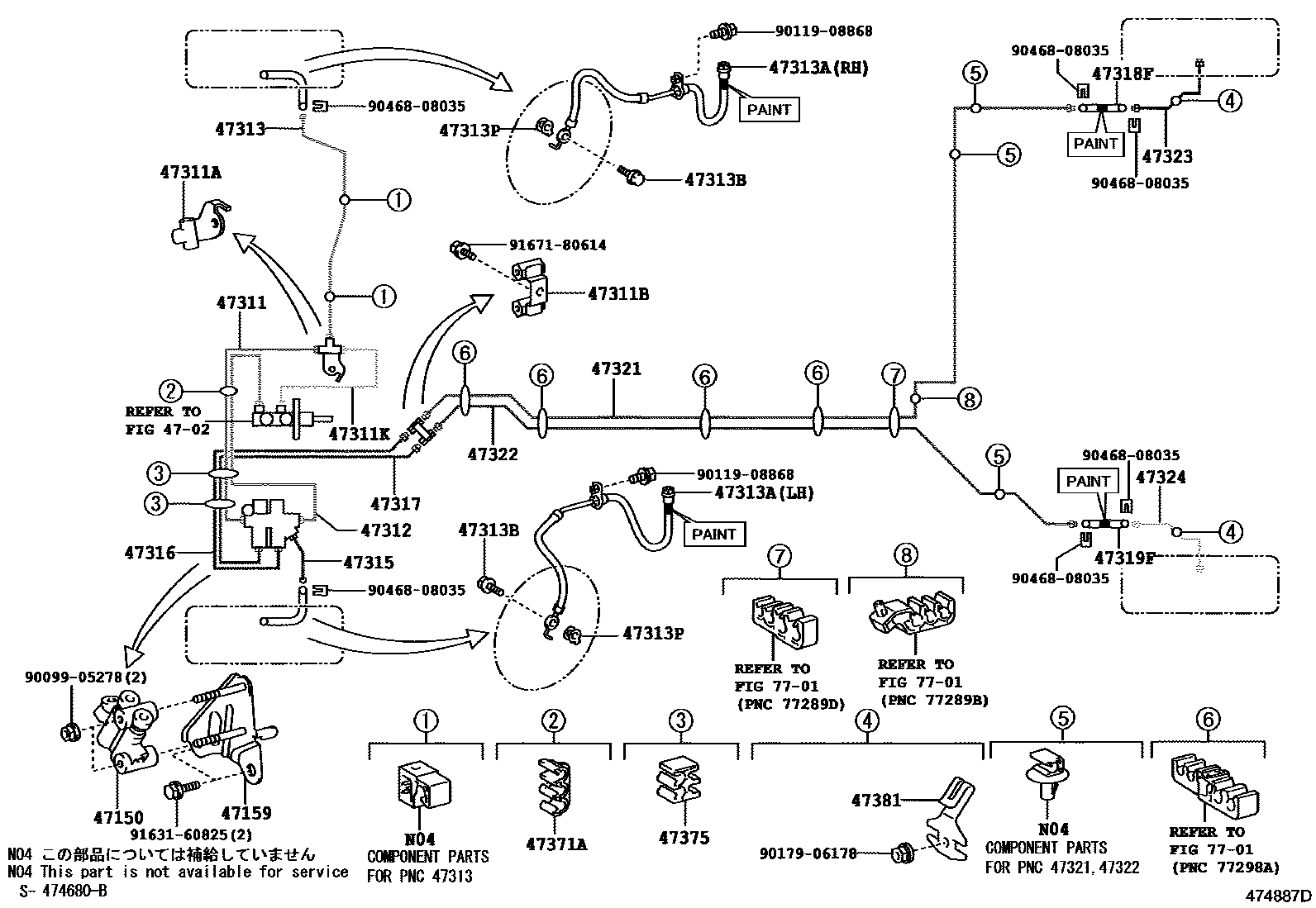

BRAKE TUBE & CLAMP

0001 1W/O(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(VSC) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(VSC)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47150VALVE ASSY, PROPORTIONING

main47150-10090iNCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

47159BRACKET, PROPORTIONING VALVE

main47159-52010iNCP9#..LHD..GEN200808-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47311TUBE, FRONT BRAKE, NO.1

main47311-52221iNCP9#..RHD200601-200808

main47311-52240supersedes 47311-52260iNCP9#..GCC;NCP9#..LHD..ATM..GEN; NCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main47311-52260iNCP9#..LHD..GEN200808-201307

main47311-52370iNCP92..RHD201108-201307

main47311-52390iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

main47311-52450iNCP93..ARL201108

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10314iNCP9#..LHD..MTM..GEN200601-200808

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNCP9#200601-200808

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-52270iNCP9#..LHD..MTM..GEN200601-200808

47312TUBE, FRONT BRAKE, NO.2

main47312-52201iNCP9#..RHD200601-200808

main47312-52220supersedes 47312-52240iNCP9#..GCC;NCP9#..LHD..ATM..GEN; NCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main47312-52240iNCP9#..LHD..GEN200808-201307

main47312-52330iNCP92..RHD201108-201307

main47312-52350iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

main47312-52400iNCP93..ARL201108

47313TUBE, FRONT BRAKE, NO.3

main47313-52110iNCP9#..RHD200808-201108

main47313-52130supersedes 47313-52150iNCP9#..GCC; NCP9#..LHD..GEN200808-201108

ABS-WITH(WITHOUT BRAKE ASSIST)

main47313-52150iNCP9#..LHD..GEN200808-201307

main47313-52160iNCP92..RHD201108-201307

main47313-52170iNCP93..ARL201108-201408

main47313-52171iNCP93201408

main47313-52190iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07iNCP9#200601-200808

RH

main90947-02E08iNCP9#200808-201111

LH,PINK

main90947-02G34iNCP9#201111-201408

RH,RED OR L.GREEN

main90947-02G35iNCP9#201111-201408

LH,LIGHT BLUE

main90947-02H35iNCP93201408-201607

RH

main90947-02H36iNCP93201408-201607

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP9#200601-200808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP9#200601-200808

47315TUBE, FRONT BRAKE, NO.5

main47315-52140iNCP9#..RHD200601-200808

main47315-52160supersedes 47315-52180iNCP9#..GCC; NCP9#..LHD..GEN200808-201108

ABS-WITH(WITHOUT BRAKE ASSIST)

main47315-52180iNCP9#..LHD..GEN200808-201307

main47315-52190iNCP92..RHD201108-201307

main47315-52200iNCP93..ARL201108-201408

main47315-52201iNCP93201408

main47315-52210iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47316TUBE, FRONT BRAKE, NO.6

main47316-52100iNCP9#..RHD200808-201108

main47316-52120supersedes 47316-52140iNCP9#..GCC; NCP9#..LHD..GEN200808-201108

ABS-WITH(WITHOUT BRAKE ASSIST)

main47316-52140iNCP9#..LHD..GEN200808-201307

main47316-52150iNCP92..RHD201108-201307

main47316-52160iNCP93..ARL201108

main47316-52180iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47317TUBE, FRONT BRAKE, NO.7

main47317-52100iNCP9#..RHD200601-200808

main47317-52120supersedes 47317-52140iNCP9#..GCC;NCP9#..LHD..ATM..GEN; NCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main47317-52140iNCP9#..LHD..GEN200808-201307

main47317-52150iNCP92..RHD201108-201307

main47317-52160iNCP93..ARL201108

main47317-52180iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09iNCP9#200601-200808

main90947-02G36iNCP9#201111-201408

PAINTED=RED

main90947-02H31iNCP93201408

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10iNCP9#200601-200808

main90947-02G38iNCP9#201111-201408

PAINTED=LIGHT BLUE

main90947-02H32iNCP93201408

47321TUBE, REAR BRAKE, NO.1

main47321-52320iNCP9#200601-200808

main47321-52321iNCP93201408-201607

47322TUBE, REAR BRAKE, NO.2

main47322-52300iNCP9#200601-200808

main47322-52301iNCP93201408-201607

47323TUBE, REAR BRAKE, NO.3

main47323-52100iNCP9#200601-200808

main47323-52101iNCP93201408

47324TUBE, REAR BRAKE, NO.4

main47324-52090iNCP9#200601-200808

main47324-52091iNCP93201408

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNCP9#..LHD..GEN200808-201307

47375CLAMP, BRAKE TUBE, NO.5

main90464-00883iNCP9#..GCC; NCP9#..LHD..GEN; NCP92..GCC200808-201108

ABS-WITH(WITHOUT BRAKE ASSIST); GCC BUSINESS PACKAGE&ABS-WITHOUT

main90949-01969iNCP9#..GCC; NCP9#..LHD..GEN201108-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020×2iNCP9#200601-200808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9009905278

main90099-05278

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9163160825

main91631-60825

9167180614

main91671-80614

31 parts on this diagram · 7 diagrams in section
