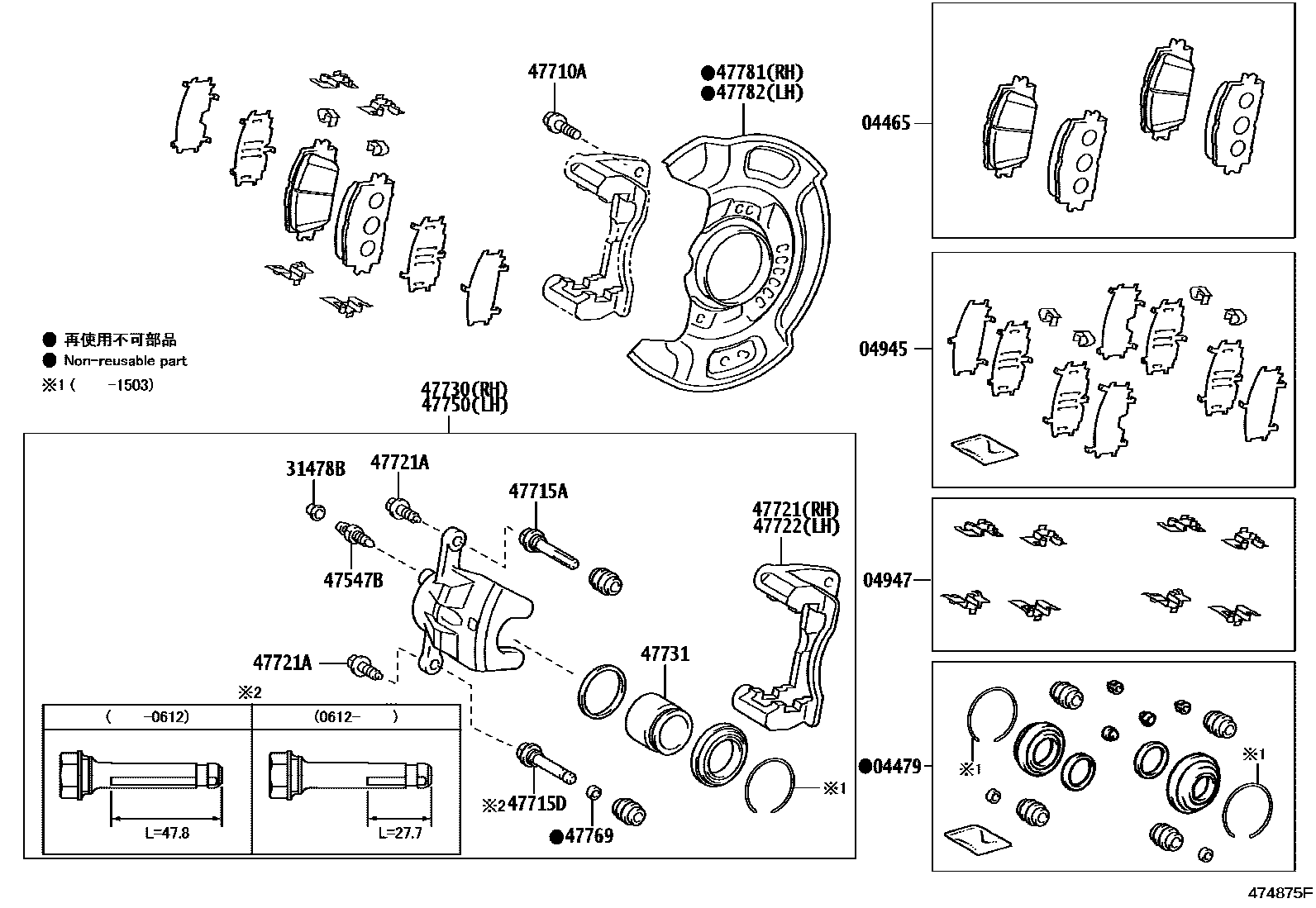

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12640iNCP9#..ARL,GEN201205

MARK AK PA563H

main04465-52200iNCP9#..GCC200601-201307

MARK ADVICS PC553H

main04465-52260iNCP9#..ARL,GEN200601-201204

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12120iNCP93201503

main04478-52070iNCP9#200601-201503

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52130iNCP9#..ARL,GEN200601-200808

main04945-52140iNCP9#..GCC200601-201307

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNCP9#200601-200808

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNCP9#200601-200808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP9#200601-200808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNCP9#200601-201607

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iNCP9#200601-200808

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iNCP9#200612-200808

main47715-22070iNCP9#200601-200612

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52191iNCP9#200601-200808

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP9#200601-200808

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52191iNCP9#200601-200808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B00iNCP93201503

main47730-52191iNCP9#200601-201503

47731PISTON, FRONT DISC BRAKE

main47731-52190iNCP9#200601-200808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B00iNCP93201503

main47750-52191iNCP9#200601-201503

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNCP9#200601-200808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52030iNCP9#200601-201607

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52030iNCP9#200601-201607

18 parts on this diagram · 1 diagram in section
