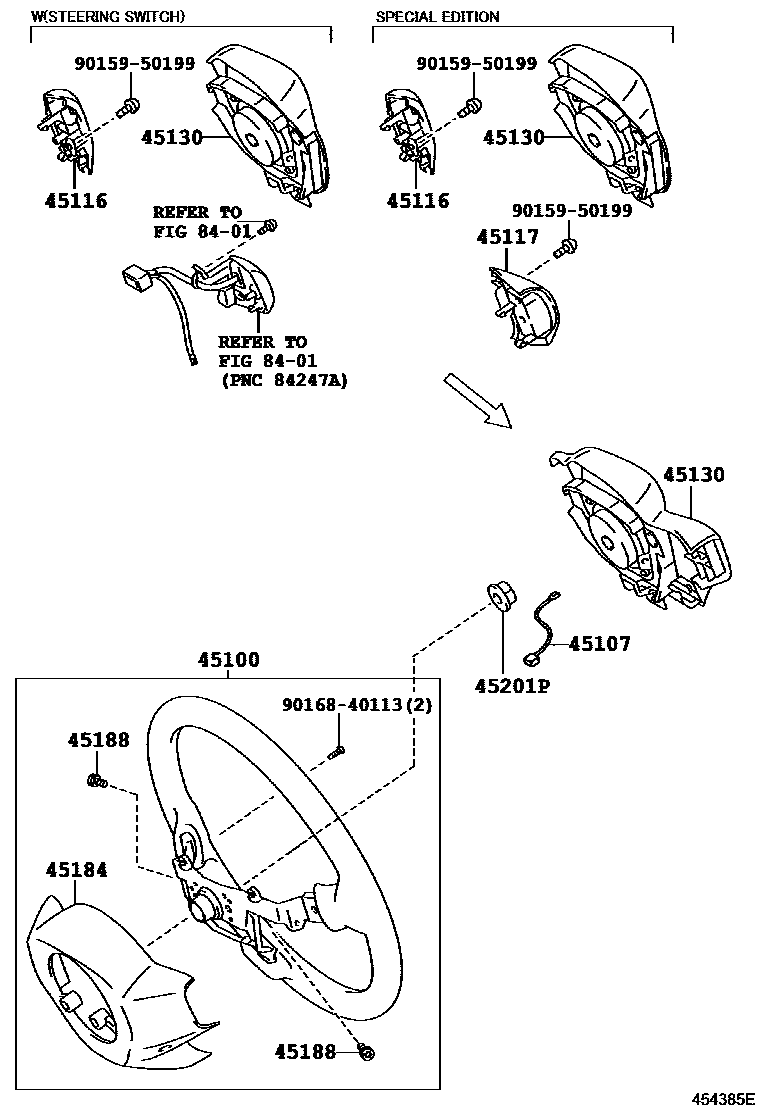

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52321-B0i200601-200808

3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-52321-E0i200808-201607

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010i200601-200808

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52040-B2i201005-201010

SPECIAL EDITION,SILVER,TRIM1#

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-52030-B2i201005-201010

SPECIAL EDITION,SILVER,TRIM4#

45130BUTTON ASSY, HORN

main45130-52421-B0i200601-200808

DK.GRAY,TRIM1#,4#

main45130-52421-E0i200808-201607

ASH BROWN,TRIM4#

main45130-52431-B0i201008-201307

STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH),DK.GRAY,TRIM1#

main45130-52431-E0i201008-201307

STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH),ASH BROWN,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52090-B0i200601-200808

DK.GRAY,TRIM1#,4#

main45184-52090-E0i200808-201607

ASH BROWN,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200601-200808

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200601-200808

8401SWITCH & RELAY & COMPUTER

9015950199

9016840113

11 parts on this diagram · 1 diagram in section
