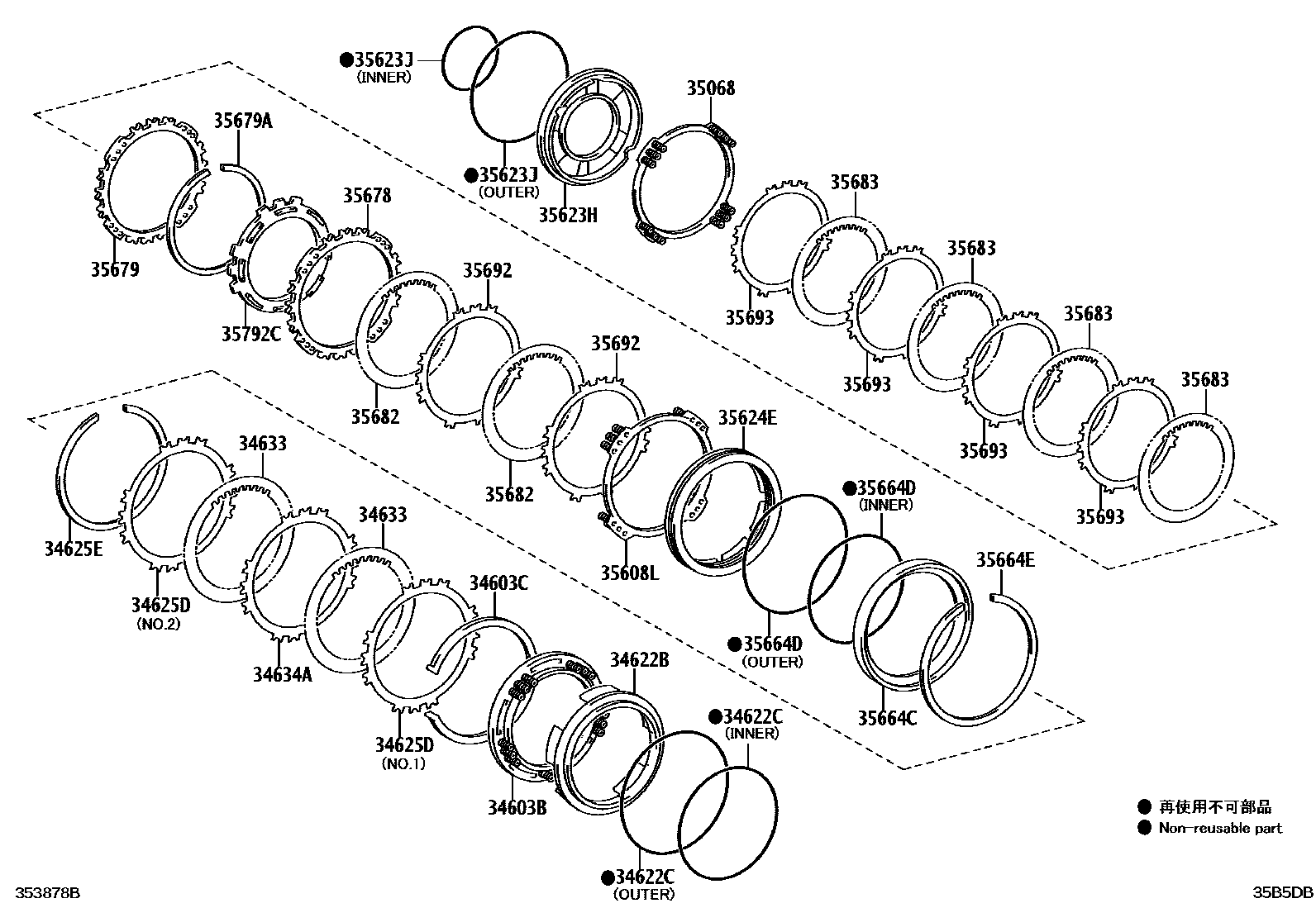

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)
34622BPISTON, 2ND COAST & OVERDRIVE BRAKE
34622CRING, O(FOR 2ND COAST & OVERDRIVE)
INNER
OUTER
INNER
OUTER
34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE
T=1.8, MARK 1, NO.1
T=2.0, MARK 2, NO.1
T=2.2, MARK 3, NO.1
T=2.4, MARK 4, NO.1
T=2.6, MARK 5, NO.1
T=4.2, MARK 5
T=4.4, MARK 6
T=4.6, MARK 7
T=5.0, NO MARK, NO.2
T=4.0, MARK 4
34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
34633DISC, 2ND COAST & OVERDRIVE BRAKE
34634APLATE, 2ND COAST & OVERDRIVE BRAKE
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
OUTER
OUTER
INNER
INNER
35624EPISTON, 2ND BRAKE
35664DRING, O(FOR 2ND BRAKE CYLINDER)
INNER
OUTER
INNER
OUTER
INNER
35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)
35678FLANGE, BRAKE(FOR 2ND BRAKE)
T=3.0
T=3.0
T=3.2
T=3.4
T=3.6
35679FLANGE, BRAKE(FOR 1ST & REVERSE)
T=3.4
T=3.4
T=3.6
T=3.8
T=4.0
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35682DISC, BRAKE(FOR 2ND BRAKE)
35683DISC, BRAKE(FOR 1ST & REVERSE)
35692PLATE, BRAKE(FOR 2ND BRAKE)
35693PLATE, BRAKE (FOR 1ST & REVERSE)
35792CCLUTCH, 1 WAY, NO.2
24 parts on this diagram · 2 diagrams in section
