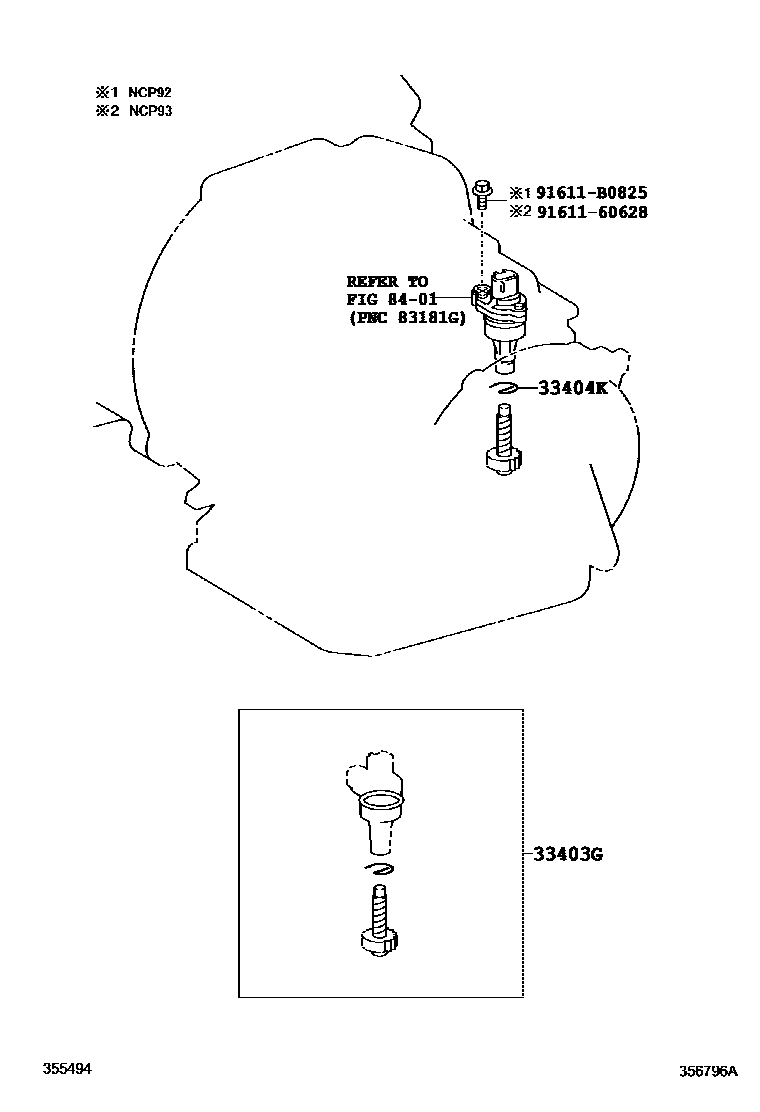

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455i200708-200808

N=30,MARK 30:35,GCC BUSINESS PACKAGE&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM; N=30,MARK 30:35,GCC BUSINESS PACKAGE&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK

main33403-19465i200808-201108

N=31,MARK 31:35,GCC BUSINESS PACKAGE

main33403-29525supersedes 33403-59015i200808-201307

N=21,MARK 21:25,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM; N=21,MARK 21:25,TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J BLACK

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i200808-201307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section
