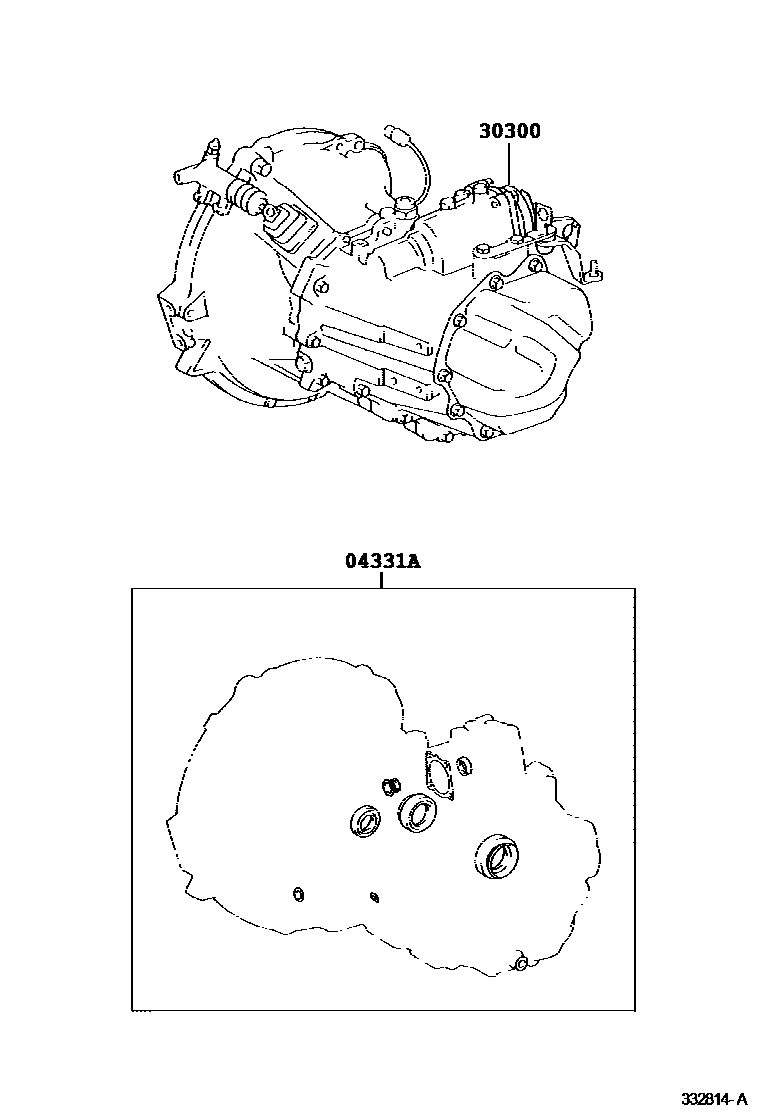

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12690iNCP9#..MTM200811-201010

main04331-12691iNCP9#..MTM201010-201102

main04331-12810iNCP9#..MTM201102

main04331-52520iNCP9#..MTM200808-200811

30300TRANSAXLE ASSY, MANUAL

main30300-52370iNCP93..MTM200808-200811

C54

main30300-52380iNCP92..MTM200601-200808

C54

main30300-52720iNCP93..MTM200811-201311

C54

main30300-52721iNCP93..MTM201311-201607

C54

main30300-52730iNCP92..MTM200811-201307

C54

main30300-52390iNCP92..MTM..GEN200601-200808

C54,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

main30300-52740iNCP92..LHD..MTM..GEN200811-201307

C54,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

2 parts on this diagram · 1 diagram in section
