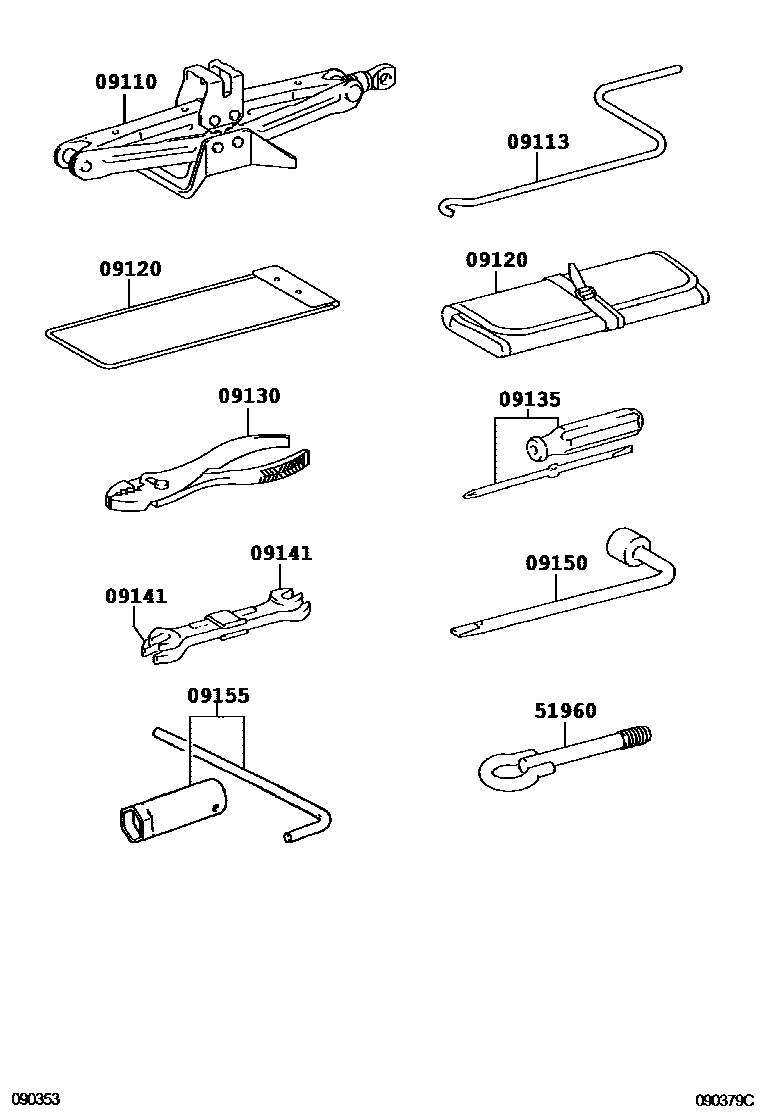

STANDARD TOOL

09110JACK ASSY

main09110-47010iNCP93..ARL200601-201009

sub09110-52010

main09110-52010iNCP93..ARL201010-201107

main09110-52020iNCP93..ARL201112

main09110-52030iNCP93..ARL201108-201111

sub09110-52020

main09111-12230iNCP9#..GCC,GEN201108-201307

main09111-47010iNCP9#..GCC,GEN200601-201009

sub09111-52060

main09111-52060iNCP9#..GCC,GEN201010-201107

09113HANDLE, JACK

main09113-20050iNCP9#201110

main09113-52040iNCP9#200601-201109

sub09113-20050

09120BAG, TOOL

main09120-37030iNCP93..ARL200601-200808

main09120-52050iNCP9#..GCC,GEN200601-201307

09130PLIERS

main99913-11500iNCP9#..GCC,GEN200601-201307

09135DRIVER, SCREW

main99915-10700iNCP9#..GCC,GEN200601-201307

09141SPANNER

main99914-10810iNCP9#..GCC,GEN200601-201307

8 X 10

main99914-11214iNCP9#..GCC,GEN200601-201307

12 X 14

09150WRENCH, HUB NUT BOX

main09150-12030iNCP93201307-201607

main09150-40010iNCP9#200601-201307

09155WRENCH, SPARK PLUG

main09155-74010iNCP9#..GCC,GEN200601-201307

51960HOOK ASSY, FRONT

main51960-47020iNCP9#200601-201509

main51960-52090iNCP93201510-201607

9 parts on this diagram · 1 diagram in section
