REAR DOOR LOCK & HANDLE

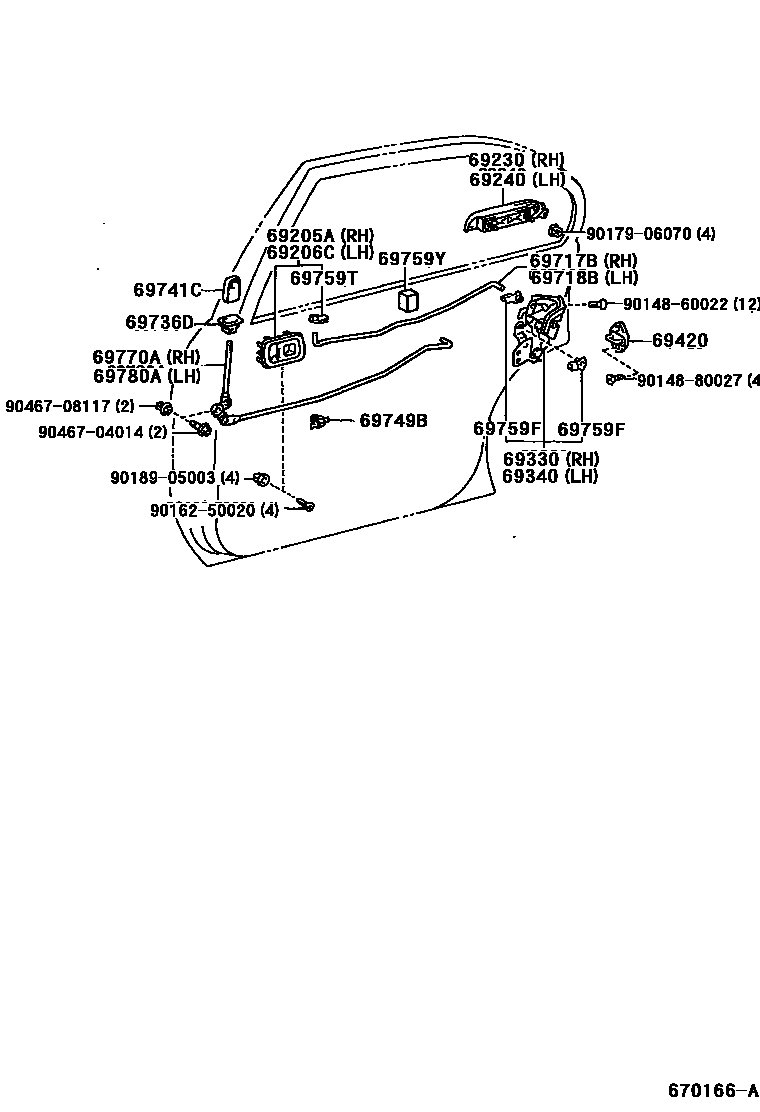

Parts diagram
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-16100-B0i199712
SHADOW GRAY,TRIM1#
sub69205-16100
main69205-16100-E0i199712-199805
OAK,TRIM4#
sub69205-16100
main69205-16100-E1i199805
SANDAL WOOD,TRIM4#
sub69205-16100
main69206-10070-B0i199409-199608
BLUISH GRAY,TRIM1#
sub69206-10070
main69206-10070-E0i199409-199608
OAK,TRIM4#
sub69206-10070
main69206-16100-B0i199608-199712
SHADOW GRAY,TRIM1#
sub69206-16100
main69206-16100-E0i199608-199712
OAK,TRIM4#
sub69206-16100
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69205-10070-B0i199409-199608
BLUISH GRAY,TRIM1#
sub69205-10070
main69205-10070-E0i199409-199608
OAK,TRIM4#
sub69205-10070
main69205-16100-B0i199608-199712
SHADOW GRAY,TRIM1#
sub69205-16100
main69205-16100-E0i199608-199712
OAK,TRIM4#
sub69205-16100
main69206-16100-B0i199712
SHADOW GRAY,TRIM1#
sub69206-16100
main69206-16100-E0i199712-199805
OAK,TRIM4#
sub69206-16100
main69206-16100-E1i199805
SANDAL WOOD,TRIM4#
sub69206-16100
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-16060i199409-199503
sub69230-16061
main69230-16090i199503-199907
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-16060i199409-199503
sub69240-16061
main69240-16090i199503-199907
69330LOCK ASSY, REAR DOOR, RH
main69050-16110i199409-199508
W(POWER WINDOW)
main69050-16111i199508
W(POWER WINDOW)
main69330-16230i199409-199508
main69330-16231i199508
69340LOCK ASSY, REAR DOOR, LH
main69060-16110i199409-199508
W(POWER WINDOW)
main69060-16111i199508
W(POWER WINDOW)
main69340-16230i199409-199508
main69340-16231i199508
69420PLATE ASSY, REAR DOOR LOCK STRIKER
main69410-87001i199409
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-16050i199409
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-16050i199409
69736DGUIDE, REAR DOOR LOCKING LINK
main69736-16050i199409
69741CKNOB, REAR DOOR LOCK CONTROL
main69741-16030-B0i199608
SHADOW GRAY,TRIM1#
sub69741-87003
sub69741-32020
main69741-16030-E0i199608
OAK,TRIM4#
sub69741-87003
sub69741-32020
main69741-90K00-B2i199508-199608
SHADOW GRAY,TRIM1#
sub69741-90K00
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-B3i199409-199508
GRAY,TRIM1#
sub69741-90K00
sub69741-89102
sub69741-12040
sub69741-89104
main69741-90K00-E3i199409-199608
OAK,TRIM4#
sub69741-90K00
sub69741-89102
sub69741-12040
sub69741-89104
69749BCLAMP, REAR DOOR LOCK LINK
main69749-12070i199409-199907
69759FSNAP, REAR DOOR LOCK CONTROL LINK
main69759-20040i199409
YELLOW
main69759-20050i199409
BROWN
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-20060i199409
GRAY
main69759-20070i199409
GREEN
69759YSILENCER, REAR DOOR LOCK LINK
main69759-20120i199409
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-16070i199409
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
main69780-16070i199409
9014860022
main90148-60022
9014880027
main90148-80027
9016250020
main90162-50020
9017906070
main90179-06070
9018905003
main90189-05003
9046704014
main90467-04014
9046708117
main90467-08117

24 parts on this diagram · 1 diagram in section
