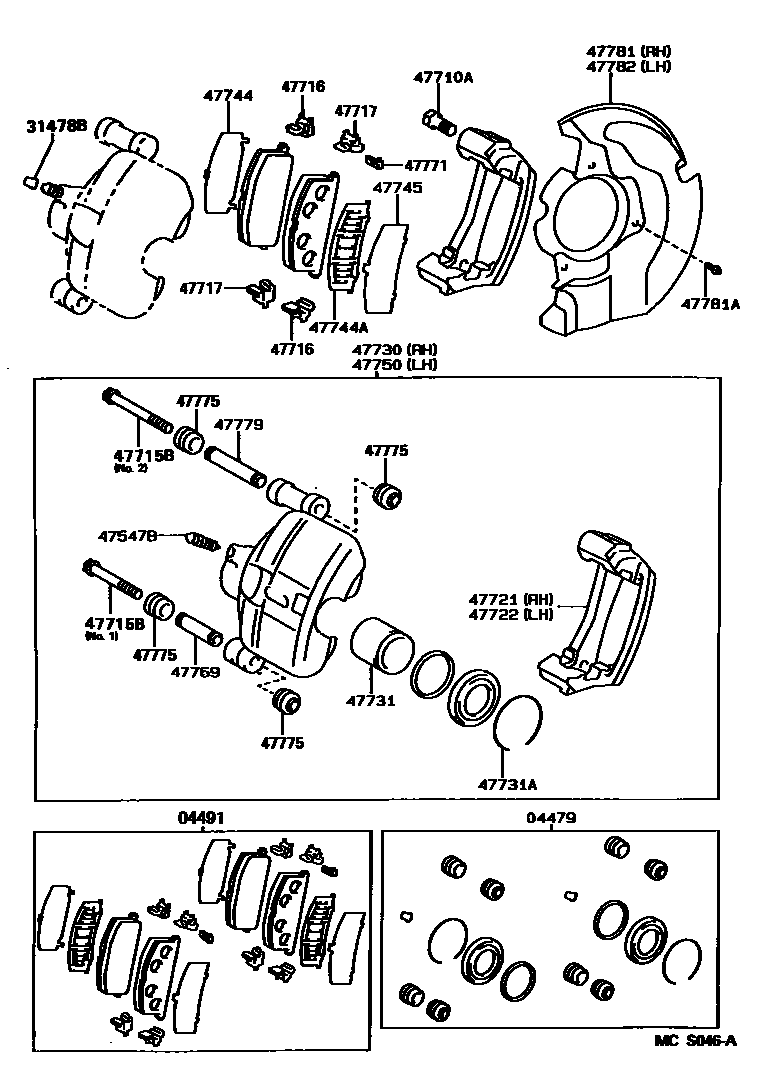

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10070iEL5#199409

main04479-12091iEL50..GCC199712

W(ABS)

04491PAD KIT, DISC BRAKE, FRONT

main04491-10221iEL5#199409-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEL5#199409

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEL5#199409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEL5#199409

*12-1.25PX25.8-19.5

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003×2iEL50..GCC199712

W(ABS),NO.1

main90119-09004×2iEL50..GCC199712

W(ABS),NO.2

main90119-09007×2iEL5#199409

NO.1

main90119-09008×2iEL5#199409

NO.2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEL5#199409

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iEL5#199409

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iEL50..GCC199712

W(ABS)

main47721-16040iEL5#199409

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iEL50..GCC199712

W(ABS)

main47721-16040iEL5#199409

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10101iEL50..GCC199712

W(ABS)

main47730-16090iEL5#199409

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEL50..GCC199712

W(ABS)

main47731-16040×2iEL5#199409

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEL5#199409

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050×2iEL5#199409-199608

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-20050×2iEL5#199409-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-20050×2iEL5#199409-199608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10101iEL50..GCC199712

W(ABS)

main47750-16090iEL5#199409

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEL50..GCC199712

W(ABS)

main47769-20010×2iEL5#199409

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030×2iEL5#199409

main47771-32010×2iEL50..GCC199712

W(ABS)

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16020×8iEL5#199608

main47775-32010×8iEL5#199409-199608

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iEL50..GCC199712

W(ABS)

main47779-20010×2iEL5#199409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10060iEL5#199409

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEL5#199409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10060iEL5#199409

24 parts on this diagram · 2 diagrams in section
