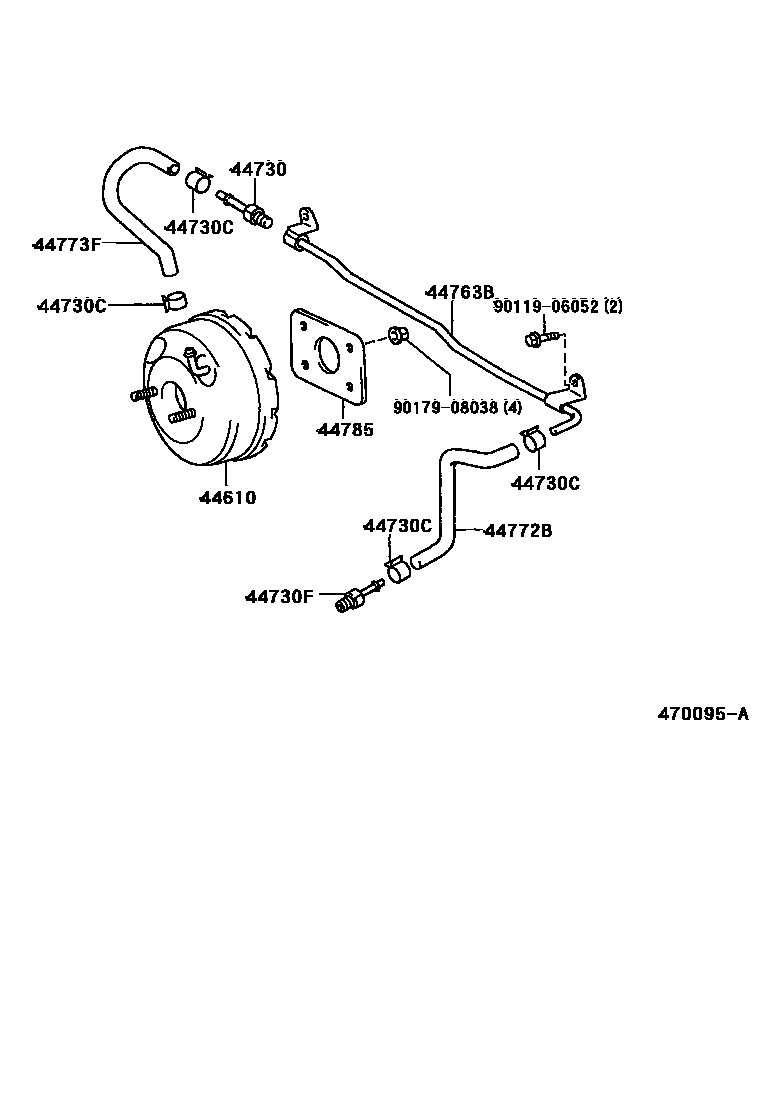

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-16540iEL50..RHD199605-199712

main44610-16570iEL50..RHD199409-199605

main44610-16580iEL5#..LHD199409

main44610-16660iEL50..RHD199712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iEL53199409

main44730-10010iEL50..LHD199409

main44730-24010iEL50..RHD199409

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×4iEL53;EL50..RHD199409-199512

main90467-16024iEL53199512

TYPE B:REFER TO ILLUSTRATION

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51034iEL50199409

main90406-09006iEL53199508

main90407-51002iEL53199409-199508

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-16030iEL53199409-199508

main44763-16040iEL50..RHD199409-199712

main44763-16050iEL53199508

main44763-16080iEL50..RHD199712

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16110iEL53199409-199508

main44772-16120iEL50..LHD199409

main44772-16130iEL50..RHD199409-199712

main44772-16150iEL53199508

main44772-16160iEL50..RHD199712

44773FHOSE, UNION TO CHECK VALVE

main44773-16120iEL53199409-199508

main44773-16130iEL50..LHD199409

main44773-16140iEL50..RHD199409

main44773-16160iEL53199508

44785GASKET, BRAKE BOOSTER

main44785-10020iEL5#199409-199508

main44785-16020iEL5#199508

9011906052

main90119-06052

9017908038

main90179-08038

10 parts on this diagram · 2 diagrams in section
