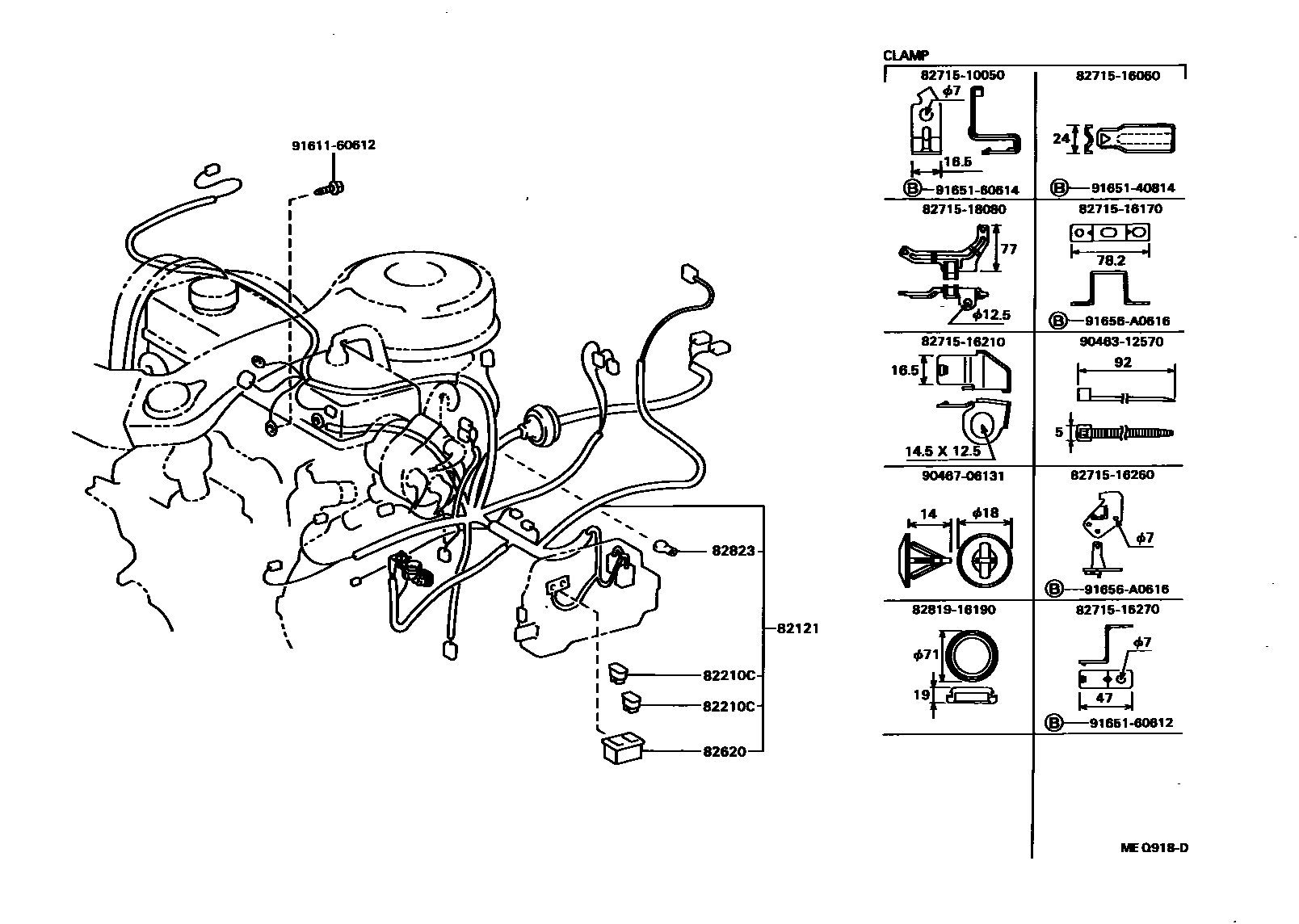

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82121WIRE, ENGINE

main82121-16580iEL40..LHD..MTM199009-199208

main82121-16590iEL40..LHD..ATM199009-199208

main82121-16660iEL40..RHD..ATM199009-199208

main82121-16870iEL40..RHD..MTM199009-199208

main82121-1G070iEL40..RHD..MTM199208-199409

main82121-1G080iEL40..RHD..ATM199208-199409

main82121-1G090iEL40..LHD..MTM199208-199308

main82121-1G091iEL40..LHD..MTM199308-199409

main82121-1G100iEL40..LHD..ATM199208-199409

82210CFUSIBLE LINK

main90982-08202iEL40199009-199409

60A,TERM.:MALE,YEL

82620BLOCK ASSY, FUSIBLE LINK

main82620-30030iEL40199009-199409

82823CAP, TERMINAL, NO.1

main82823-20070iEL40..LHD199208-199409

main82823-22060iEL40199009-199208

8271510050BRACKET,WIRING HARNESS CLAMP

main82715-10050

8271516060BRACKET,WIRING HARNESS CLAMP

main82715-16060

8271516170BRACKET,WIRING HARNESS CLAMP

main82715-16170

8271516210BRACKET,WIRING HARNESS CLAMP

main82715-16210

8271516260BRACKET,WIRING HARNESS CLAMP

main82715-16260

8271516270BRACKET,WIRING HARNESS CLAMP

main82715-16270

8271518080BRACKET,WIRING HARNESS CLAMP

main82715-18080

8281916190GROMMET, WIRING HARNESS

main82819-16190

9046312570

main90463-12570

9046706131

main90467-06131

9161160612

main91611-60612

9165140814

main91651-40814

9165160612

main91651-60612

9165160614

main91651-60614

91656A0616

main91656-A0616

19 parts on this diagram · 7 diagrams in section
