FRONT SEAT & SEAT TRACK

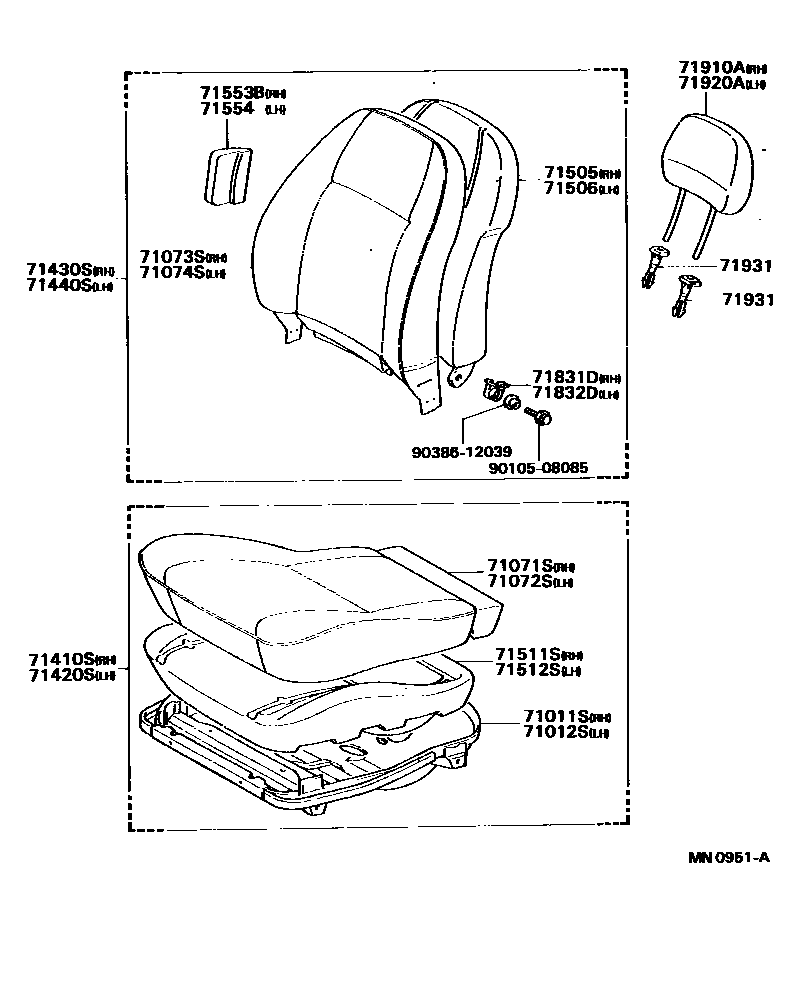

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-16060i199009-199409
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-16030i199009-199409
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-16890-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71071-16890-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71071-1G030-03i199009-199208
GRAY,TRIM2#
main71071-1G080-C0i199308-199409
GRAY,TRIM2#
main71071-1G080-J0i199208-199409
W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
main71071-1G110-C0i199208-199409
GRAY,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-16890-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71071-16890-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71071-1G030-03i199009-199208
GRAY,TRIM2#
main71071-1G080-C0i199208-199409
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71071-1G080-J0i199308-199409
EISEN BLUE,TRIM8#
main71071-1G110-C0i199208-199409
GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1G140-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71073-1G140-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71073-1G170-03i199009-199208
GRAY,TRIM2#
main71073-1G171-C0i199208-199409
GRAY,TRIM2#
main71073-1G210-C0i199208-199409
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71073-1G210-J0i199208-199409
W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-16820-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71074-16820-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71074-16850-03i199009-199208
GRAY,TRIM2#
main71074-16851-C0i199208-199409
GRAY,TRIM2#
main71074-16890-C0i199308-199409
GRAY,TRIM2#
main71074-16890-J0i199208-199409
W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1G060-03i199009-199208
***,GRAY,TRIM2#
main71410-1G070-03i199009-199208
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71410-1G070-04i199009-199208
***,W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71410-1G150-C0i199208-199409
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71410-1G150-J0i199308-199409
***,EISEN BLUE,TRIM8#
main71410-1G210-C0i199208-199409
***,GRAY,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-16870-03i199009-199208
***,GRAY,TRIM2#
main71420-16880-03i199009-199208
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71420-16880-04i199009-199208
***,W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71420-1G090-C0i199208-199409
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71420-1G090-J0i199308-199409
***,EISEN BLUE,TRIM8#
main71420-1G150-C0i199208-199409
***,GRAY,TRIM2#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1G210-03i199009-199208
***,GRAY,TRIM2#
main71430-1G211-C0i199208-199409
***,GRAY,TRIM2#
main71430-1G220-03i199009-199208
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71430-1G220-04i199009-199208
***,W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71430-1G290-C0i199308-199409
***,GRAY,TRIM2#
main71430-1G290-J0i199208-199409
***,W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1G160-03i199009-199208
***,GRAY,TRIM2#
main71440-1G161-C0i199208-199409
***,GRAY,TRIM2#
main71440-1G170-03i199009-199208
***,W(FULL FABRIC SEAT),GRAY,TRIM2#
main71440-1G170-04i199009-199208
***,W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71440-1G240-C0i199308-199409
***,GRAY,TRIM2#
main71440-1G240-J0i199308-199409
***,EISEN BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-16070i199009-199409
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-16030i199009-199409
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-16120i199009-199208
main71511-16160i199208-199409
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-16120i199009-199208
main71511-16160i199208-199409
71553BPAD, FRONT SEATBACK, B
main71553-16040i199009-199409
71554PAD, FRONT SEATBACK, C
main71553-16040i199009-199409
71831DCOVER, FRONT SEAT HINGE, RH
main71831-16010i199009-199409
71832DCOVER, FRONT SEAT HINGE, LH
main71831-16010i199009-199409
71910AHEADREST ASSY, FRONT SEAT
main71910-16330-01i199009-199208
BLACK,TRIM2#
main71910-16330-04i199009-199208
GRAYISH BLUE,TRIM8#
main71910-16330-22i199208-199409
BLACK,TRIM2#
main71910-16330-W4i199308-199409
EISEN BLUE,TRIM8#
main71910-16370-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71910-16370-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71910-16430-B0i199208-199409
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71910-16430-J0i199208-199409
W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
71920AHEADREST ASSY, FRONT SEAT, LH
main71910-16330-01i199009-199208
BLACK,TRIM2#
main71910-16330-04i199009-199208
GRAYISH BLUE,TRIM8#
main71910-16330-22i199208-199409
BLACK,TRIM2#
main71910-16330-W4i199308-199409
EISEN BLUE,TRIM8#
main71910-16370-03i199009-199208
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71910-16370-04i199009-199208
W(FULL FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71910-16430-B0i199208-199409
W(FULL FABRIC SEAT),GRAY,TRIM2#
main71910-16430-J0i199208-199409
W(FULL FABRIC SEAT),EISEN BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-01×2i199009-199106
W(LOCK),BLACK,TRIM2#
main71930-10070-22×2i199208-199409
W(LOCK),BLACK,TRIM2#
main71930-10070-24×2i199106-199208
W(LOCK),W(FABRIC SEAT),GRAYISH BLUE,TRIM8#
main71930-10070-W4×2i199208-199409
W(LOCK),EISEN BLUE,TRIM8#
main71930-32010-01×2i199106-199208
W(LOCK),BLACK,TRIM2#
main71930-32010-04×2i199106-199208
W(LOCK),BLUE,TRIM8#
main71931-10020-01×2i199009-199106
W/O(LOCK),BLACK,TRIM2#
main71931-10020-22×2i199208-199409
W/O(LOCK),BLACK,TRIM2#
main71931-10020-24×2i199009-199106
W/O(LOCK),GRAYISH BLUE,TRIM8#
main71931-10020-W4×2i199208-199409
W/O(LOCK),EISEN BLUE,TRIM8#
main71931-32010-01×2i199106-199208
W/O(LOCK),BLACK,TRIM2#
main71931-32010-04×2i199106-199208
W/O(LOCK),BLUE,TRIM8#
9010508085
main90105-08085
9038612039
main90386-12039

23 parts on this diagram · 2 diagrams in section
