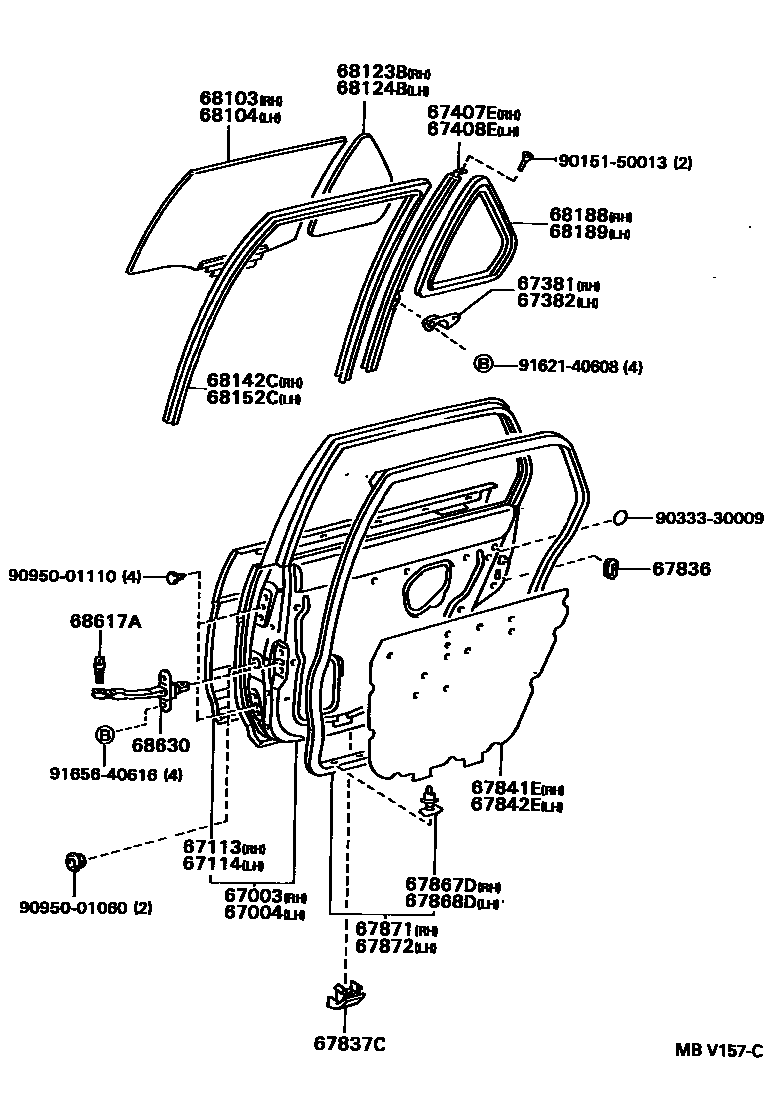

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
W(POWER WINDOW)
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67381BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH
67382BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.5,CLEAR
*TT,T=3.5,BLUE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.5,CLEAR
*TT,T=3.5,BLUE
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.5,CLEAR
*TEM,T=3.5,BLUE
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.5,CLEAR
*TEM,T=3.5,BLUE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68617APIN, REAR DOOR CHECK
9015150013
main90151-50013
9033330009
main90333-30009
9095001060
main90950-01060
9095001110
main90950-01110
9162140608
main91621-40608
9165640616
main91656-40616
32 parts on this diagram · 2 diagrams in section
