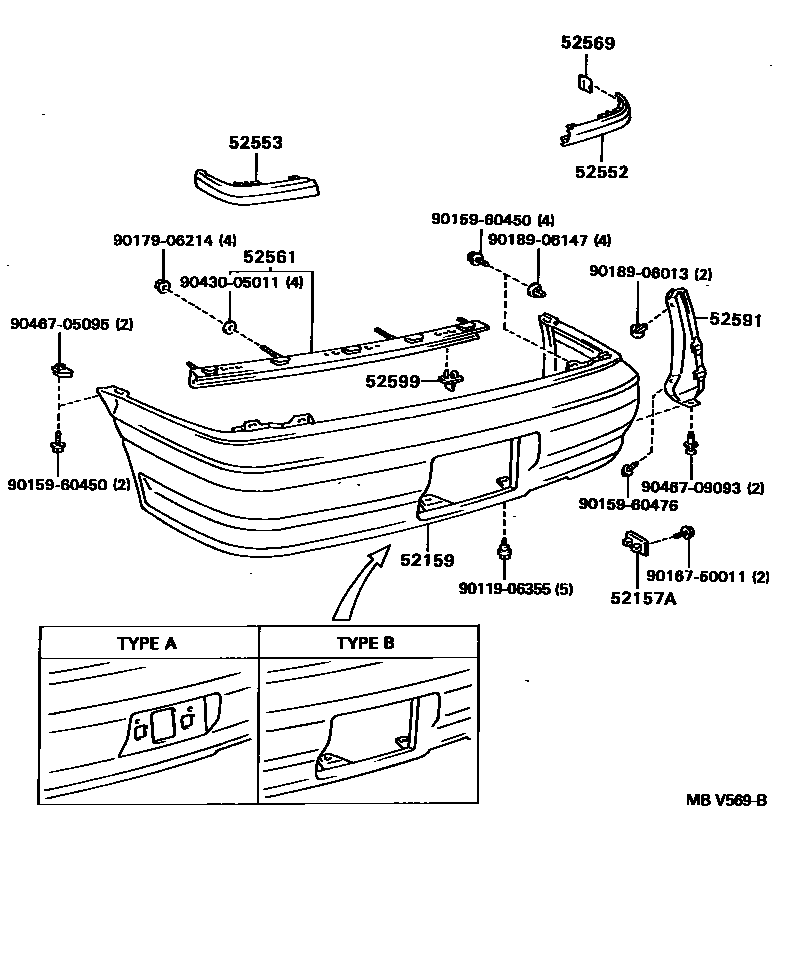

REAR BUMPER & BUMPER STAY

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-16110iEL40199009-199409

52159COVER, REAR BUMPER

main52159-16370iEL40199009-199409

main52159-16901iEL40199009-199208

FOR GRAY PAINTED BUMPER

main52159-16902iEL40199009-199104

FOR GRAY PAINTED BUMPER

52552FILLER, REAR BUMPER, RH

main52552-16020iEL40199009-199409

52553FILLER, REAR BUMPER, LH

main52553-16020iEL40199009-199409

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-16050iEL40199009-199409

52569PAD, REAR BUMPER FILLER

main52569-16010×2iEL40199009-199409

52591SEAL, REAR BUMPER SIDE, RH

main52591-16070iEL40199009-199409

52599STOPPER, REAR BUMPER, UPPER

main52599-16010×3iEL40199009-199409

9011906355

main90119-06355

9015960450

main90159-60450

9015960476

main90159-60476

9016750011

main90167-50011

9017906214

main90179-06214

9018906013

main90189-06013

9018906147

main90189-06147

9043005011

main90430-05011

9046705095

main90467-05095

9046709093

main90467-09093

18 parts on this diagram · 1 diagram in section
