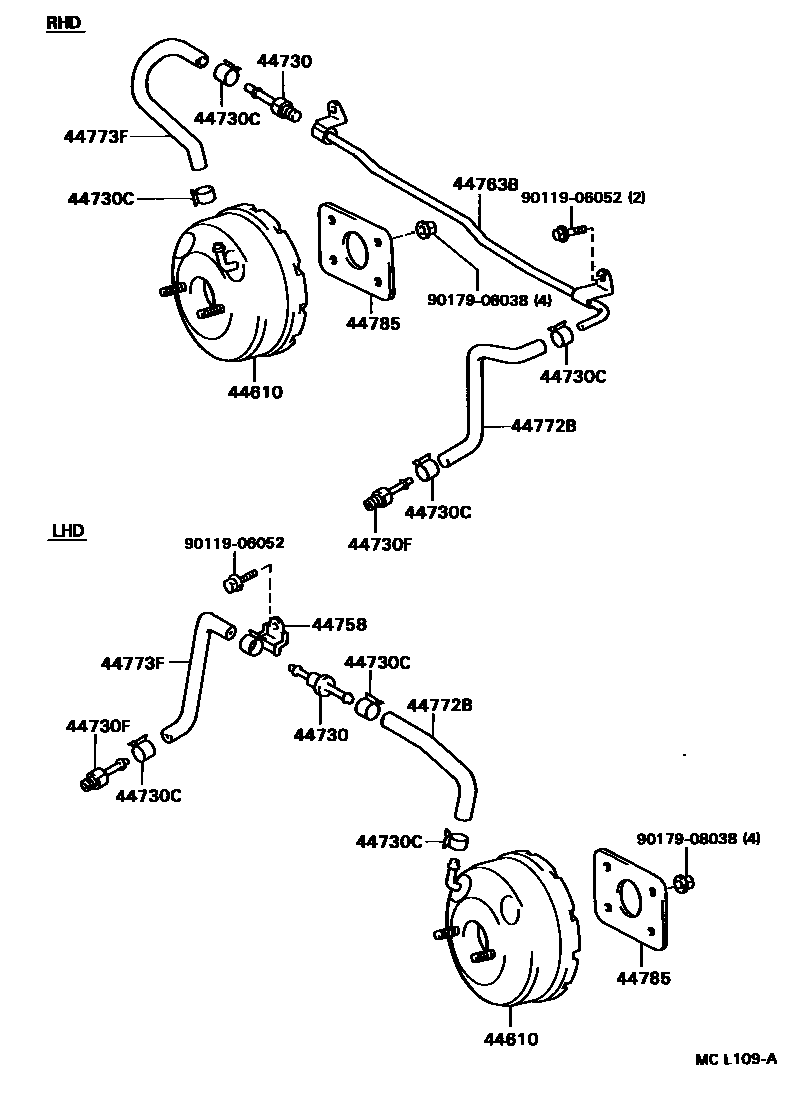

Toyota TERCEL — BRAKE BOOSTER & VACUUM TUBE
44730CCLIP(FOR VACUUM HOSE)
44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)
44758BRACKET, VACUUM CHECK VALVE
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44772BHOSE, CHECK VALVE TO BRAKE BOOSTER
44773FHOSE, UNION TO CHECK VALVE
44785GASKET, BRAKE BOOSTER
9011906052
9017908038
11 parts on this diagram · 1 diagram in section
BRAKE BOOSTER & VACUUM TUBE for Toyota TERCEL
This section contains 11 genuine Toyota parts for the BRAKE BOOSTER & VACUUM TUBE system of the Toyota TERCEL. Key components include: BOOSTER ASSY, BRAKE, VALVE ASSY, VACUUM CHECK(FOR BRAKE), CLIP(FOR VACUUM HOSE), UNION, VACUUM HOSE(FOR MANIFOLD SIDE), BRACKET, VACUUM CHECK VALVE.
