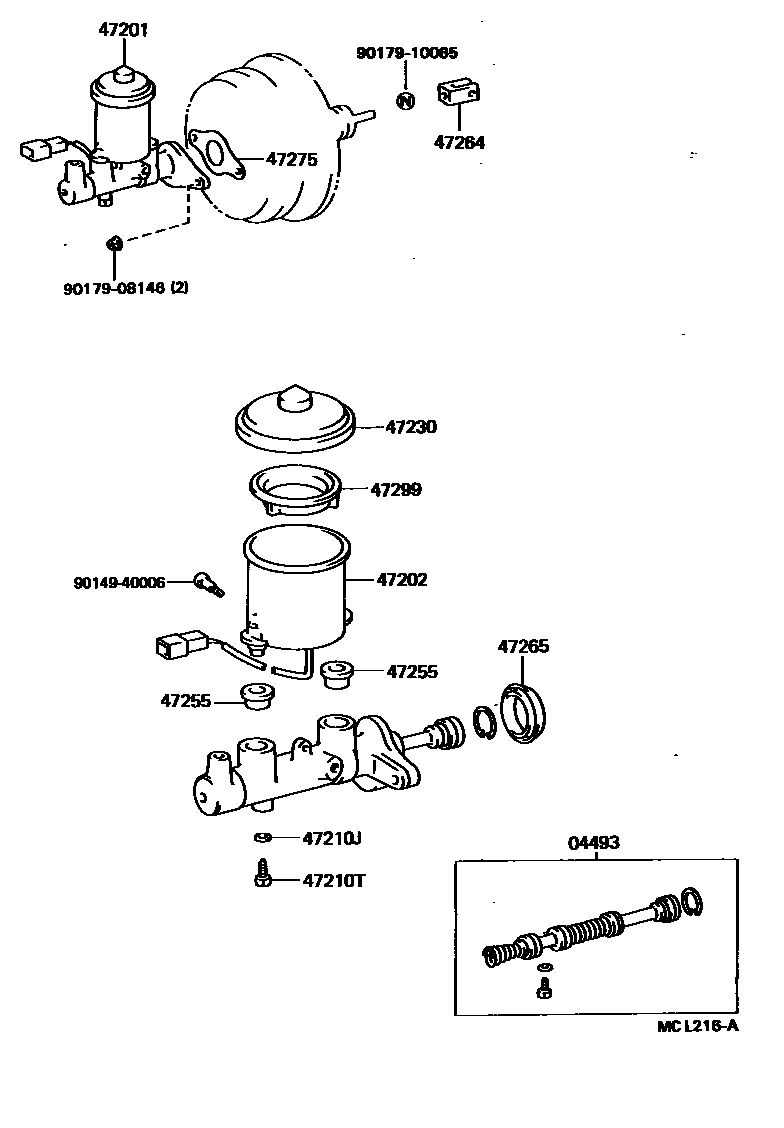

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-12180iEL40..RHD199208-199409

main04493-16030iEL40..RHD199009-199208

main04493-16070iEL40..LHD199009-199409

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16200iEL40..LHD199009-199409

main47201-18010iEL40..RHD199009-199409

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-10010iEL40..RHD199009-199409

main47220-16040iEL40..LHD199009-199409

47210JGASKET(FOR MASTER CYLINDER)

main90430-06002iEL40..LHD199009-199409

main90430-06104iEL40..RHD199009-199409

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEL40..RHD199009-199409

main90109-06123iEL40..LHD199009-199409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEL40199009-199409

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEL40..RHD199009-199409

main47255-20010iEL40..LHD199009-199409

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iEL40199009-199409

47265BOOT, MASTER CYLINDER

main47265-20050iEL40..RHD199009-199407

main47265-20080iEL40..LHD199009-199409

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEL40199212-199409

main47275-14010iEL40199009-199212

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEL40..RHD199009-199409

main47299-16020iEL40..LHD199009-199409

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
