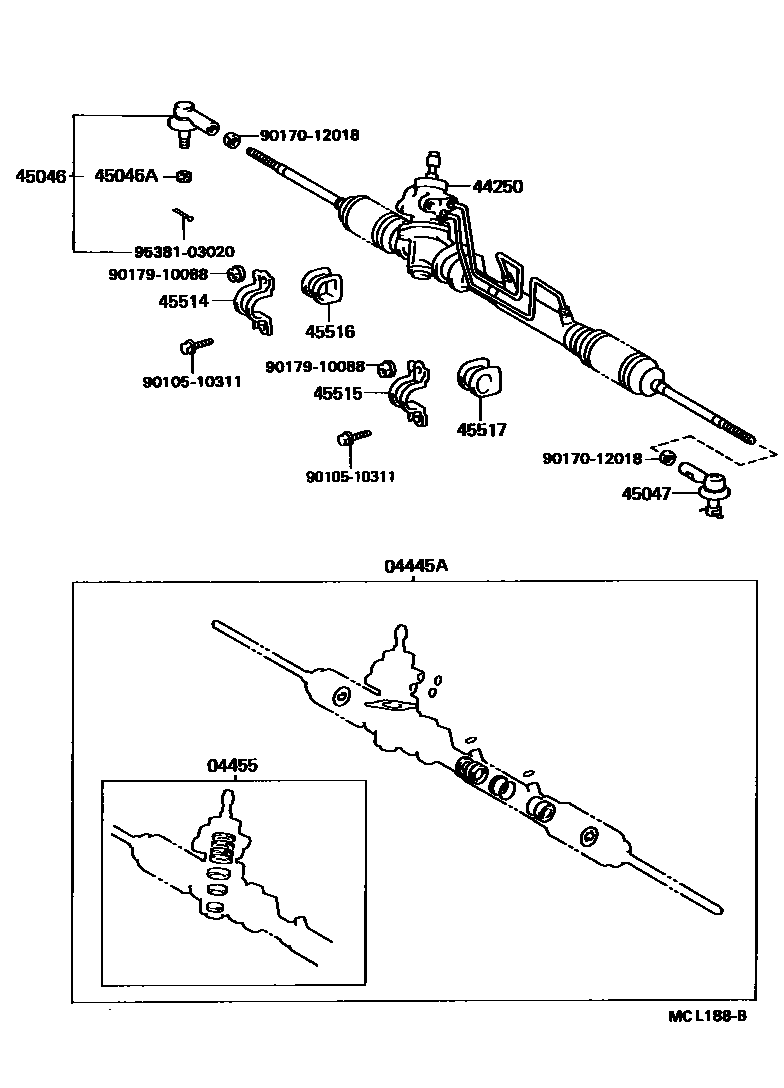

FRONT STEERING GEAR & LINK

0001 1POWER STREEING 0002 1POWER STREEING 0003 1POWER STREEING 0004 1POWER STREEING 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-10030iEL40..RHD199009-199409

main04445-16071iEL40..LHD199009-199409

sub04445-16080

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEL40..RHD199009-199409

main04455-16070iEL40..LHD199009-199409

sub04455-16080

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10120iEL40..RHD199208-199409

sub44250-10121

main44250-16140iEL40..LHD199009-199208

sub44250-16240

main44250-16150iEL40..RHD199009-199208

sub44250-10140

main44250-16160iEL40..LHD199208-199409

sub44250-16250

45046END SUB-ASSY, TIE ROD, RH

main45046-19205iEL40199009-199101

main45046-19206iEL40199101-199409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iEL40199009-199409

45047END SUB-ASSY, TIE ROD, LH

main45046-19205iEL40199009-199101

main45046-19206iEL40199101-199409

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16050iEL40199009-199409

main45514-16060iEL40199009-199409

W(POWER STEERING)

sub45514-16061

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEL40199009-199409

W(POWER STEERING)

sub45514-16061

main45515-10050iEL40199009-199409

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16050iEL40199009-199409

main45516-16060iEL40199009-199409

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEL40199009-199409

W(POWER STEERING)

main45517-10080iEL40199009-199409

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
