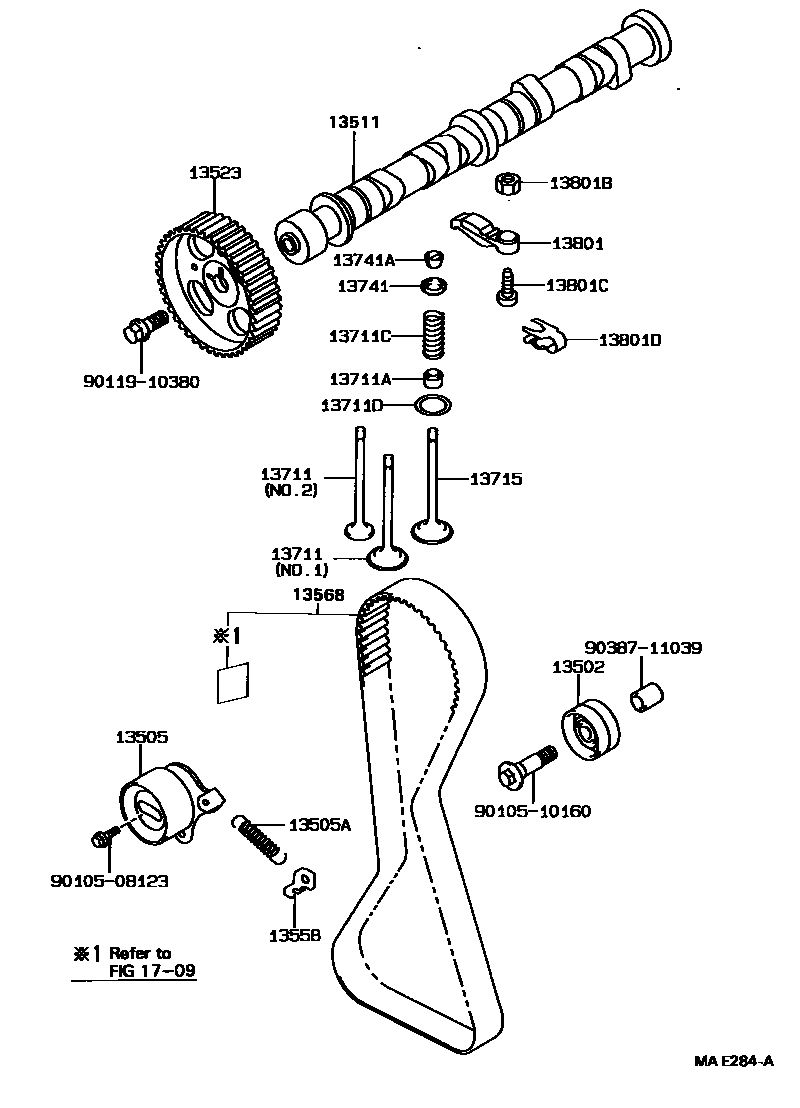

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13558BRACKET, SPRING(FOR IDLER)
13568BELT, TIMING
13711VALVE, INTAKE
NO.1
NO.2
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
1709CAUTION PLATE & NAME PLATE (ENGINE)
9010508123
main90105-08123
9010510160
main90105-10160
9011910380
main90119-10380
9038711039
main90387-11039
23 parts on this diagram · 1 diagram in section
