ENGINE OVERHAUL GASKET KIT

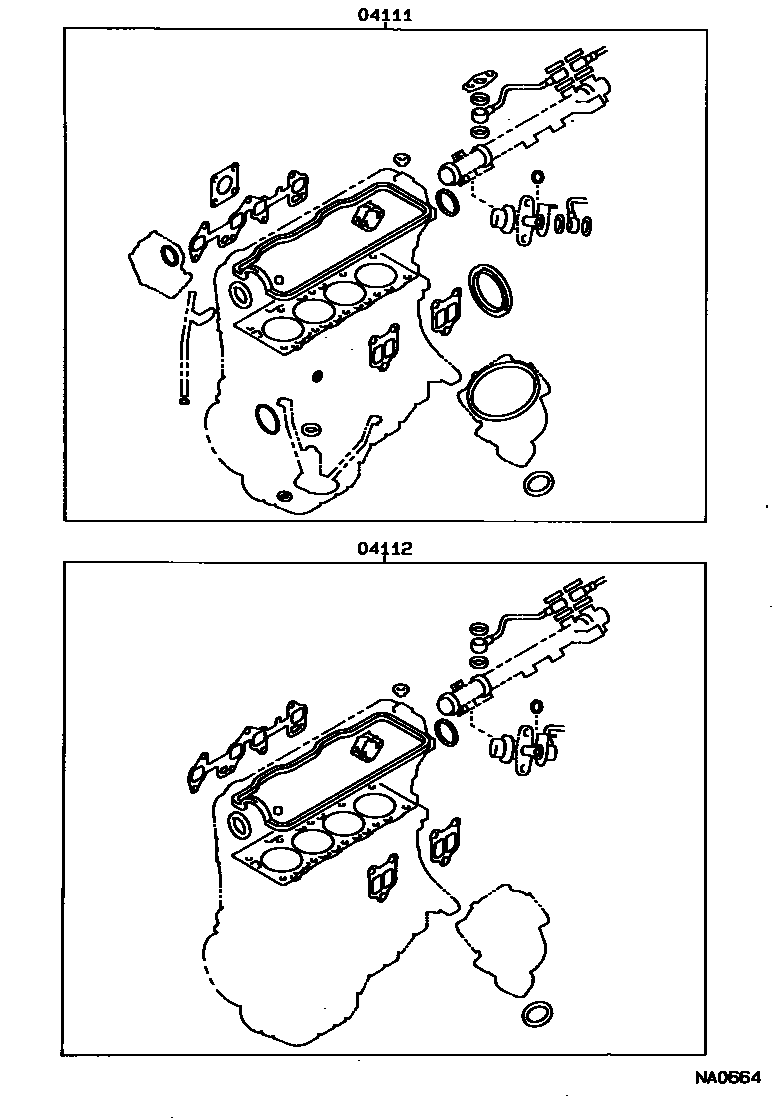

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11023i199009-199104
sub04111-11024
main04111-11024i199104-199309
sub04111-11025
main04111-11025i199309-199409
sub04111-11026
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11011i199009-199104
sub04112-11012
main04112-11012i199104-199409

2 parts on this diagram · 1 diagram in section
