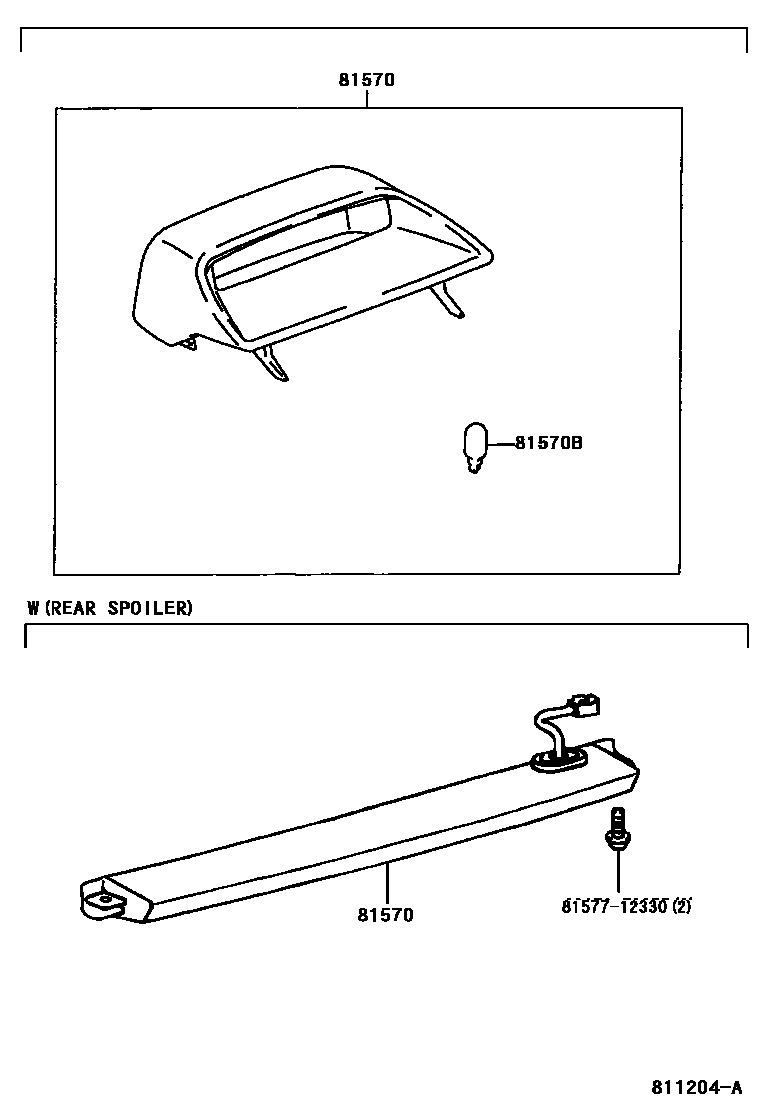

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-52040-B0iNCP1#..ARL,GCC200208-200212

SHADOW GRAY,TRIM1#

main81570-52040-B1iNCP1#200212-200512

DK.GRAY,TRIM1#

main81570-52040-E0iNCP1#200208-200512

FAWN,TRIM4#

main81570-52160iNCP1#200208-200512

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iNCP1#199908-200208

12V 16W

8157712330

main81577-12330

3 parts on this diagram · 1 diagram in section
