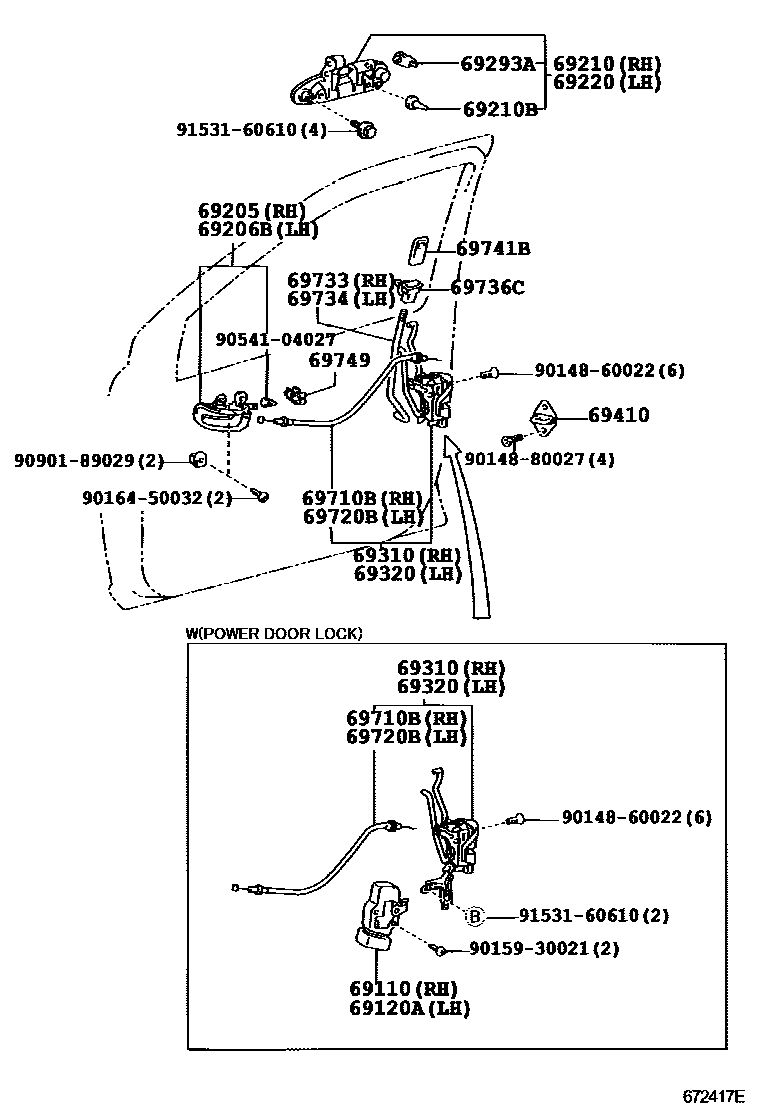

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(KEY LESS ENTRY)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(KEY LESS ENTRY)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
TRIM = TYPE A-*104,SILVER,TRIM1#,CHROME PLATED
sub69205-52020
TRIM = TYPE B-*104,SHADOW GRAY,TRIM1#,CHROME PLATED
sub69205-52020
TRIM = TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
sub69205-52040
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
TRIM = TYPE A-*104,SILVER,TRIM1#,CHROME PLATED
sub69206-52020
TRIM = TYPE B-*104,SHADOW GRAY,TRIM1#,CHROME PLATED
sub69206-52020
TRIM = TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1#
sub69206-52040
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK(LESS COLOR)
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749CLAMP, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880027
main90148-80027
9015930021
main90159-30021
9016450032
main90164-50032
9054104027
main90541-04027
9090189029
main90901-89029
9153160610
main91531-60610
25 parts on this diagram · 1 diagram in section
