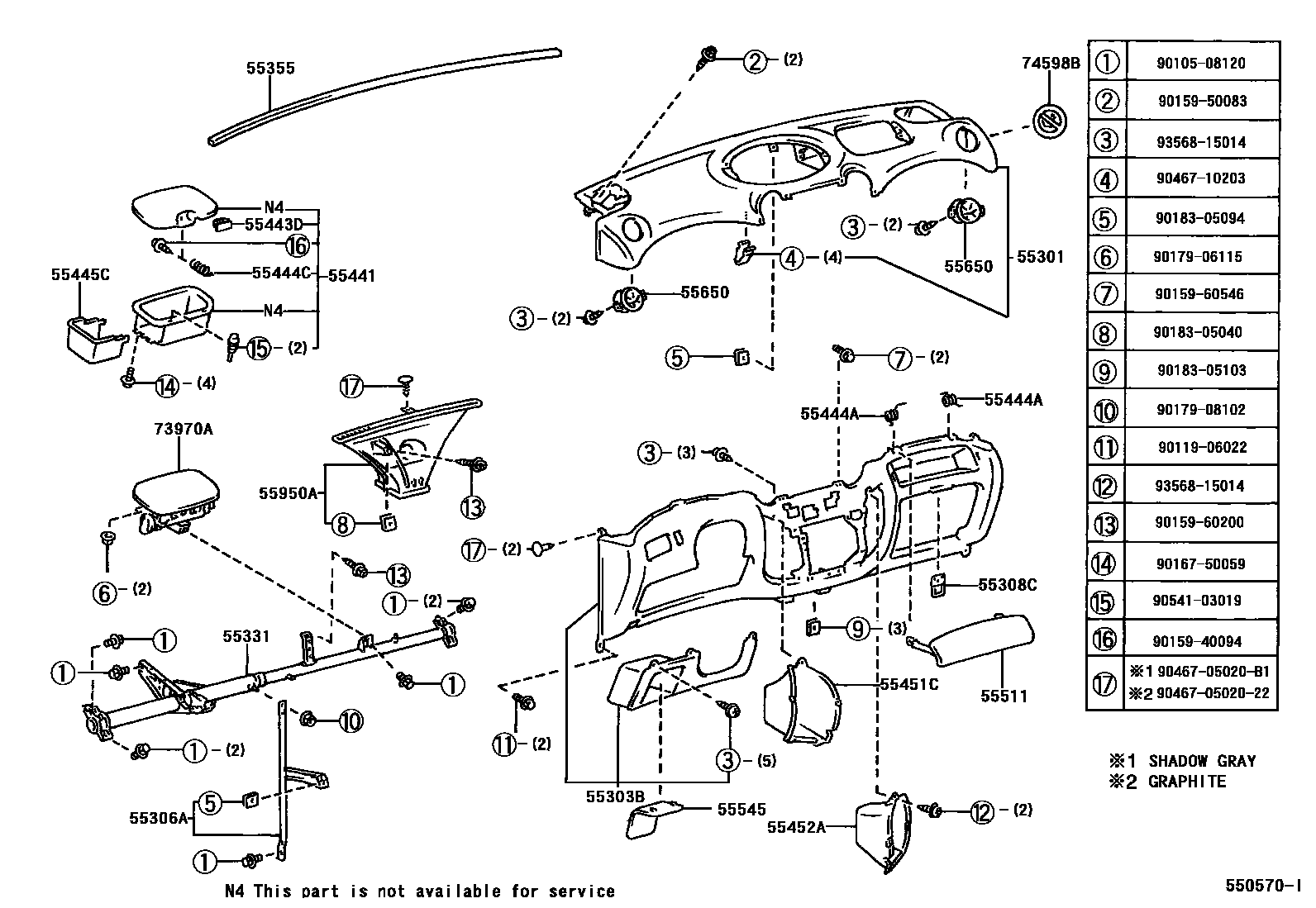

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52010-B0iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main55301-52010-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55301-52010-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55301-52010-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main55301-52020-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55301-52020-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

main55301-52140-B0iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main55301-52140-B1iNCP12..ARL200208-200212

SHADOW GRAY,TRIM1#

main55301-52140-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52901-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55303-52901-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

main55303-52901-B3iNCP1#..RHD200212

SHADOW GRAY,TRIM94

main55303-52901-B4iNCP12..ARL200210

MD. GRAY,TRIM1#

main55303-52901-B5iNCP12..ARL200210-200212

DK. GRAY,TRIM1#

main55303-52901-E0iNCP1#..RHD200208

M. NEUTRAL BONE,TRIM4#

main55303-52902-B0iNCP1#..LHD199908-200208

SHADOW GRAY,TRIM1#

main55303-52902-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55303-52902-B4iNCP1#..LHD200208-200601

MD. GRAY,TRIM1#

main55303-52902-E0iNCP1#..LHD200208-200601

M. NEUTRAL BONE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52011iNCP1#..LHD199908-200208

main55306-52021iNCP1#..RHD200208

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52010iNCP1#199908-200204

main55308-52080iNCP1#200208

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52010iNCP1#..LHD200208

main55330-52020iNCP1#..LHD200208

W(*80,DRIVER SIDE & PASSENGER SIDE)

main55330-52041iNCP1#..RHD199908-200208

main55330-52350iNCP1#..RHD200208

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52011iNCP1#199908-199909

main55355-52012iNCP1#199909-200208

main55355-52150iNCP1#200501

55441BOX, INSTRUMENT PANEL

main55440-52030-B0iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main55440-52030-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55440-52030-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55440-52030-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main55440-52040-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55440-52040-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

55443DKNOB, INSTRUMENT PANEL BOX DOOR

main55443-52010-B0iNCP1#199908-200208

SHADOW GRAY,TRIM1#

main55443-52010-B1iNCP1#199908-200208

AMETHYST,TRIM9#

main55443-52010-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55443-52010-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52020×2iNCP1#..LHD199908-200208

main55444-52040×2iNCP1#..RHD200208

55444CSPRING, INSTRUMENT PANEL BOX

main55444-52080iNCP1#199908-200208

55445CPLATE, INSTRUMENT PANEL BOX

main55445-52030-B0iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main55445-52030-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55445-52030-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55445-52030-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main55445-52040-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55445-52040-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-52010-B0iNCP1#..LHD199908-200208

SHADOW GRAY,TRIM1#

main55451-52010-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55451-52020-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55451-52020-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

main55451-52050-B0iNCP12..ARL200208-200212

SHADOW GRAY,TRIM1#

main55451-52050-B1iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main55451-52050-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

main55451-52080-B0iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55451-52080-B1iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main55451-52080-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

55452ABOX, INSTRUMENT PANEL, NO.2

main55452-52010-B0iNCP1#..LHD199908-200208

SHADOW GRAY,TRIM1#

main55452-52010-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main55452-52020-B0iNCP1#..RHD199908-200208

SHADOW GRAY,TRIM1#

main55452-52020-B1iNCP1#..RHD199908-200208

AMETHYST,TRIM9#

main55452-52060-B0iNCP12..ARL200208-200212

SHADOW GRAY,TRIM1#

main55452-52060-B1iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main55452-52060-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

main55452-52080-B0iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55452-52080-B1iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main55452-52080-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

55511DOOR, GLOVE COMPARTMENT

main55501-52010-B0iNCP11..GCC200208-200212

MD.GRAY,TRIM1#

main55501-52010-B1iNCP1#..LHD199908-200208

LT.AMETHYST,TRIM9#

main55501-52010-E0iNCP1#..LHD200208-200212

MD.NEUTRAL BONE,TRIM4#

main55501-52020-B0iNCP1#..RHD199908-200208

MD.GRAY,TRIM1#

main55501-52020-B1iNCP1#..RHD199908-200208

LT.AMETHYST,TRIM9#

main55501-52050-B0iNCP1#..RHD200212-200512

MD.GRAY,TRIM1#

main55501-52050-B1iNCP12..ARL200208-200212

MD.GRAY,TRIM1#

main55501-52050-E0iNCP1#..RHD200208-200512

MD.NEUTRAL BONE,TRIM4#

main55501-52060-B1iNCP1#..LHD200212-200512

MD.GRAY,TRIM1#

main55501-52060-E0iNCP1#..LHD200212-200512

MD.NEUTRAL BONE,TRIM4#

55545COVER, FUSE BOX OPENING

main55545-52010-B0iNCP1#..ARL,GCC200208-200212

MD.GRAY,TRIM1#

main55545-52010-B1iNCP1#199908-200208

LT.AMETHYST,TRIM9#

main55545-52010-B5iNCP1#200212-200512

MD.GRAY,TRIM1#

main55545-52010-E0iNCP1#200208-200512

MD.NEUTRAL BONE,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-52010-B0×2iNCP1#199908-200208

SHADOW GRAY,TRIM1#

main55650-52010-B1×2iNCP1#199908-200208

AMETHYST,TRIM9#

main55650-52010-B2×2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main55650-52010-E0×2iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main55650-52080-B0×2iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main55650-52080-B1×2iNCP12..ARL200208-200212

SHADOW GRAY,TRIM1#

main55650-52080-E0×2iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

55950ANOZZLE ASSY, DEFROSTER

main55950-52010iNCP1#..LHD199908-200208

main55950-52020iNCP1#..RHD199908-200208

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52010-B0iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main73970-52010-B1iNCP1#..LHD199908-200208

AMETHYST,TRIM9#

main73970-52010-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main73970-52010-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main73970-52020-B0iNCP1#..RHD199908-200112

SHADOW GRAY,TRIM1#

main73970-52020-B1iNCP1#..RHD199908-200112

AMETHYST,TRIM9#

main73970-52080-B0iNCP1#..RHD200112-200208

SHADOW GRAY,TRIM1#

main73970-52080-B1iNCP1#..RHD200112-200208

AMETHYST,TRIM9#

main73970-52130-B0iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main73970-52130-B1iNCP12..ARL200208-200212

SHADOW GRAY,TRIM1#

main73970-52130-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iNCP1#199908-200208

9010508120

main90105-08120

9011906022

main90119-06022

9015940094

main90159-40094

9015950083

main90159-50083

9015960200

main90159-60200

9015960546

main90159-60546

9016750059

main90167-50059

9017906115

main90179-06115

9017908102

main90179-08102

9018305040

main90183-05040

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046705020B1

main90467-05020B1

9046710203

main90467-10203

9054103019

main90541-03019

9356815014

main93568-15014

36 parts on this diagram · 8 diagrams in section
