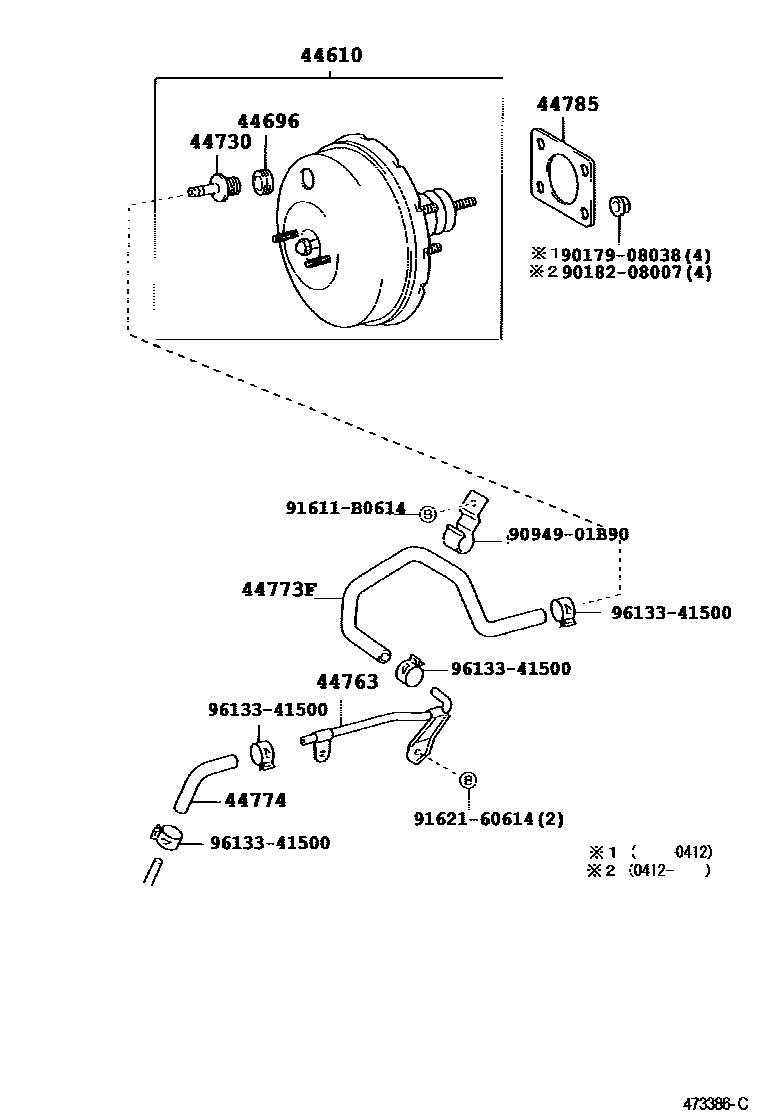

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-52020iNCP11..RHD200008-200109

EXHAUST EMISSION CONTROL

main44610-52021iNCP1#..RHD200208-200410

main44610-52022iNCP1#..RHD200411-200512

main44610-52030iNCP1#..LHD199908-200008

main44610-52040iNCP1#..RHD200101-200208

main44610-52050iNCP1#..LHD200208-200309

main44610-52051iNCP1#..LHD200309-200512

44696GROMMET, CHECK VALVE

main90480-24015iNCP1#..LHD199908-200008

main90480-24439iNCP1#..RHD200411-200512

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP1#..RHD199908-200008

main44730-28030iNCP1#..LHD200305-200512

main44730-30010iNCP1#200101-200208

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP1#199908-200208

44773FHOSE, UNION TO CHECK VALVE

main44773-52020iNCP1#..RHD199908-200208

main44773-52040iNCP1#..LHD199908-200208

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP1#199908-200208

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP1#199908-200208

9017908038

main90179-08038

9018208007

main90182-08007

9094901B90

main90949-01B90

91611B0614

main91611-B0614

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 2 diagrams in section
