STEERING WHEEL

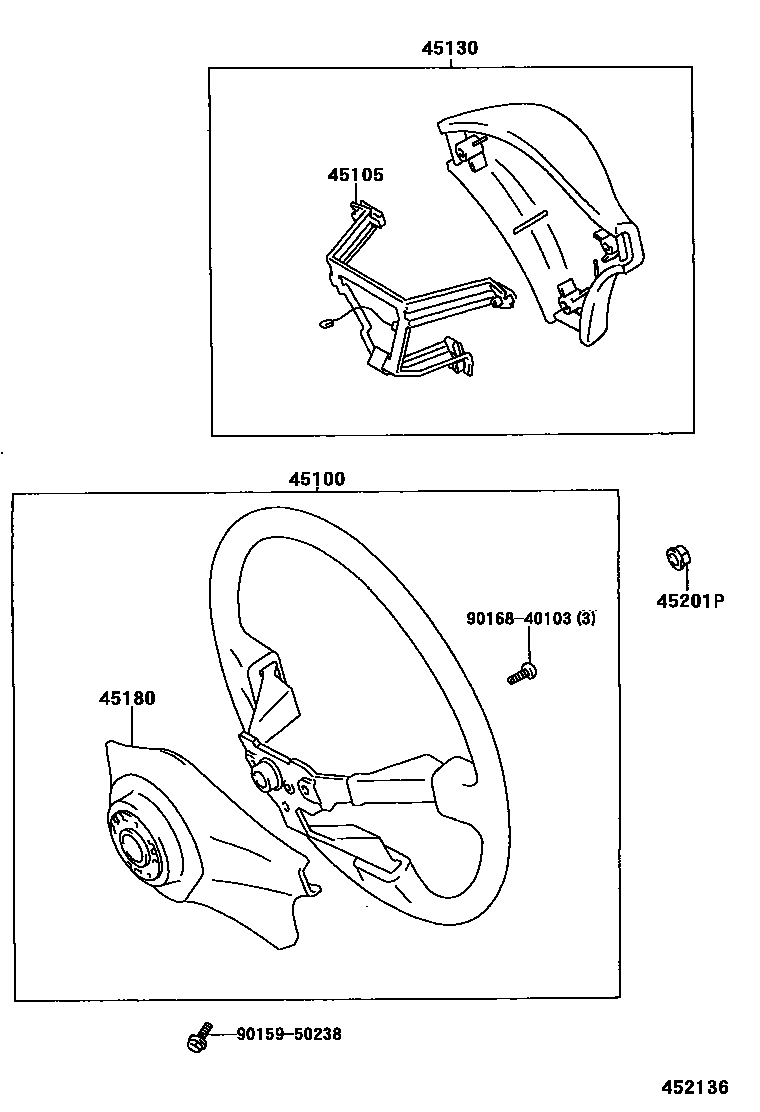

Parts diagram

45100WHEEL ASSY, STEERING

main45100-16450-B2i199908-200208

3-SPOKE,URETHANE,MD.GRAY,TRIM1#

main45100-16450-B3i199908-200208

3-SPOKE,URETHANE,LT.AMETHYST,TRIM9#

main45100-16450-B4i200212-200512

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-16450-E0i200208-200512

3-SPOKE,URETHANE,SANDAL WOOD,TRIM4#

main45100-52010-B0i199908-200208

3-SPOKE,URETHANE,W(AIR BAG),MD.GRAY,TRIM1#

main45100-52010-B1i199908-200208

3-SPOKE,URETHANE,W(AIR BAG),LT.AMETHYST,TRIM9#

main45100-52070-B1i200212-200512

3-SPOKE,URETHANE,W(AIR BAG),DK.GRAY,TRIM1#

main45100-52070-B2i200208-200212

3-SPOKE,URETHANE,MD.GRAY,TRIM1#

main45100-52070-E0i200208-200512

3-SPOKE,URETHANE,W(AIR BAG),SANDAL WOOD,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-16200i199908-200208

45130BUTTON ASSY, HORN

main45130-16360-B2i199908-200208

MD.GRAY,TRIM1#

main45130-16360-B3i199908-200208

LT.AMETHYST,TRIM9#

main45130-16360-B4i200212-200512

DK.GRAY,TRIM1#

main45130-16360-E0i200208-200512

SANDAL WOOD,TRIM4#

main45130-52020-B0i199908-200001

W(*80),MD.GRAY,TRIM1#

main45130-52020-B1i199908-200001

W(*80),LT.AMETHYST,TRIM9#

main45130-52021-B0i200001-200208

W(*80),MD.GRAY,TRIM1#

main45130-52021-B1i200001-200208

W(*80),LT.AMETHYST,TRIM9#

main45130-52180-B1i200208-200212

W(AIR BAG),MD.GRAY,TRIM1#

main45130-52180-E0i200208-200212

W(AIR BAG),SANDAL WOOD,TRIM4#

main45130-52280-B1i200212-200512

W(AIR BAG),DK.GRAY,TRIM1#

main45130-52280-E0i200212-200512

W(AIR BAG),SANDAL WOOD,TRIM4#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-16190-B2i199908-200208

MD.GRAY,TRIM1#

main45180-16190-B3i199908-200208

LT.AMETHYST,TRIM9#

main45180-16190-B4i200212-200512

DK.GRAY,TRIM1#

main45180-16190-E0i200208-200512

SANDAL WOOD,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12071i199908-200208

9015950238

main90159-50238

9016840103

main90168-40103

7 parts on this diagram · 2 diagrams in section
