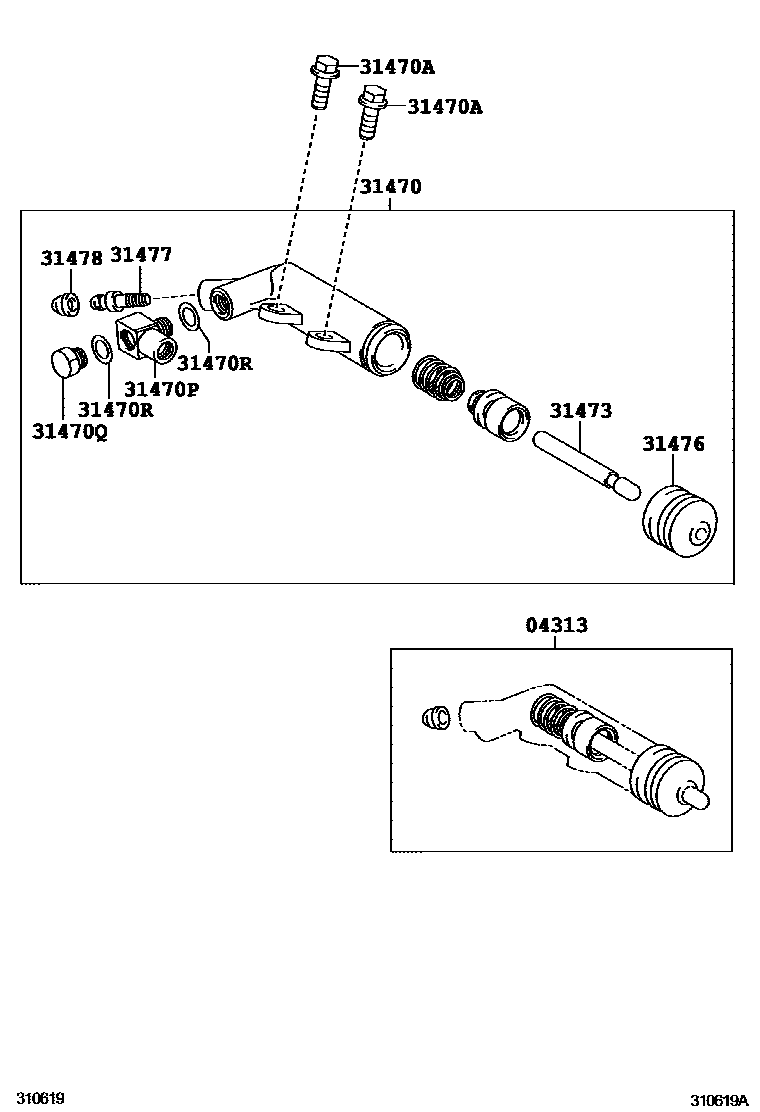

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-18020iNCP1#..MTM199908-200109

main04313-35060iNCP1#..MTM200109-200208

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52010iNCP1#..MTM199908-200109

sub31470-52011

main31470-52011iNCP1#..MTM200109-200208

sub31470-12200

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP1#..MTM199908-200208

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNCP1#..MTM199908-200208

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNCP1#..MTM199908-200208

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNCP1#..MTM200407-200601

main90430-10074iNCP1#..MTM199908-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iNCP1#..MTM199908-200208

main31473-35050iNCP1#..MTM200208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP1#..MTM199908-200208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP1#..MTM199908-200208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP1#..MTM199908-200208

10 parts on this diagram · 1 diagram in section
