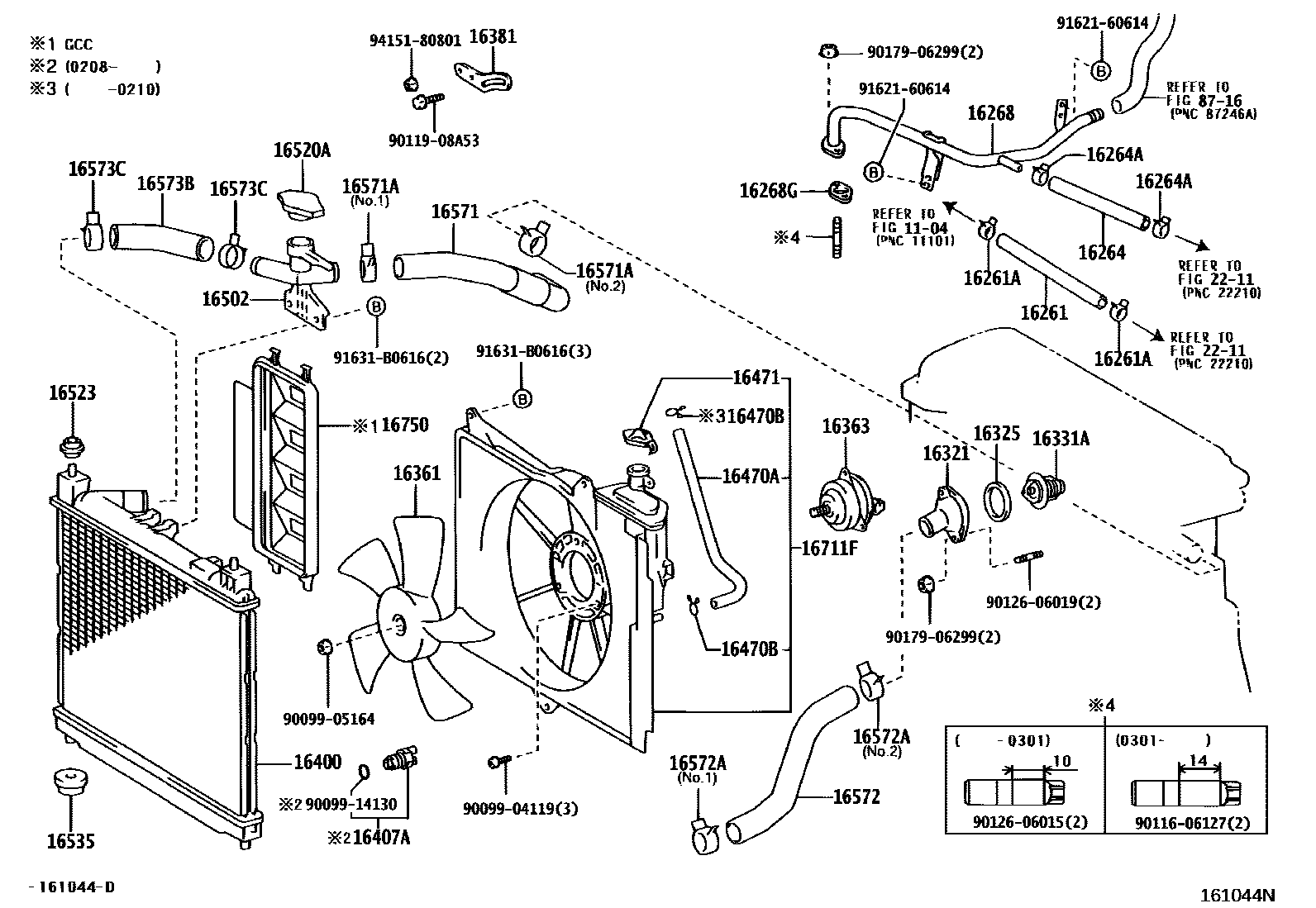

RADIATOR & WATER OUTLET

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16261HOSE, WATER BY-PASS

main99555-10185i1NZFE,2NZFE..NCP1#199908-200208

L=185

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13054×2i1NZFE,2NZFE..NCP1#199908-200208

16264HOSE, WATER BY-PASS, NO.2

main16261-21040i1NZFE,2NZFE..NCP1#200208

L=145

main99555-10200i1NZFE,2NZFE..NCP1#199908-200202

*H,L=150

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13054×2i1NZFE,2NZFE..NCP1#199908-200208

16268PIPE, WATER BY-PASS, NO.1

main16268-21020i1NZFE,2NZFE..NCP1#199908-200208

main16268-21021i1NZFE,2NZFE..NCP1#200301-200411

main16268-21022i1NZFE,2NZFE..NCP1#200411

16268GGASKET(FOR WATER BY-PASS PIPE)

main16258-21010i1NZFE,2NZFE..NCP1#199908-200001

main16258-21020i1NZFE,2NZFE..NCP1#200001-200208

16321INLET, WATER

main16321-21020i1NZFE,2NZFE..NCP1#199908-200208

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1NZFE,2NZFE..NCP1#200208

16331ATHERMOSTAT

main90916-03093i1NZFE,2NZFE..NCP1#199908-200208

*WAX 82-95

16361FAN

main16361-21030i2NZFE..NCP11..GEN199908-200004

main16361-21050i1NZFE..NCP12;2NZFE..NCP11..GCC200311

main16361-21080i2NZFE..NCP11..GEN200208

main16361-23050i1NZFE..NCP12;2NZFE..NCP11..GCC200208-200310

16363MOTOR, COOLING FAN

main16363-21050i1NZFE..NCP12;2NZFE..NCP11..GCC200307

main16363-23020i2NZFE..NCP11..GEN199908-200208

main16363-23030i1NZFE..NCP12;2NZFE..NCP11..GCC199908-200208

main16363-28150i2NZFE..NCP11..GEN200305

16381BAR, FAN BELT ADJUSTING

main16381-21020i2NZFE..NCP11199908-200208

main16381-21030i1NZFE..NCP12199908-200208

16400RADIATOR ASSY

main16400-21060i1NZFE..NCP12..MTM200208-200601

main16400-21070i1NZFE,2NZFE..NCP1#..ATM..(ARL,GEN)200208-200601

main16400-21080i2NZFE..NCP11..MTM..GEN200208-200512

main16400-21100i2NZFE..NCP11..MTM..GCC199908-200112

main16400-21110i2NZFE..NCP11..ATM..GCC199908-200112

main16400-21200i2NZFE..NCP11..MTM..GCC200112-200208

main16400-21210i2NZFE..NCP11..ATM..GCC200112-200208

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE,2NZFE..NCP1#200208

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21020i1NZFE,2NZFE..NCP1#200512

*H,L=545

main90445-12078i1NZFE,2NZFE..NCP1#199908-200208

*H,L=430

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE,2NZFE..NCP1#200210

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFE,2NZFE..NCP1#199908-200208

main16471-23030i1NZFE,2NZFE..NCP1#200512

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE,2NZFE..NCP1#199908-200208

16520ACAP SUB-ASSY, WATER FILLER

main16401-62100i1NZFE,2NZFE..NCP1#200208

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010×2i1NZFE,2NZFE..NCP1#200208

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i1NZFE,2NZFE..NCP1#199908-200208

16571HOSE, RADIATOR, INLET

main16571-21020i1NZFE,2NZFE..NCP1#199908-200208

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006×2i1NZFE,2NZFE..NCP1#200110-200208

NO.1 OR NO.2

main90467-34003i1NZFE,2NZFE..NCP1#199908-200110

NO.1

16572HOSE, RADIATOR, OUTLET

main16572-21020i1NZFE,2NZFE..NCP1#199908-200208

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE,2NZFE..NCP1#199908-200208

NO.2

main90467-34003i1NZFE,2NZFE..NCP1#199908-200208

NO.1

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE,2NZFE..NCP1#199908-200208

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE,2NZFE..NCP1#199908-200208

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21030i1NZFE,2NZFE..NCP1#199908-200208

main16711-21120i1NZFE,2NZFE..NCP1#200512-200601

16750DUCT ASSY, FAN SHROUD VENTILATION

main16750-21010i2NZFE..NCP11..GCC199908-200105

main16750-21011i2NZFE..NCP11..GCC200105-200208

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011606127

main90116-06127

9011908A53

main90119-08A53

9012606015

main90126-06015

9012606019

main90126-06019

9017906299

main90179-06299

9162160614

main91621-60614

91631B0616

main91631-B0616

9415180801

main94151-80801

43 parts on this diagram · 2 diagrams in section
