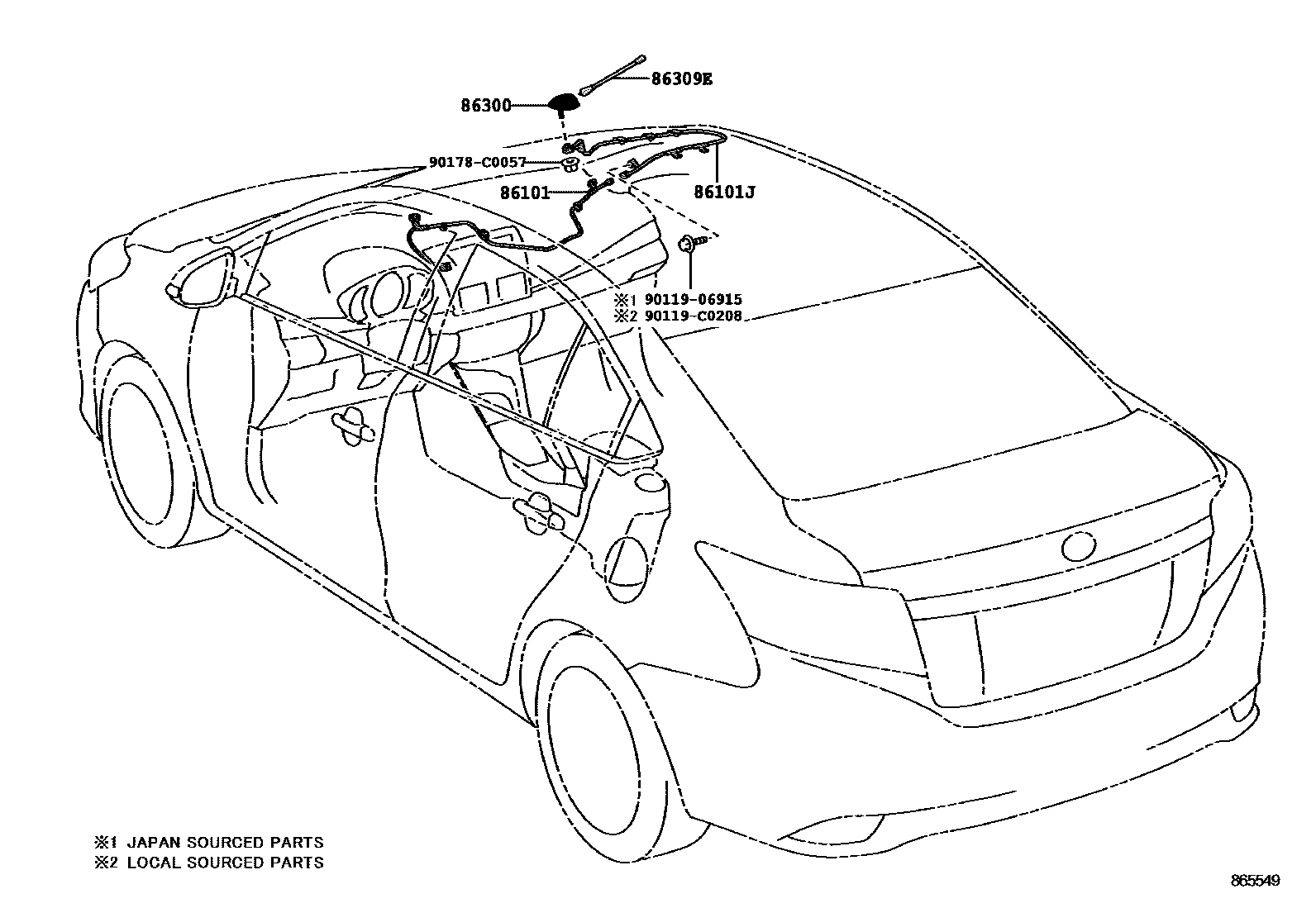

ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D480iNSP15#201311-201609

main86101-0D790iNSP150201609-202004

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D470iNSP15#201311-201609

main86101-0D770iNSP151..4D202008

main86101-0D780iNSP151..5D..(N,R)201703-202008

main86101-0DB40iNSP151..4D..G; NSP151..4D..N201609-202008

MOON ROOF-WITH

main86101-0DB50iNSP151..5D..G; NSP151..5D..N201703-202008

MOON ROOF-WITH

86300ANTENNA ASSY, W/HOLDER

main86300-0D190iNSP15#201311-201609

main86300-0D250iNSP150..4D201609-202004

main86300-0D340iNSP150..5D201703-202004

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D170iNSP15#201311-201609

main86309-0R030iNSP150201609-202004

9011906915

main90119-06915

90119C0208

main90119-C0208

90178C0057

main90178-C0057

7 parts on this diagram · 3 diagrams in section
