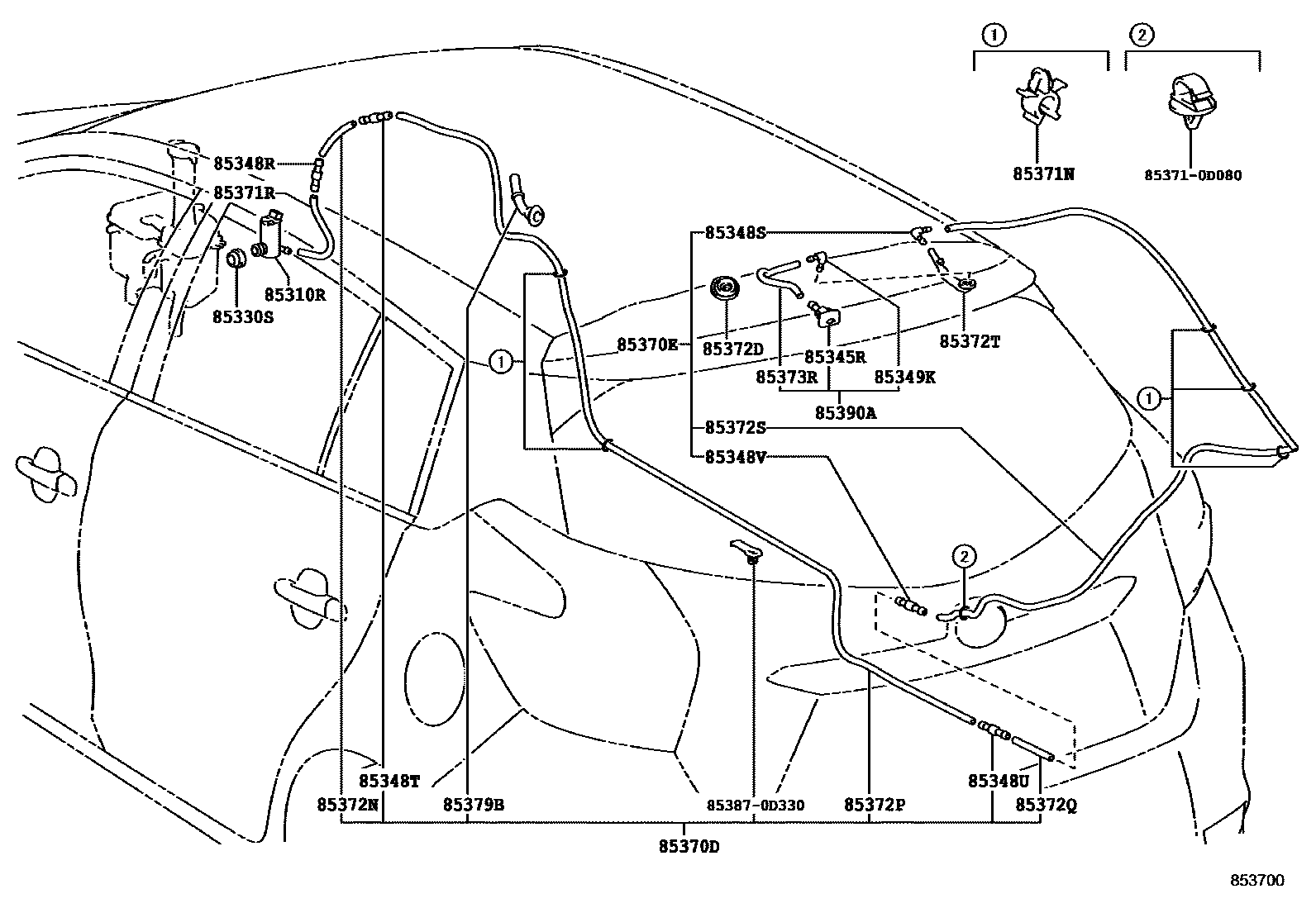

REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85371NCLAMP, REAR WASHER HOSE
(J)
(L)
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=190
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2290
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=50
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=2290
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=250
85379BGROMMET, WASHER, A
85390ANOZZLE & HOSE ASSY, RR WASHER
853710D080HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-0D080
853870D330CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-0D330
24 parts on this diagram · 1 diagram in section
