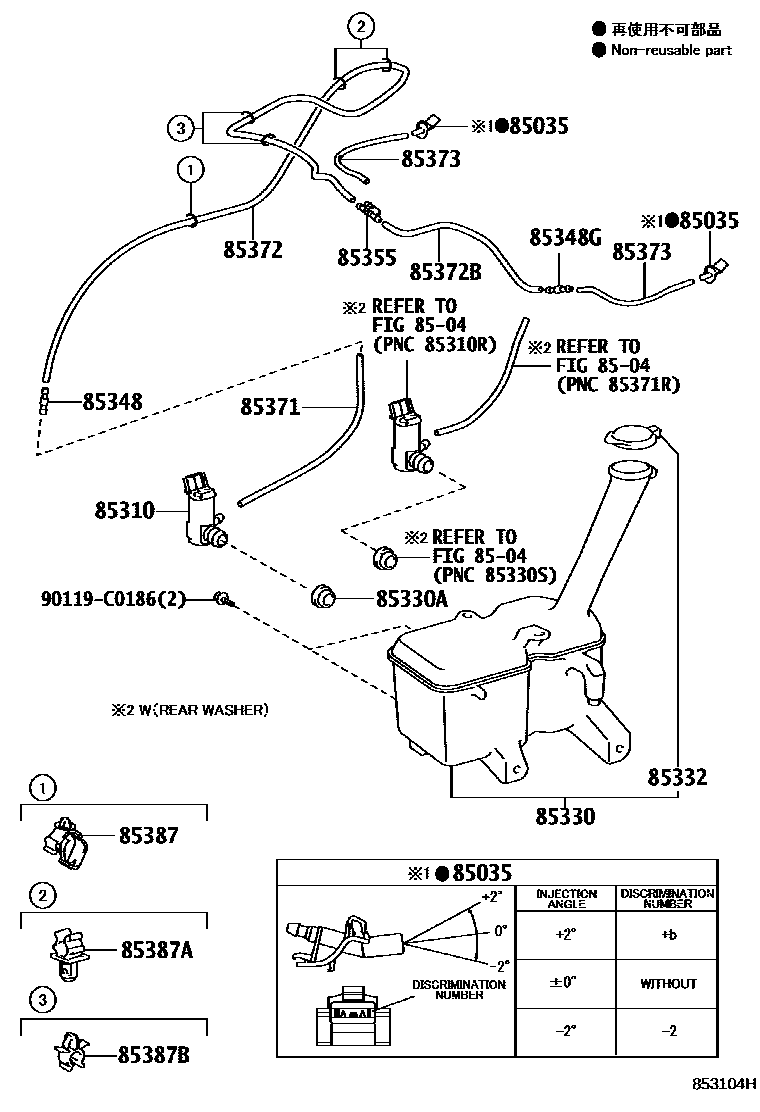

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iNSP151202008

ANGLE -2

main85381-30220×2iNSP151201609-202008

ANGLE +2

main85381-30230×2iNSP151201609-202008

ANGLE 0

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D130iNSP15#201311-201607

main85330-0D131iNSP15#201608-201609

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D200iNSP151..4D201609-202008

main85315-0D350iNSP151..5D201703-202008

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32006iNSP15#201311-201609

85332CAP, WINDSHIELD WASHER JAR

main85316-0D200iNSP15#201311-201609

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030iNSP15#201311-201609

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0D030iNSP15#201311-201609

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNSP15#201311-201609

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33188iNSP15#201311-201609

L=260

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59115iNSP15#201311-201609

L=1560

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59108iNSP15#201311-201609

L=305

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33193×2iNSP15#201311-201609

L=230

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0D070iNSP150201709-202004

(L)

main82711-3F230iNSP150201709-202004

(J)

85387ACLAMP, WASHER, NO.2

main85371-52110×2iNSP150201609-202004

85387BCLAMP, WASHER, NO.3

main90469-07011×2iNSP150201709-202004

(J)

main90469-C0014×2iNSP151201709-202008

(L)

90119C0186

main90119-C0186

17 parts on this diagram · 1 diagram in section
