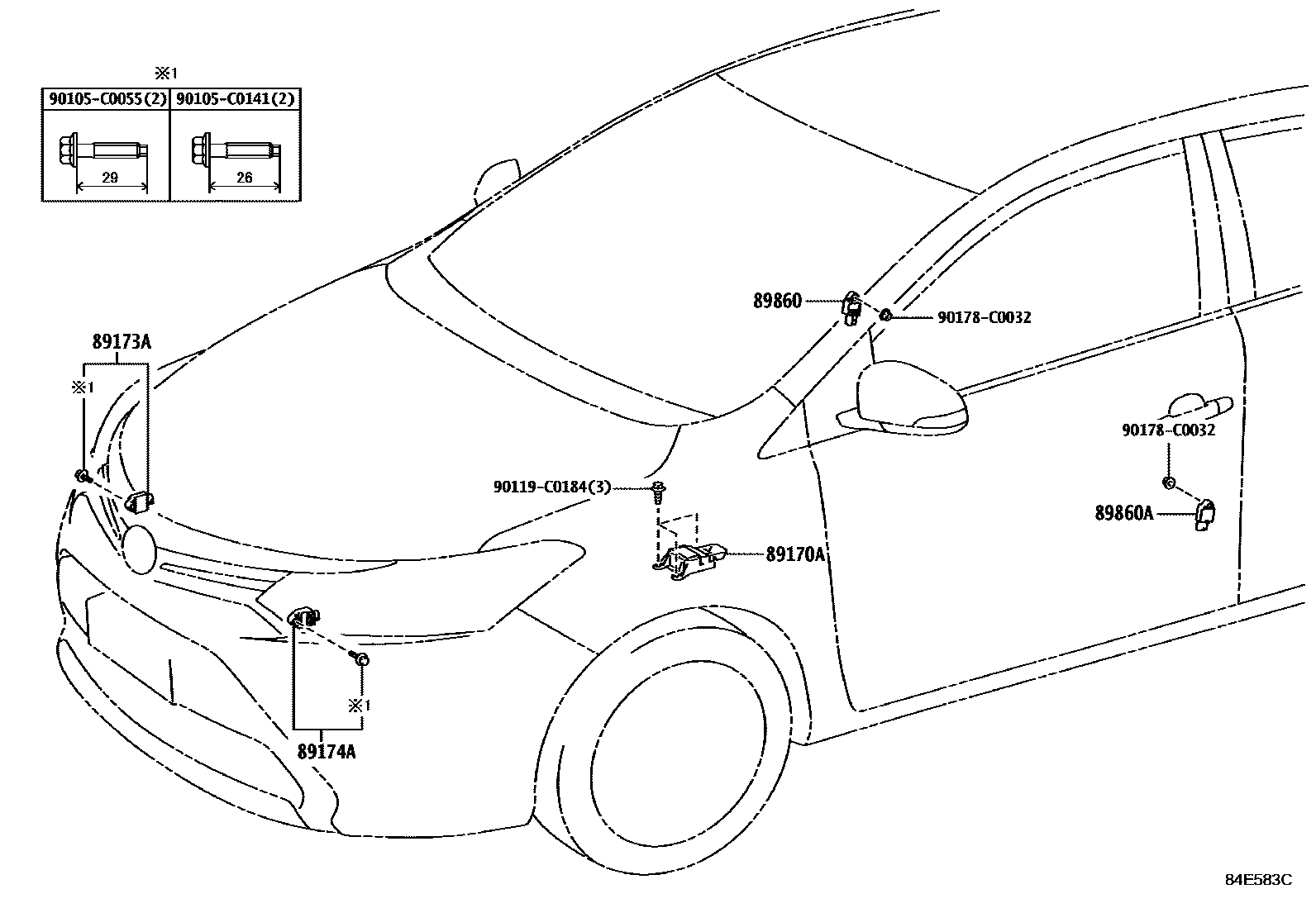

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0D650iNSP15#..R201311-201609

main89170-0D660iNSP15#..G,N201311-201609

main89170-0DA10iNSP15#..R201609-202008

main89170-0DA20iNSP151..G,N201609-202008

main89170-0DE80iNSP151202107

main89170-0DF00iNSP151202102-202107

main89170-0DE90iNSP151..N202107

MOON ROOF PACKAGE

main89170-0DF10iNSP151..N202102-202107

MOON ROOF PACKAGE

89173ASENSOR, AIRBAG, FRONT RH

main89173-09897iNSP15#201311-201609

main89173-09B10iNSP151202102-202109

MARK 89173-02110

main89173-09C10iNSP151202109

MARK 89173-0D100

main89173-79095iNSP151202102-202109

MARK 89173-78010

89174ASENSOR, AIRBAG, FRONT LH

main89173-09897iNSP15#201311-201609

main89173-09B10iNSP151202102-202109

MARK 89173-02110

main89173-09C10iNSP150201609-202004

main89173-79095iNSP151202102-202109

MARK 89173-78010

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0D020iNSP151..G,N201609-202008

main89831-02240iNSP151..N202102-202107

MOON ROOF PACKAGE,MARK 89831-02240

main89831-28060iNSP151..N202102-202107

MOON ROOF PACKAGE,MARK 89831-28060

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0D020iNSP151..G,N201609-202008

main89831-02240iNSP151..N202102-202107

MOON ROOF PACKAGE,MARK 89831-02240

main89831-28060iNSP151..N202102-202107

MOON ROOF PACKAGE,MARK 89831-28060

90105C0055

main90105-C0055

90105C0141

main90105-C0141

90119C0184

main90119-C0184

90178C0032

main90178-C0032

9 parts on this diagram · 1 diagram in section
