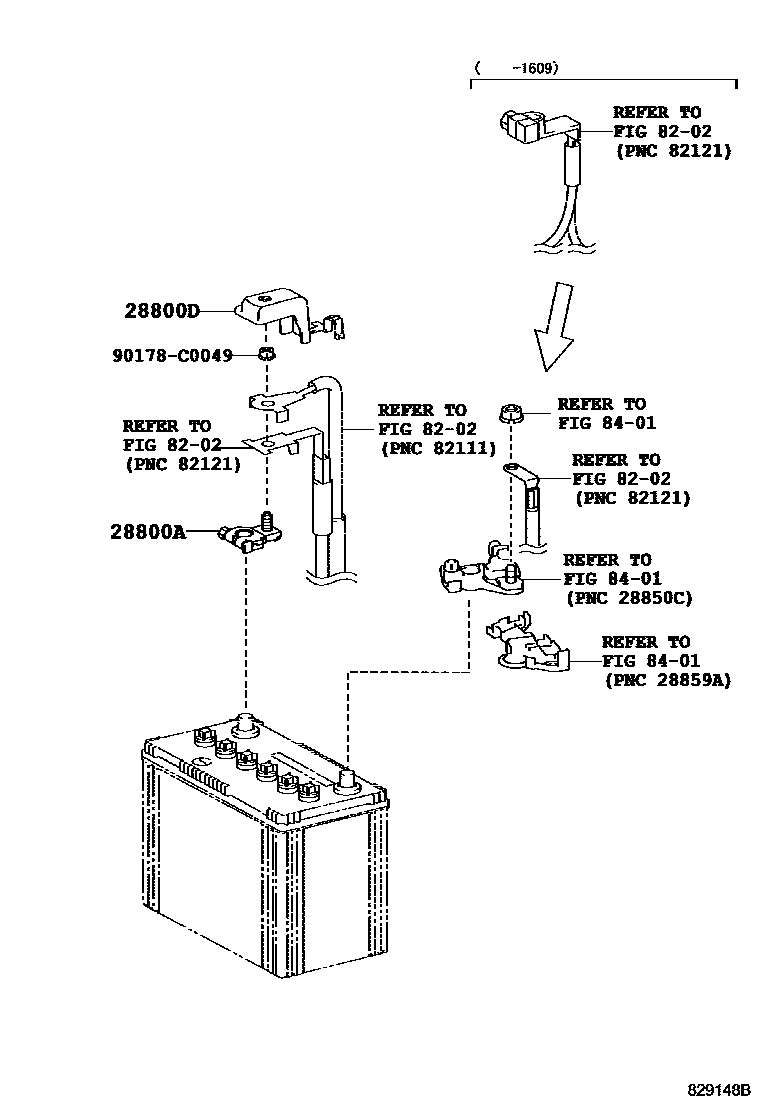

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i4NRFE,5NRF..NSP15#201311-201609

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i4NRFE,5NRF..NSP15#201311-201609

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178C0049

main90178-C0049

5 parts on this diagram · 1 diagram in section
