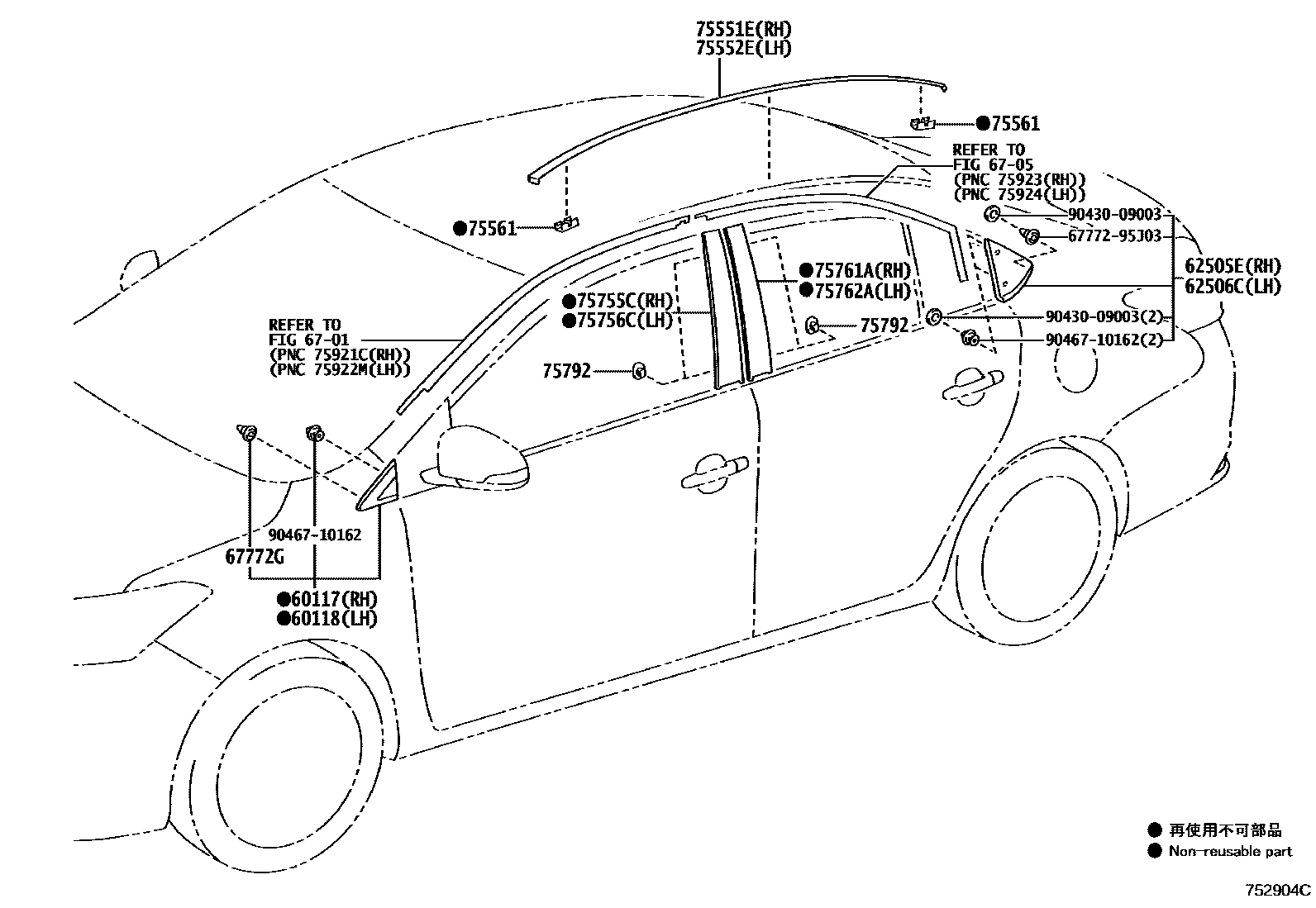

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0D120iNSP150201609-202004

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0D120iNSP151202008

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-0D010iNSP151..4D201609-202008

main62505-0D100iNSP151..5D201703-202008

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-0D010iNSP150..4D201609-202004

main62506-0D100iNSP151..5D201703-202008

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

67772GCAP, FRONT PILLAR COVER

main67772-95J03×2iNSP15#201311-201609

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0D150iNSP151..4D202008

main75551-0D260iNSP151..5D201703-202008

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0D100iNSP151..4D201609-202008

main75552-0D210iNSP151..5D201703-202008

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-02070×4iNSP151201807-202008

(L)

main75561-33030×4iNSP151202008

(J)

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-0D030iNSP151202008

NO PAINT REQ.

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-0D030iNSP15#201311-201609

NO PAINT REQ.

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-0D010iNSP15#201311-201609

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-0D010iNSP15#201311-201609

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D010×4iNSP15#201311-201609

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9043009003

main90430-09003

9046710162

main90467-10162

18 parts on this diagram · 2 diagrams in section
