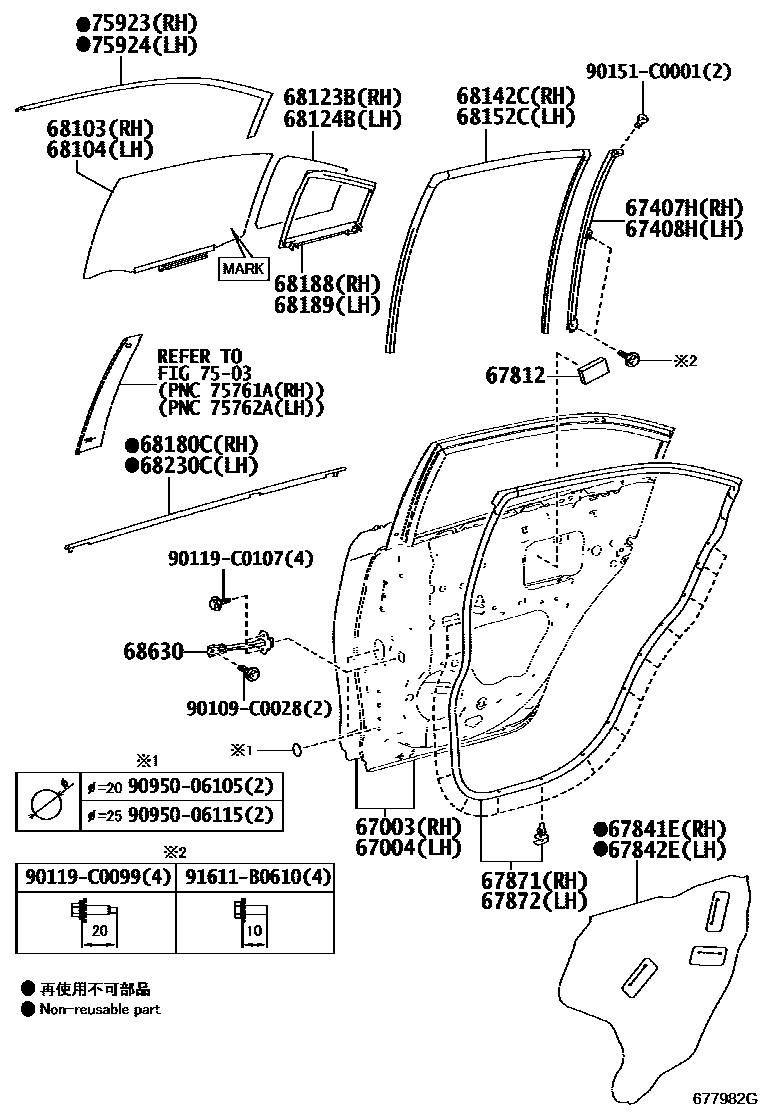

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D200iNSP151..4D201609-202008

main67003-0D520iNSP150..5D201703-202004

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D220iNSP15#201311-201609

main67004-0D540iNSP151..5D201703-202008

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D100iNSP15#201311-201609

main67407-0D220iNSP150..5D201703-202004

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D100iNSP151..4D201609-202008

main67408-0D220iNSP151..5D202008

67812PAD, REAR DOOR SILENCER

main67811-0N020×2iNSP150201609-202004

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D150iNSP151..G,N201609-202008

main67841-0D160iNSP15#..R201311-201609

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0D020iNSP151..G,N201609-202008

main67842-0D030iNSP15#..R201311-201609

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D100iNSP151..4D201609-202008

main67871-0D220iNSP151..5D201703-202008

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D100iNSP150..4D201609-202004

main67872-0D220iNSP150..5D201703-202004

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0D230iNSP15#..4D201708-201801

MARK=FUYAO(E000970)

main68130-0D370iNSP151..4D201801-202008

MARK=FUYAO(E006888)

main68130-0D430iNSP15#..5D201703-201708

main68130-0D630iNSP150..5D201802-202004

MARK=FUYAO(E006888)

main68130-0D660iNSP15#..4D201708-201801

MARK=FUYAO(E006888)

main68130-0D670iNSP15#..5D201708-201802

MARK=FUYAO(E006888)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0D230iNSP15#201311-201609

main68140-0D370iNSP150..4D201801-202004

MARK=FUYAO(E006888)

main68140-0D430iNSP15#..5D201708-201802

MARK=FUYAO(E000970)

main68140-0D630iNSP151..5D202008

MARK=FUYAO(E006888)

main68140-0D660iNSP15#..4D201708-201801

MARK=FUYAO(E006888)

main68140-0D670iNSP15#..5D201708-201802

MARK=FUYAO(E006888)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D140iNSP15#201311-201609

main68123-0D270iNSP151..4D202008

main68123-0D290iNSP15#..5D201703-201803

main68123-0D480iNSP151..5D201803-202008

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D140iNSP15#..4D201609-201803

main68124-0D270iNSP151..4D201803-202008

main68124-0D290iNSP15#..5D201703-201803

main68124-0D480iNSP151..5D201803-202008

68142CRUN, REAR DOOR GLASS, RH

main68142-0D130iNSP15#201311-201609

main68142-0D270iNSP151..5D201703-202008

68152CRUN, REAR DOOR GLASS, LH

main68152-0D110iNSP151..4D201609-202008

main68152-0D230iNSP151..5D202008

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D160iNSP150..4D201609-202004

main68180-0D320iNSP151..5D202008

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D100iNSP151..4D201609-202008

main68188-0D210iNSP151..5D201703-202008

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D100iNSP151..4D201609-202008

main68189-0D210iNSP151..5D201703-202008

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D160iNSP150..4D201609-202004

main68230-0D320iNSP151..5D202008

68630CHECK ASSY, REAR DOOR

main68630-0D160×2iNSP151201609-202008

7503SIDE MOULDING

→ Go to FIG 75-03

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D100iNSP15#..4D201609-201904

main75923-0D260iNSP151..5D202008

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D100iNSP15#..4D201904-202008

main75924-0D260iNSP15#..5D201904-202008

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9095006105

main90950-06105

9095006115

main90950-06115

91611B0610

main91611-B0610

30 parts on this diagram · 3 diagrams in section
