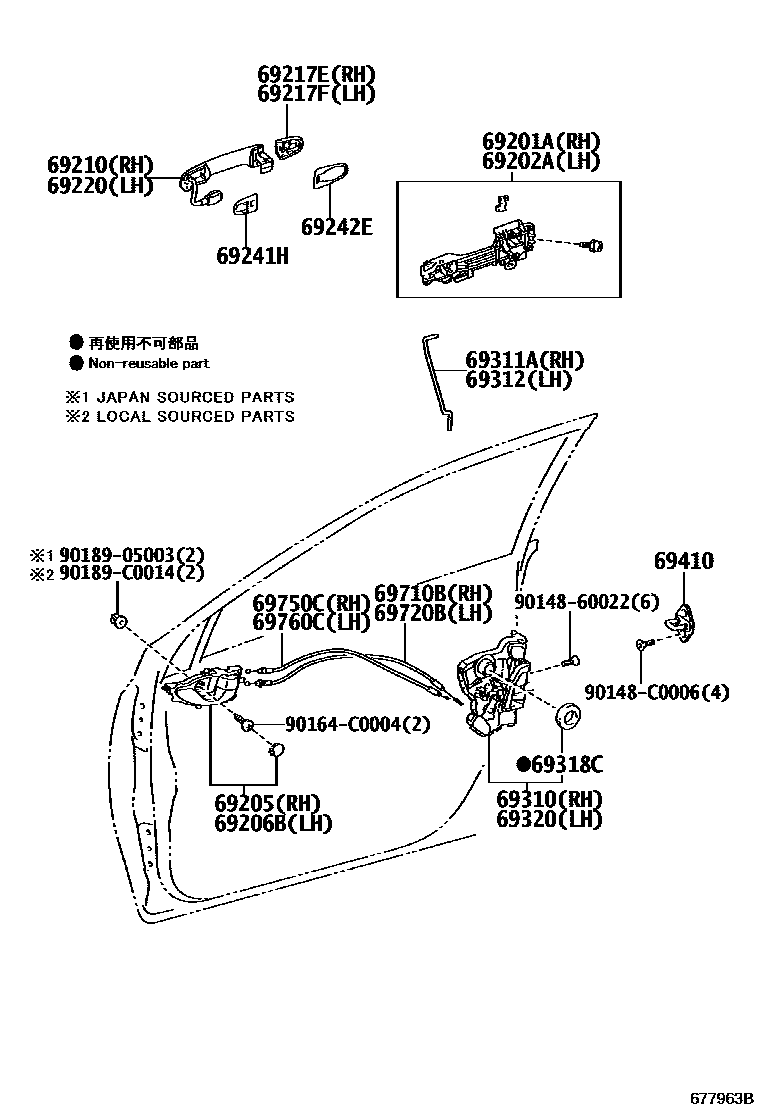

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02100iNSP151..N202008

main69201-0D120iNSP15#..N,R201311-201402

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02070iNSP15#..N,R201402-201609

main69202-0D080iNSP151..R202008

main69202-0D090supersedes 69202-02070iNSP151..G201609-202008

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D310-A0iNSP151..N,R201609-202008

IVORY,TRIM0#

main69205-0D310-C0iNSP15#..N,R201311-201609

BLACK,TRIM2#

main69205-0D340-A0iNSP151..G201609-202008

IVORY,TRIM0#

main69205-0D340-C0iNSP151..N202008

BLACK,TRIM1#,2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D310-A0iNSP151..N,R201609-202008

IVORY,TRIM0#

main69206-0D310-C0iNSP15#..N,R201311-201609

BLACK,TRIM2#

main69206-0D340-A0iNSP151..G201609-202008

IVORY,TRIM0#

main69206-0D340-C0iNSP151..G201410-201609

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02080iNSP151..G201311-201609

PLATED

main69211-02190-A1iNSP151..4D..R; NSP151..5D..R202008

SUPER WHITE 2,040; SUPER WHITE 2,040 ,2NR

main69211-02190-A2iNSP151..R202008-202111

WHITE PEARL CS.,070

main69211-02190-A3iNSP151..R202111

PLATINUM WHITE PEARL MC.,089

main69211-02190-B1iNSP15#..N,R201609-202008

SILVER ME.,1F7

main69211-02190-C0iNSP15#..N,R201402-201609

BLACK MC.,209

main69211-02190-D1iNSP151..4D..R; NSP151..5D..R202008

RED M.M.,2NU ,3R3; RED M.M.,3R3

main69211-02190-E4iNSP15#..N,R201402-201609

ORANGE ME.,4R8

main69211-02190-F3iNSP151..5D..R202008

LUMINOUS YELLOW,2QR ,5B5

main69211-02190-J7iNSP15#..N,R201402-201609

BLUE ME.,8V6

main69211-02190-K1iNSP15#..N,R201402-201609

GLITTER VIOLET M.M.,9AP

main69211-0D160iNSP151..N,R202004-202008

main69211-0D160-A0iNSP15#..N,R201311-201402

SUPER WHITE 2,040

main69211-0D160-B0iNSP151..R202008

SILVER ME.,1F7

main69211-0D160-C0iNSP151..R202008

BLACK MC.,209

main69211-0D160-D1iNSP15#..N,R201311-201402

RED M.M.,3R3

main69211-0D160-E0iNSP15#..N,R201311-201402

ORANGE ME.,4R8

main69211-0D160-E1iNSP15#..N,R201609-202004

SILKY BEIGE ME.,4W1

main69211-0D160-J0iNSP15#..N,R201311-201402

BLUE ME.,8V6

main69211-0D160-K0iNSP15#..N,R201311-201402

GLITTER VIOLET M.M.,9AP

main69211-0D310iNSP151..5F202008

NO PAINT REQ.,ENTRY PACKAGE

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02140-A0iNSP15#..N,R201609-202008

SUPER WHITE 2,040

main69217-02140-A1iNSP151..R202008-202111

WHITE PEARL CS.,070

main69217-02140-A3iNSP151..R202111

PLATINUM WHITE PEARL MC.,089

main69217-02140-B0iNSP15#..N,R201609-202008

SILVER ME.,1F7

main69217-02140-C0iNSP15#..N,R201402-201609

BLACK MC.,209

main69217-02140-D0iNSP151..4D..R; NSP151..5D..R202008

RED M.M.,2NU ,3R3; RED M.M.,3R3

main69217-02140-E4iNSP15#..N,R201402-201609

ORANGE ME.,4R8

main69217-02140-F1iNSP151..5D..R202008

LUMINOUS YELLOW,2QR ,5B5

main69217-02140-J6iNSP15#..N,R201402-201609

BLUE ME.,8V6

main69217-02140-K1iNSP15#..N,R201609-202007

GLITTER VIOLET M.M.,9AP

main69217-02160iNSP151..G201311-201609

*CR

main69217-0D150iNSP151..N,R202004-202008

main69217-0D150-A0iNSP15#..N,R201311-201402

SUPER WHITE 2,040

main69217-0D150-B0iNSP151..R202008

SILVER ME.,1F7

main69217-0D150-C0iNSP15#..N,R201311-201402

BLACK MC.,209

main69217-0D150-D1iNSP15#..N,R201311-201402

RED M.M.,3R3

main69217-0D150-E0iNSP15#..N,R201311-201402

ORANGE ME.,4R8

main69217-0D150-E1iNSP15#..N,R201609-202004

SILKY BEIGE ME.,4W1

main69217-0D150-J0iNSP15#..N,R201311-201402

BLUE ME.,8V6

main69217-0D150-K0iNSP15#..N,R201311-201402

GLITTER VIOLET M.M.,9AP

main69217-0D340iNSP150..5F201311-201609

BLACK PAINTED,ENTRY PACKAGE

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-02130iNSP151..G201311-201609

*CR

main69217-02170-A1iNSP151..4D..R; NSP151..5D..R202008

SUPER WHITE 2,040; SUPER WHITE 2,040 ,2NR

main69217-02170-A2iNSP151..R202008-202111

WHITE PEARL CS.,070

main69217-02170-A3iNSP151..R202111

PLATINUM WHITE PEARL MC.,089

main69217-02170-B1iNSP15#..N,R201609-202008

SILVER ME.,1F7

main69217-02170-C0iNSP15#..N,R201402-201609

BLACK MC.,209

main69217-02170-D1iNSP151..4D..R; NSP151..5D..R202008

RED M.M.,2NU ,3R3; RED M.M.,3R3

main69217-02170-E4iNSP15#..N,R201402-201609

ORANGE ME.,4R8

main69217-02170-F3iNSP151..5D..R202008

LUMINOUS YELLOW,2QR ,5B5

main69217-02170-J7iNSP15#..N,R201402-201609

BLUE ME.,8V6

main69217-02170-K1iNSP15#..N,R201609-202007

GLITTER VIOLET M.M.,9AP

main69217-0D140iNSP151..N,R202004-202008

main69217-0D140-A0iNSP15#..N,R201311-201402

SUPER WHITE 2,040

main69217-0D140-B0iNSP151..R202008

SILVER ME.,1F7

main69217-0D140-C0iNSP151..R202008

BLACK MC.,209

main69217-0D140-D1iNSP15#..N,R201311-201402

RED M.M.,3R3

main69217-0D140-E0iNSP15#..N,R201311-201402

ORANGE ME.,4R8

main69217-0D140-E1iNSP15#..N,R201609-202004

SILKY BEIGE ME.,4W1

main69217-0D140-J0iNSP15#..N,R201311-201402

BLUE ME.,8V6

main69217-0D140-K0iNSP15#..N,R201311-201402

GLITTER VIOLET M.M.,9AP

main69217-0D340iNSP150..5F201311-201609

BLACK PAINTED,ENTRY PACKAGE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0D200iNSP151..G201311-201609

PLATED

main69211-02190-A1iNSP151..4D..R; NSP151..5D..R202008

SUPER WHITE 2,040; SUPER WHITE 2,040 ,2NR

main69211-02190-A2iNSP151..R202008-202111

WHITE PEARL CS.,070

main69211-02190-A3iNSP151..R202111

PLATINUM WHITE PEARL MC.,089

main69211-02190-B1iNSP15#..N,R201609-202008

SILVER ME.,1F7

main69211-02190-C0iNSP15#..N,R201402-201609

BLACK MC.,209

main69211-02190-D1iNSP151..4D..R; NSP151..5D..R202008

RED M.M.,2NU ,3R3; RED M.M.,3R3

main69211-02190-E4iNSP15#..N,R201402-201609

ORANGE ME.,4R8

main69211-02190-F3iNSP151..5D..R202008

LUMINOUS YELLOW,2QR ,5B5

main69211-02190-J7iNSP15#..N,R201609-202008

BLUE ME.,8V6

main69211-02190-K1iNSP15#..N,R201609-202007

GLITTER VIOLET M.M.,9AP

main69211-0D160iNSP151..N,R202004-202008

main69211-0D160-A0iNSP15#..N,R201311-201402

SUPER WHITE 2,040

main69211-0D160-B0iNSP15#..N,R201311-201402

SILVER ME.,1F7

main69211-0D160-C0iNSP151..R202008

BLACK MC.,209

main69211-0D160-D1iNSP15#..N,R201311-201402

RED M.M.,3R3

main69211-0D160-E0iNSP15#..N,R201311-201402

ORANGE ME.,4R8

main69211-0D160-E1iNSP15#..N,R201609-202004

SILKY BEIGE ME.,4W1

main69211-0D160-J0iNSP15#..N,R201311-201402

BLUE ME.,8V6

main69211-0D160-K0iNSP15#..N,R201311-201402

GLITTER VIOLET M.M.,9AP

main69211-0D310iNSP150..5F201609-202004

NO PAINT REQ.,ENTRY PACKAGE

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02070×2iNSP151..G,R201311-201609

main69241-0D070×2iNSP15#..N,R201311-201402

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02070×2iNSP151..G,R201311-201609

main69242-0D030×2iNSP15#..N,R201311-201402

69310LOCK ASSY, FRONT DOOR, RH

main69030-0D440iNSP151202008

main69030-0D450iNSP151..G201609-202008

main69030-0D430iNSP151..5F202008

ENTRY PACKAGE

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0D140iNSP15#201311-201609

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0D140iNSP15#201311-201609

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iNSP15#201311-201609

69320LOCK ASSY, FRONT DOOR, LH

main69040-0D440iNSP15#201311-201609

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020×2iNSP15#201311-201609

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0D200iNSP15#201311-201609

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0D200iNSP15#201311-201609

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0D130iNSP15#201311-201609

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0D130iNSP15#201311-201609

9014860022

main90148-60022

90148C0006

main90148-C0006

90164C0004

main90164-C0004

9018905003

main90189-05003

90189C0014

main90189-C0014

25 parts on this diagram · 1 diagram in section
