PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D100iNSP15#201311-201511

main58387-0D101iNSP151..4D201609-202008

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iNSP15#..N,R; NSP151..G201609-201701

BLACK,TRIM0#; BLACK,TRIM0#,2#

main90467-08186-C3×2iNSP15#..N,R; NSP151..G201701-201702

BLACK,TRIM0#; BLACK,TRIM0#,2#

main90467-C0045-C0×2iNSP151..4D..(N,R); NSP151..4D..G201703-202008

BLACK,TRIM0#; BLACK,TRIM0#,2#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C0iNSP15#..N,R201311-201609

BLACK

main90467-08186-C3iNSP15#..N,R201610-201702

BLACK

main90467-C0045-C0iNSP150..4D201703-202004

BLACK

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-C0036×2iNSP151..G201311-201609

64271EPANEL, ROOM PARTITION

main64241-0D050×2iNSP15#..N,R; NSP151..4FC..N201311-201609

MOON ROOF-WITH

64271GBOARD, ROOM PARTITION, RH

main64271-0D050iNSP151..G201311-201609

64272BBOARD, ROOM PARTITION, LH

main64272-0D040iNSP151..G201311-201609

64274PAD, ROOM PARTITION TRIM, NO.1

main64275-0D050iNSP151..G201311-201511

main64275-0D051iNSP151..4D..G201609-202008

main64275-0D060-C1iNSP15#..N,R201311-201511

BLACK,TRIM0#,2#

main64275-0D061-C0iNSP151..4D202008

BLACK,TRIM1#,2#

main64275-0D061-C1iNSP150..4D201609-202004

BLACK,TRIM0#,2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D290-A0iNSP15#201311-201511

IVORY,TRIM0#

main64330-0D290-C0iNSP15#201311-201511

BLACK,TRIM2#

main64330-0D291-A0iNSP15#201512-201609

IVORY,TRIM0#

main64330-0D291-C0iNSP15#..N,R201512-201609

BLACK,TRIM2#

main64330-0D470-C0iNSP151..4D202008

BLACK,TRIM1#,2#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-C0×2iNSP15#201311-201609

BLACK

main90467-06020-C4×2iNSP15#..4D201808-202008

BLACK

main90467-C0029×2iNSP151..4D202107

64332COVER, PACKAGE TRAY TRIM

main64332-0D020-A0×2iNSP15#201311-201604

IVORY,TRIM0#

main64332-0D020-C0×2iNSP15#201311-201604

BLACK,TRIM2#

main64332-0D021-A0×2iNSP15#201605-201609

IVORY,TRIM0#

main64332-0D021-C0×2iNSP15#..N,R201605-201609

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-0D100iNSP15#201311-201609

main64334-0D220iNSP15#..4D201609-202008

64371ACLIP(FOR PACKAGE TRAY TRIM)

main90467-06020-A7×4iNSP15#201311-201609

IVORY,TRIM0#

main90467-06020-C0×4iNSP15#..N,R201311-201609

BLACK,TRIM2#

main90467-06020-C4×4iNSP150..4D201808-202004

BLACK,TRIM2#

main90467-C0029×4iNSP151..4D202107

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-0D080×3iNSP15#..N,R201311-201609

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D050-C0iNSP15#201311-201511

BLACK,TRIM0#,2#

main64719-0D051-C0iNSP151..4D202008

BLACK,TRIM1#,2#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C0×11iNSP15#201311-201609

BLACK,TRIM0#,2#

main90467-08186-C3×11iNSP15#..N,R; NSP151..G201701-201702

BLACK,TRIM0#; BLACK,TRIM0#,2#

main90467-C0045-C0×11iNSP150..4D201703-202004

BLACK,TRIM0#,2#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-0D090-C0iNSP15#201311-201511

BLACK,TRIM0#,2#

main64721-0D091-C0iNSP15#..N,R; NSP151..G201512-201609

BLACK,TRIM0#; BLACK,TRIM0#,2#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×10iNSP15#201311-201609

BLACK,TRIM0#,2#

main90467-08186-C3×10iNSP15#..N,R; NSP151..G201701-201702

BLACK,TRIM0#; BLACK,TRIM0#,2#

main90467-C0045-C0×10iNSP150..4D201703-202004

BLACK,TRIM0#,2#

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-0D090-C0iNSP15#201311-201511

BLACK,TRIM0#,2#

main64722-0D091-C0iNSP15#..N,R; NSP151..G201512-201609

BLACK,TRIM0#; BLACK,TRIM0#,2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D010×2iNSP15#201311-201609

64770COVER ASSY, SPARE WHEEL

main64770-0D160-C0iNSP15#201311-201511

BLACK,TRIM0#,2#

main64770-0D161-C0iNSP15#..N,R; NSP151..G201512-201609

BLACK,TRIM0#; BLACK,TRIM0#,2#

64777GCUSHION, SPARE WHEEL

main64777-0D101iNSP15#..4D201609-201810

main64777-0D150iNSP150..4D201810-202004

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D040×2iNSP15#201311-201609

90119C0184

main90119-C0184

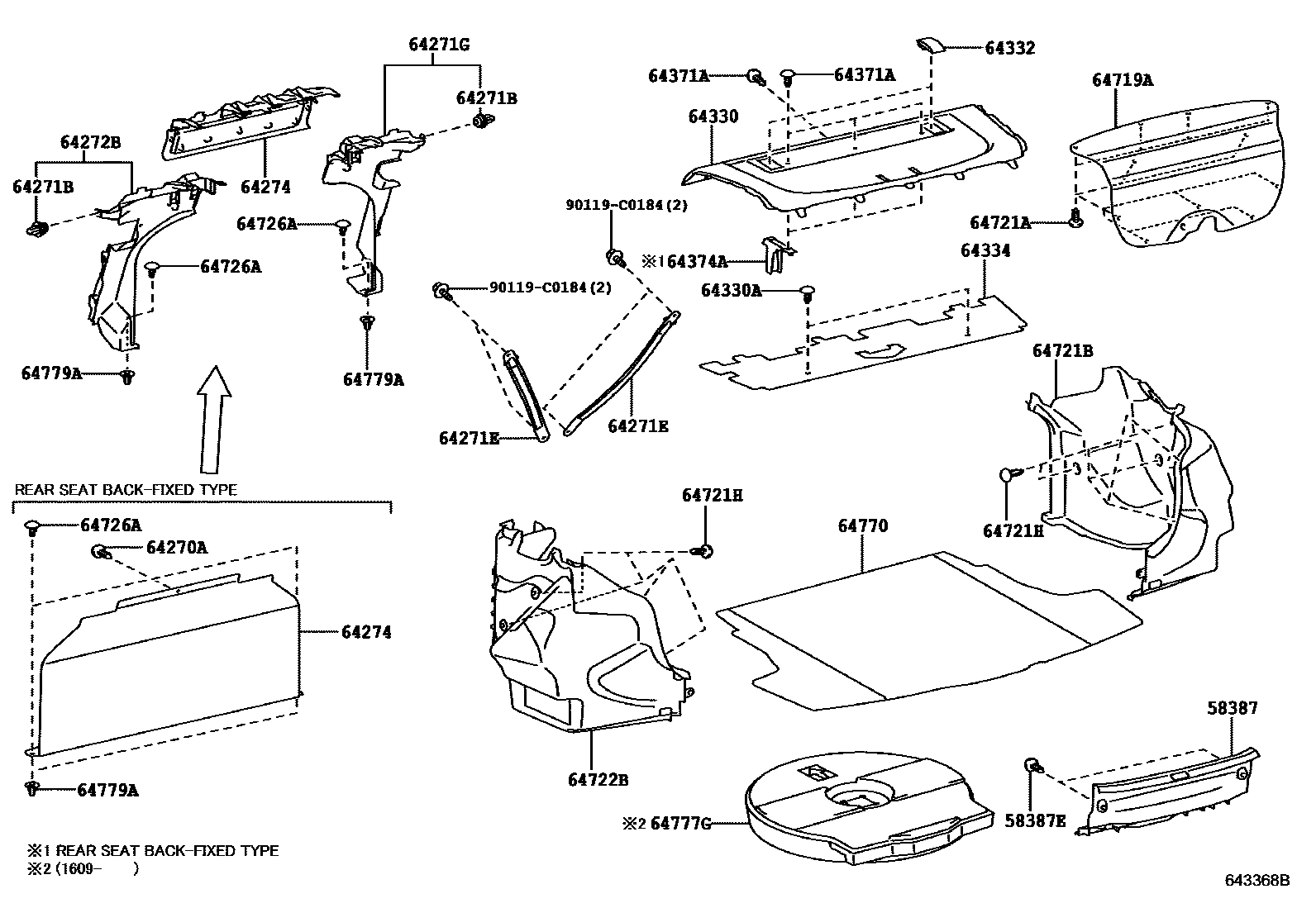

24 parts on this diagram · 1 diagram in section
