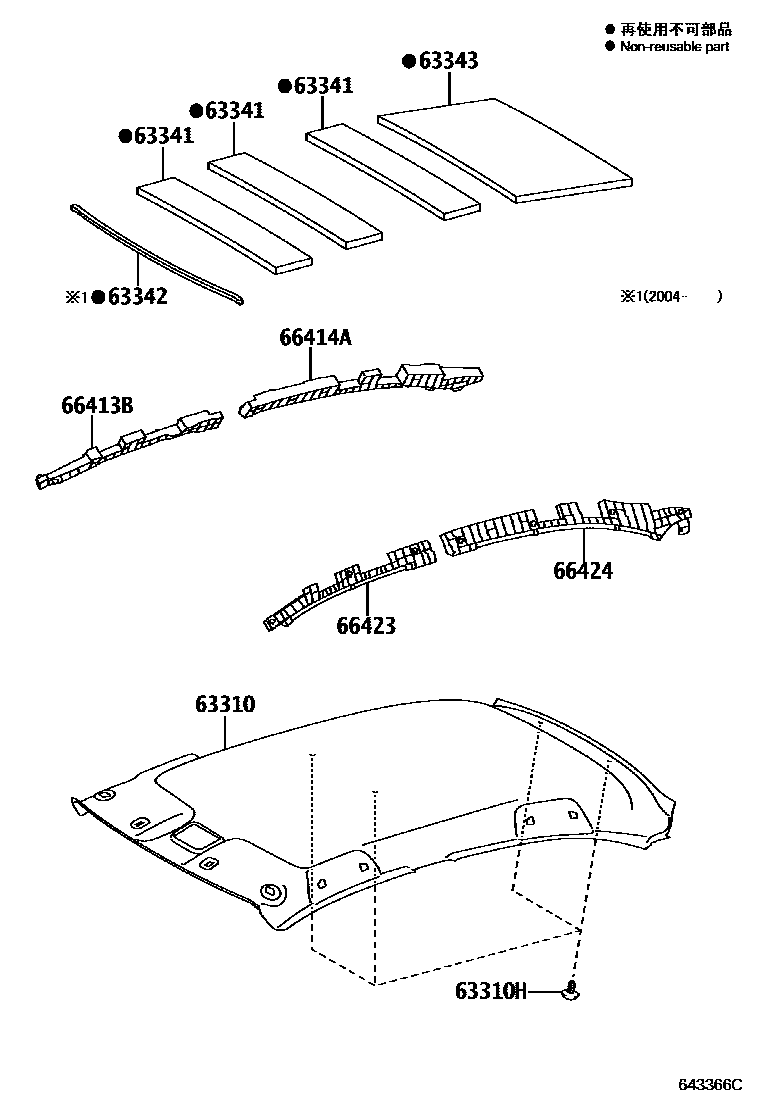

ROOF HEADLINING & SILENCER PAD

0001 1W/O(MOON ROOF) 0002 1W(MOON ROOF) 0003 1W/O(MOON ROOF) 0004 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63310-0D550-A0iNSP15#..N,R201311-201609

IVORY,TRIM0#

main63310-0D550-B0iNSP15#..N,R201311-201609

GRAY,TRIM2#

main63310-0D560-A0iNSP15#..N; NSP151..G201311-201609

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main63310-0D560-B0iNSP15#..N; NSP151..G201311-201609

GRAY,TRIM2#; MOON ROOF-WITH,GRAY,TRIM2#

main63310-0DA80-A0iNSP151..5D..(N,R)201703-202008

IVORY,TRIM0#

main63310-0DA80-B0iNSP151..5D202008

GRAY,TRIM1#,2#

main63310-0DA90-A0iNSP151..5D..G; NSP151..5D..N201703-202008

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main63310-0DA90-B0iNSP151..5D..G; NSP151..5D..N201703-202008

GRAY,TRIM2#; MOON ROOF-WITH,GRAY,TRIM2#

main63310-0DB50-A0iNSP150..4D201609-202004

IVORY,TRIM0#

main63310-0DB50-B0iNSP151..4D202008

GRAY,TRIM1#,2#

main63310-0DB60-A0iNSP151..4D..G; NSP151..4D..N201609-202008

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main63310-0DB60-B0iNSP151..4D..N202008

MOON ROOF PACKAGE,GRAY,TRIM1#,2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-C0016-A0×2iNSP15#..N; NSP15#..N,R; NSP151..G201311-201609

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main90467-C0016-B0×4iNSP15#..N; NSP15#..N,R; NSP151..G201311-201609

GRAY,TRIM2#; MOON ROOF-WITH,GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-0D380×5iNSP151..4D; NSP151..5D202008

main63341-0D440iNSP150..5D..5F201703-202004

63342PAD, ROOF SILENCER, NO.2

main63342-0D170iNSP151202008

63343PAD, ROOF SILENCER, NO.3

main63343-0D250iNSP15#..N,R201311-201609

main63343-0D310×2iNSP151..5D..5F201703-202008

main63343-0D350iNSP151..4D202008

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0D210iNSP15#201311-201609

66414ASPACER, SIDE RAIL, REAR RH

main66414-0D210iNSP151..4D201609-202008

main66414-0D360iNSP151..5D201703-202008

66423SPACER, SIDE RAIL, FRONT LH

main66423-0D200iNSP150201609-202004

66424SPACER, SIDE RAIL, REAR LH

main66424-0D210iNSP150..4D201609-202004

main66424-0D360iNSP150..5D201703-202004

9 parts on this diagram · 4 diagrams in section
